Electric power steering torque sensor, basic function - GF46.35-P-2002A
Model all (CAR)

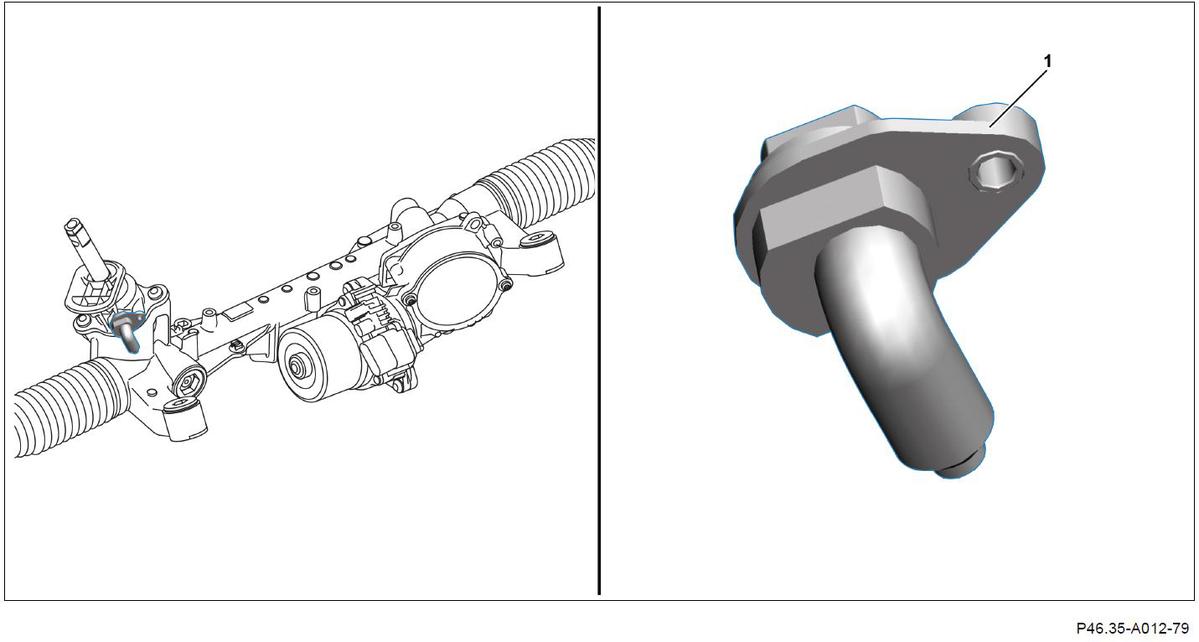

Example illustration
(1) Electric power steering torque sensor
Overview
This document contains information on:
- General
General
A torque is generated in the drag link by turning the steering wheel. The torque sensor records the torque. The electric power steering control unit receives directs signals from the torque sensor.
