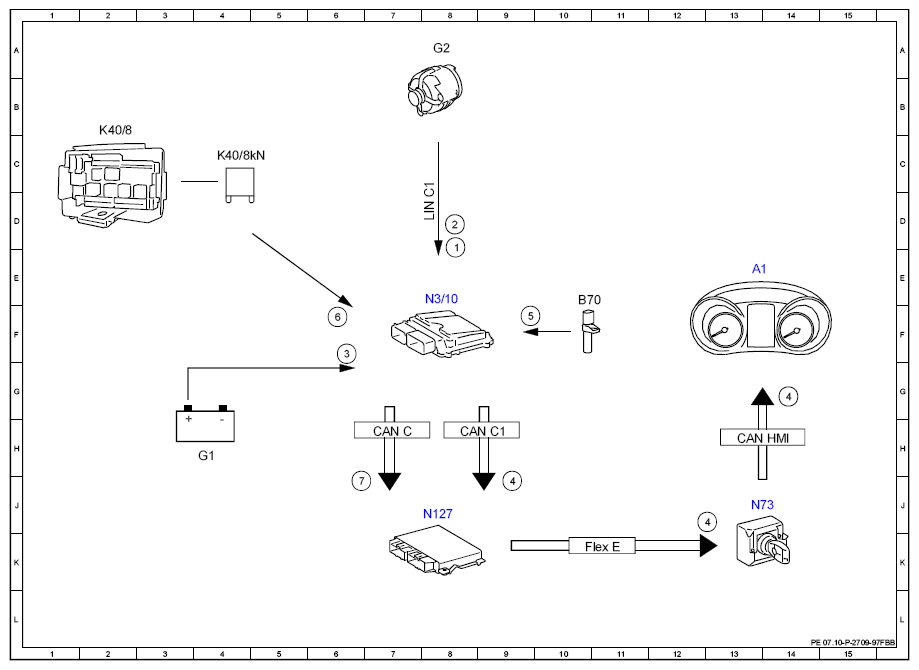

Electrical Function Schematic, Alternator Interface - PE07.10-P-2709-97FBB
Engine 276.8 in model 205, 253
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, status | 8E |
| 2 | Circuit 61, status | 8D |
| 3 | Circuit 30, status | 6F |
| 4 | Instrument cluster, message | 14G |
| 4 | Instrument cluster, message | 13J |
| 4 | Instrument cluster, message | 9J |
| 5 | Engine speed, signal | 9F |
| 6 | Circuit 87, status | 6F |
| 7 | Engine running, signal | 6J |
| A1 | Instrument cluster | 13E |
| B70 | Crankshaft Hall sensor | 10E |
| CAN C | Engine CAN | 7H |
| CAN C1 | Drive train CAN | 8H |
| CAN HMI | User interface CAN | 13H |
| Flex E | Chassis FlexRay | 11K |
| G1 | On-board electrical system battery | 4H |
| G2 | Alternator | 8A |
| K40/8 | Engine fuse and relay module | 2B |
| K40/8kN | Circuit 87M relay | 4C |
| LIN C1 | Drive train LIN | 8D |
| N127 | Drivetrain control unit | 8J |
| N3/10 | ME-SFI [ME] control unit | 8E |
| N73 | Electronic ignition switch control unit | 13J |
