Overview Of System Components For Windshield Wiper System - GF82.30-P-9996GN

MODEL 166 as of model year 2016

MODEL 292

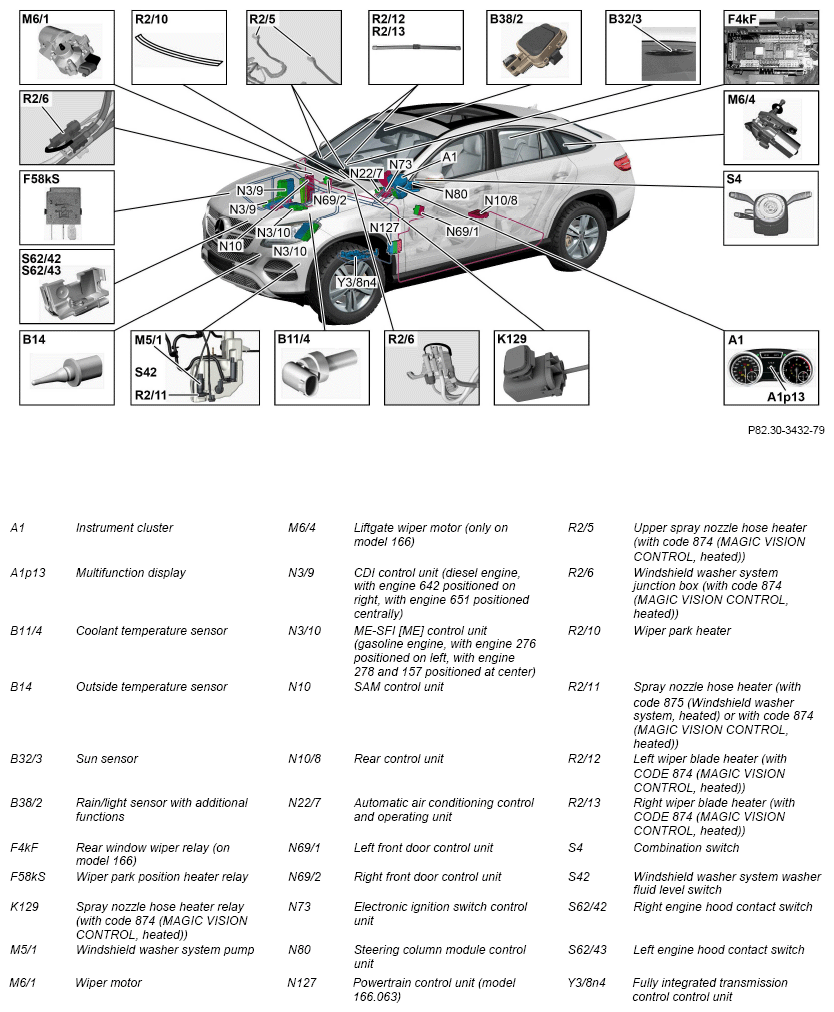

Shown on model 292

	Component description for instrument cluster	A1	GF54.30-P-6000GN
	Rain/light sensor with additional functions, component description	B38/2	GF54.21-P-6005GN
	Component description for CDI control unit	Model 166 with engine 642.8 as of model year 2016 Model 292 with engine 642.8 N3/9	GF07.16-P-6000OGF
		Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 N3/9	GF07.16-P-6000OLF
	Component description for ME-SFI (ME) control unit	Model 166 (except 166.063) with engine 276.8 as of model year 2016 Model 292 with engine 276.8 N3/10	GF07.61-P-6000MMX
		Model 166.063 with engine 276.8 as of model year 2016 N3/10	GF07.61-P-6000MMM
		Model 166 with engine 276.9 as of model year 2016 N3/10	GF07.61-P-6000MNG
		Model 166 with engine 157.9, 278.9 as of model year 2016 Model 292 with engine 157.9, 278.9 N3/10	GF07.61-P-6000MMY
	SAM control unit, component description	N10	GF54.21-P-4157GN
	Rear control unit, component description	N10/8	GF54.21-P-4134GN
	Component description for climate control and operating unit	N22/7	GF83.40-P-3002GN
	Component description for left front door control unit	N69/1	GF72.29-P-6001GN
	Component description for right front door control unit	N69/2	GF72.29-P-6009GN
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001GN
	Component description for steering column tube module control unit	N80	GF54.21-P-6051GN
	Drivetrain control unit, component description	Model 166.063 with engine 276.8 as of model year 2016 N127	GF54.21-P-2141GN
	Component description for fully integrated transmission control unit	Model 166 with transmission 725.0 as of model year 2016 Y3/8n4	GF27.60-P-5165ANF
		Model 292 with transmission 725.0 Y3/8n4	GF27.60-P-5165ANJ
		Model 166 with transmission 724.204 as of model year 2016 Y3/8n4	GF27.60-P-5165GRH
	Table of contents for function description of windshield wiper system		GF82.30-P-0997GN
