Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996GR
MODEL 166 up to model year 2016

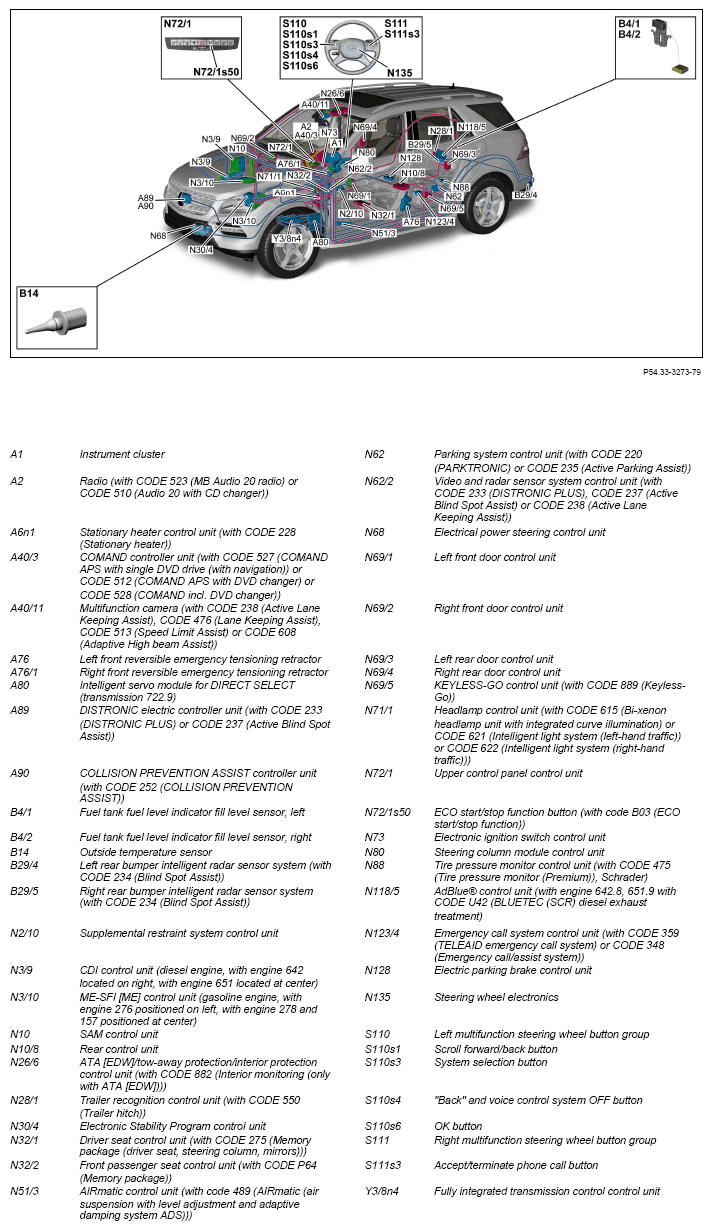

Shows model 166.0

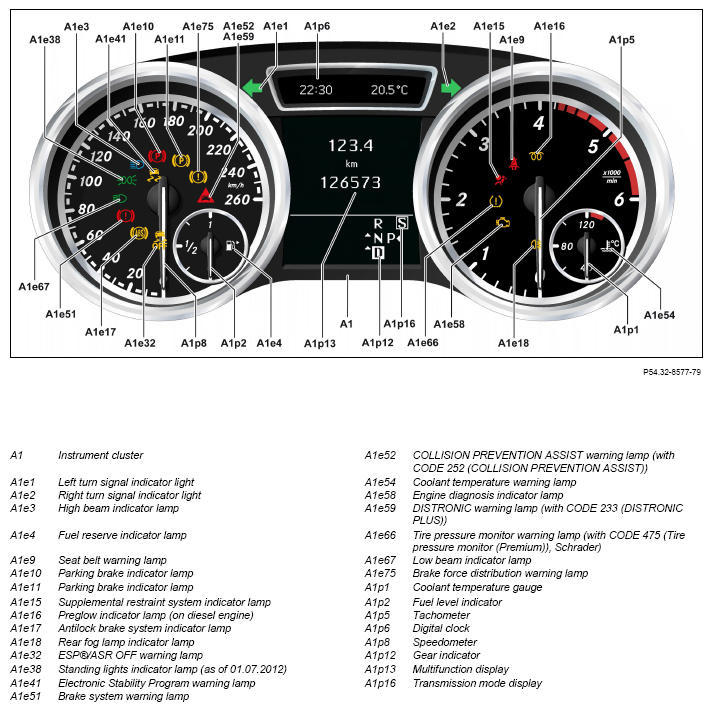

Shown on model 166.004
The following components integrated into the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for the radio | MODEL 166 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 166 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 | GF82.60-P-3122GRA | |
| Stationary heater control unit, component description | MODEL 166 up to model year 2016 with CODE 228 (Auxiliary heater) A6n1 | GF83.70-P-4066GR | |
| Component description for COMAND controller unit | MODEL 166 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 166 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 166 up to model year 2016 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136GR | |
| Component description for multifunction camera | MODEL 166 up to model year 2016 with CODE 238 (Active lane keeping Assist) MODEL 166 up to model year 2016 with CODE 476 (Lane keeping assist) MODEL 166 up to model year 2016 with CODE 513 (Speed Limit Assist) MODEL 166 up to model year 2016 with CODE 608 (Adaptive Highbeam Assist) A40/11 |
GF54.21-P-3300GR | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020GR | |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 A80 | GF27.19-P-4020AHA | |
| Component description for DISTRONIC electric controller unit | MODEL 166 up to model year 2016 with CODE 233 (DISTRONIC PLUS) MODEL 166 up to model year 2016 with CODE 237 (Active Blind Spot Assist) A89 | GF30.30-P-3213GR | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 166 up to model year 2016 with CODE 252 (COLLISION PREVENTION ASSIST) A90 | GF30.30-P-3214GR | |
| Component description for intelligent radar sensor control unit | MODEL 166 up to model year 2016 with CODE 234 (Blind Spot Monitoring) B29/4, B29/5 | GF30.30-P-3305GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9 | GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 N3/9 | GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 N3/9 | GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 | GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 N3/10 | GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GR | |
| ATA/tow-away protection/interior protection control unit, component description | MODEL 166 up to model year 2016 with CODE 882 (Interior monitoring (with ATA [EDW] only)) N26/6 | GF80.50-P-4131GR | |
| Component description for trailer recognition control unit | MODEL 166 up to model year 2016 with CODE 550 (Trailer coupling) N28/1 | GF31.19-P-4050GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Component description for driver seat control unit | MODEL 166 up to model year 2016 with CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 | GF91.29-P-5231GR | |
| MODEL 166 up to model year 2016 without CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 | GF91.29-P-5231GRA | ||
| Component description for front passenger seat control unit | MODEL 166 up to model year 2016 with CODE P64 (Memory package) N32/2 | GF91.29-P-5241GR | |
| MODEL 166 up to model year 2016 without CODE P64 (Memory package) N32/2 | GF91.29-P-5241GRA | ||
| AIRmatic control unit, component description | MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 | GF32.22-P-5109GR | |
| Parking system control unit component description | MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) N62 | GF54.65-P-5002GR | |
| Component description for video and radar sensor system control unit | MODEL 166 up to model year 2016 with CODE 233 (DISTRONIC PLUS) MODEL 166 up to model year 2016 with CODE 237 (Active Blind Spot Assist) MODEL 166 up to model year 2016 with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304GR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GR | |
| Component description for KEYLESS-GO control unit | MODEL 166 up to model year 2016 with CODE 889 (Keyless Go) N69/5 | GF80.61-P-4204GR | |
| Headlamp control unit, component description | MODEL 166 up to model year 2016 with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) MODEL 166 up to model year 2016 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 166 up to model year 2016 with CODE 622 (Intelligent Light System (right-hand traffic)) N71/1 |
GF82.10-P-2020GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Component description for tire pressure monitor control unit | MODEL 166 up to model year 2016 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 | GF40.15-P-5124GR | |
| Component description for exhaust aftertreatment control unit | MODEL 166 with ENGINE 642.826, 651.960 up to model year 2016 with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) N118/5 | GF14.40-P-3030OLG | |
| Component description for emergency call system control unit | MODEL 166 up to model year 2016 with CODE 359 (TELE AID emergency call system) without CODE 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212GRU | |
| MODEL 166 up to model year 2016 with CODE 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212GRV | ||
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GR | |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Y3/8n4 | GF27.60-P-5165AHA | |
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997GR |
