Remove/Install Distronic Sensor (DTR) - AR30.30-P-1010GQ

MODEL 166.0 with CODE 233 (DISTRONIC PLUS) except CODE 239 (DISTRONIC PLUS)

MODEL 292 with CODE 233 (DISTRONIC PLUS) except CODE 239 (DISTRONIC PLUS)

Shown on MODEL 292

	Notes on preventing damage to electronic components due to a magnetic tool		AH54.00-P-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (at least 2 m)
2.1	Remove radiator trim	Model 166.0 up to model year 2016	AR88.40-P-4001GQ
2.2	Remove Mercedes star	Models 166.0, 292
		Model 166.0 as of model year 2016	AR88.40-P-4050NKB
		Model 292	AR88.40-P-4050GQC

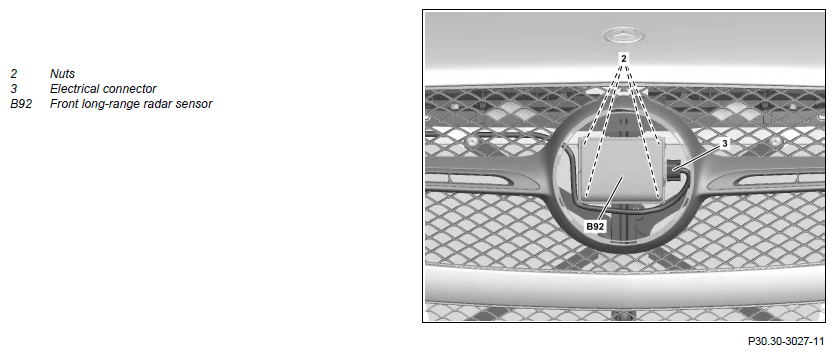

3	Disconnect electrical connector (3) from front long range radar sensor (B92)
4	Unscrew nuts (2) and remove front long range radar sensor (B92)
5	Install in the reverse order
	Initial startup
6	Perform commissioning of front long range radar sensor (B92) using the vehicle diagnosis system	When replacing the front long range radar sensor (B92). When replacing the steering column tube module control unit (N80) or the yaw rate sensor for lateral and longitudinal acceleration (B24/15).	AD00.00-P-2000-04A
7	Calibrate front long range radar sensor (B92) using the vehicle diagnosis system	When replacing the front long range radar sensor (B92). Removal and installation of the front long range radar sensor (B92). Alterations of the bracket. After accident repair in front area or alteration of the camber, track width, caster or vehicle level at the front or rear axle.
			AD00.00-P-2000-04A
