Component Description For Sliding Roof Control Module - GF77.20-P-4108GR
MODEL 166 up to model year 2016 with CODE 414 (Power glass tilting/sliding roof)
Shows model 166.0
Location

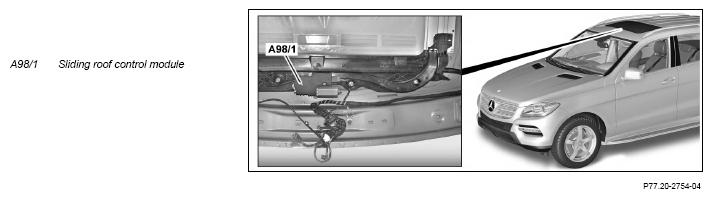

The sliding roof control module is located at the front left on the frame of the sliding roof.
Task
The sliding roof control module has the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors and signals
The input factors are read in via the following connections:
- Direct line (internal)
- Interior CAN (CAN B)
Direct line (internal)
The signals from the following sensors are read in by the sliding roof control module via a direct line:
- Hall sensor 1, sliding roof (A98/1b1)
- Hall sensor 2, sliding roof (A98/1b2)
Interior CAN
The signals are read in by the sliding roof control module via the interior CAN.
The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The sliding roof control module actuates the sliding roof motor (A98/1m1) internally via a direct line.
| Wiring diagram for sliding roof control module | PE77.20-P-2103-97NAA |
