Remove/Install Components For Exhaust System - AR49.10-P-7100GQA

MODEL 166 with ENGINE 276

MODEL 166 with ENGINE 278

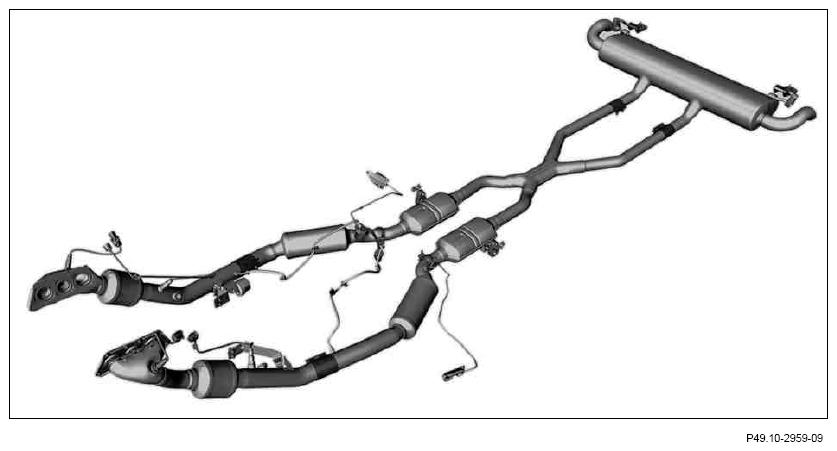

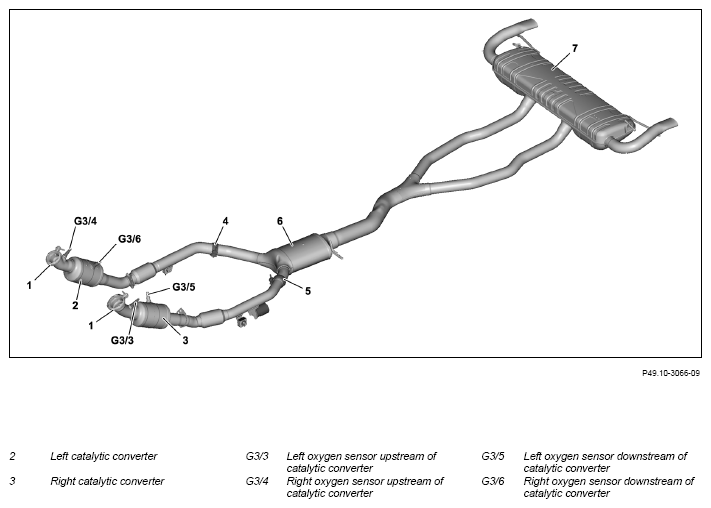

Shown on exhaust system for engine 276.8

Shown on exhaust system for engine 276.9

	Remove/install/
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Lift vehicle on vehicle lift		AR00.60-P-1000GZ
2	Remove underfloor paneling concerned	If necessary : Only install underfloor paneling after the engine test run and leak test.	AR61.30-P-1001GQ
3	Disconnect electrical connection for the respective oxygen sensors (G3/3, G3/4, G3/5, G3/6) and expose feed lines, if necessary.	Model 166 with engine 276.8	AR07.52-P-5303GQC
		Model 166 with engine 276.9	AR07.52-P-5303GQ
		Model 166 with engine 278	AR07.52-P-5303MLJ
4	Disconnect electrical connections on NOx sensors and expose feed lines	Model 166 with engine 276.9	AR07.70-P-0001GQ
5	Disconnect electrical connection for temperature sensors for NOx storage catalytic converters and expose feed lines	Model 166 with engine 276.9	AR07.70-P-0002GQ
6.1	Remove exhaust manifold with catalytic converter	Model 166 with engine 276.9	AR14.10-P-4095GQ
6.2	Remove/install ATL with exhaust manifold	Model 166 with engine 276.8, 278	AR09.40-P-6025GQC
		Model 166 with engine 276.8 Model 166 with engine 278	AR09.40-P-6025MLJ
7	Detach EGR lines	Model 166 with engine 276.9 Nut/bolt, profile clamp for exhaust gas recirculation pipe/catalytic converter to exhaust system/exhaust gas turbocharger	*BA49.10-P-1004-01AK
8	Remove cross strut	If necessary	AR22.10-P-1180GQ
9	Remove left (2) or right CAT (3)	Model 166 with engine 276.8	AR49.10-P-5500GQC
10	Loosen corresponding components of exhaust system at connecting points and remove	: Align components for the exhaust system before firmly tightening screw connections free of tension. : Apply lubricating paste to the decoupling elements. Model 166 with engine 278 Bolt/nut, mount for rear exhaust system bracket	*BA49.10-P-1018-01AK
		Model 166 with engine 278 Bolt, cross connection left rear to right rear	*BA49.10-P-1017-01AK
		Model 166 with engine 278 Nut, exhaust line to turbocharger	*BA49.10-P-1016-01AK
		Model 166 with engine 278 Bolt, catalytic converter flange to exhaust line	*BA49.10-P-1015-01AK
		Model 166 with engine 276 Nut, exhaust system (exhaust manifold) flange connection to cylinder head	*BA49.10-P-1001-01AK
		Model 166 with engine 276 Nut/bolt, profile clamp for exhaust gas recirculation pipe/catalytic converter to exhaust system/exhaust gas turbocharger	*BA49.10-P-1004-01AK
		Model 166 with engine 276 Bolt, vibration damper to exhaust system	*BA49.10-P-1005-01AK
		Bolt, center exhaust rubber mount bracket to body	*BA49.10-P-1010-01AK
		Model 166 with engine 278 Bolt, exhaust system clamp to catalytic converter	*BA49.10-P-1012-01AK
		Model 166 with engine 276 Nut, exhaust system clamp to catalytic converter	*BA49.10-P-1013-01AK
		Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
	Clean
11	Remove combustion and corrosion residue at separating points
	Check
12	Check decoupling elements	Engine 276, if necessary Check for wear and damage, and replace if necessary. Nut, exhaust rubber mount to exhaust system/centering plate/strut	*BA49.10-P-1006-01AK
13	Install in the reverse order
	Check
14	Check installation position and for unobstructed movement of all components of the exhaust system
15	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check exhaust system for leaktightness	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
