Remove/Install Coolant Temperature Sensor - AR15.60-P-2712GQ
ENGINE 276.8 in MODEL 166, 292
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove lower engine cover | AR61.30-P-1001GQ | |
| 2 | Drain off coolant | AR20.00-P-1142GQ | |
| 3 | Detach battery ground line | AR54.10-P-0003GZ | |
| 4 | Remove ME-SFI [ME] control unit | AR07.08-P-7008GQC | |
| 5 | Remove left-hand air filter housing | AR09.10-P-1150GQC | |
| 6 | Remove left soundproofing on injectors | ||

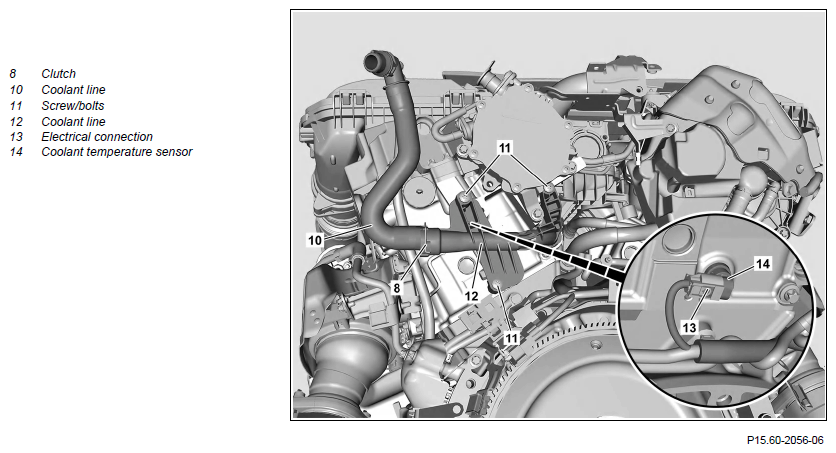

| 7 | Detach coolant hose at bulkhead (4) | AR20.20-P-7441-01RQ | |

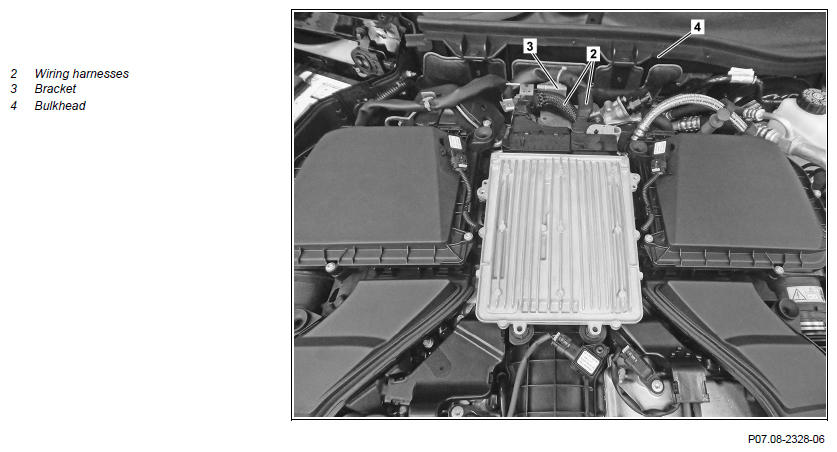

| 8 | Unclip wiring harnesses (2) at bracket (3) | ||
| 9 | Remove bracket (3) | *BA07.08-P-1004-01A | |
| 10 | Remove center section of the bulkhead (4) | ||
| 11 | Remove vacuum pump | AR43.05-P-1320EL | |
| 12 | Open connector (8) | AR20.20-P-7441-01RQ | |
| 13 | Remove screw/bolt, coolant pipe to guide tube | *BA20.10-P-1012-01AA | |
| 14 | Remove coolant line (10) together with coolant hose | ||
| 15 | Remove screws/bolts (11) | *BA20.10-P-1006-01AA | |
| 16 | Remove coolant line (12) | ||
| 17 | Release and disconnect electrical connection (13) | ||
| 18 | Release and disconnect coolant temperature sensor (14) | ||
| 19 | Install in the reverse order | ||
| 20 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform an engine test run and check engine cooling system for leaktightness |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
CONTROL UNIT
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.08-P-1004-01A | Bolt, control unit holder to cylinder head/cylinder head cover | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA20.10-P-1006-01AA | Bolt, heater feed to cylinder head | Nm | 9 |
COOLANT PUMP, COOLANT THERMOSTAT
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA20.10-P-1012-01AA | Bolt, coolant pipe to guide tube | M6 | Nm | 9 |
