Overview Of System Components For Common Rail Diesel Injection (CDI) - GF07.16-P-9997OGF
ENGINE 642.8 in MODEL 166 as of model year 2016
ENGINE 642.8 in MODEL 292
Shown on model 292.3

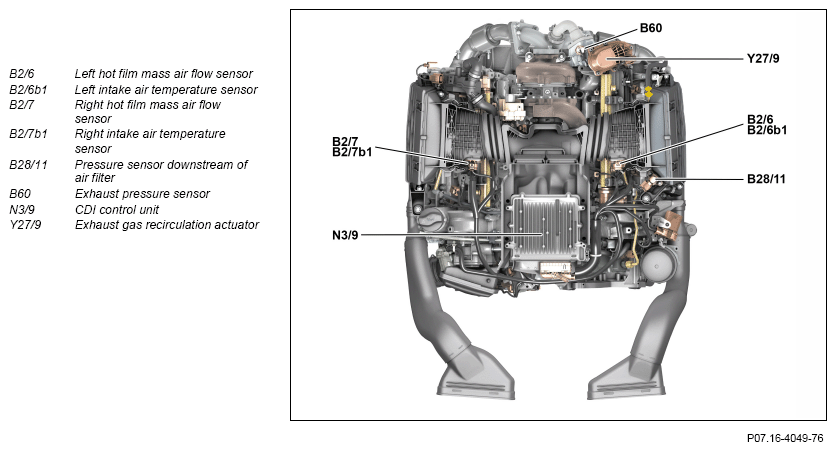

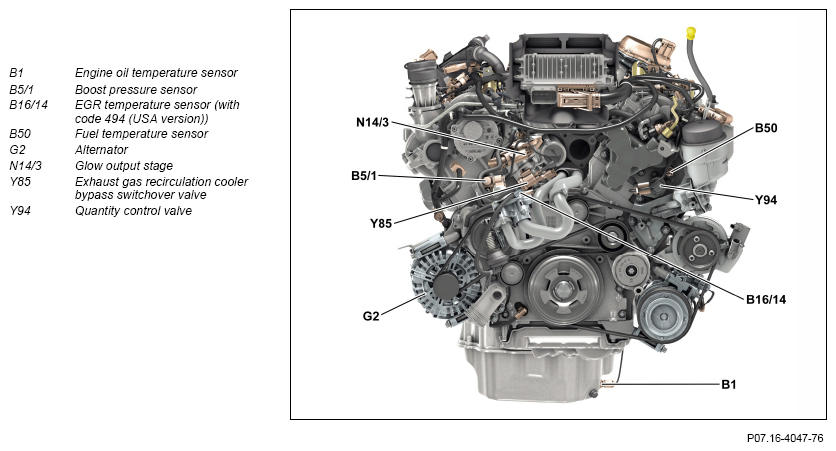

View of engine from above at front

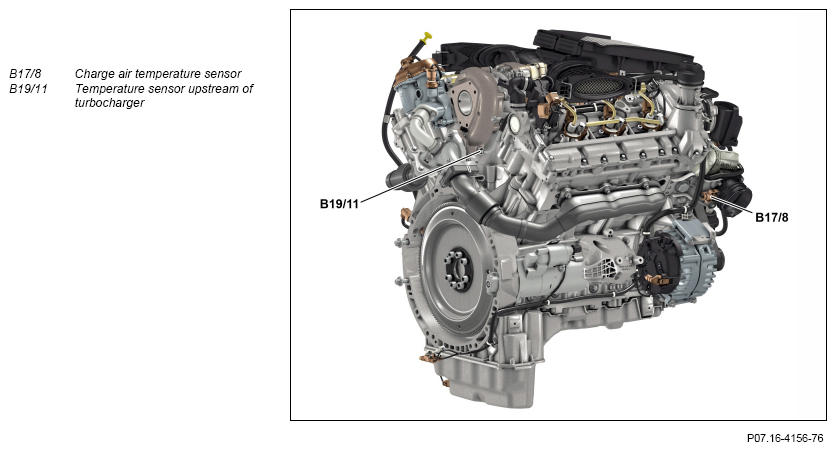

Engine viewed from top right

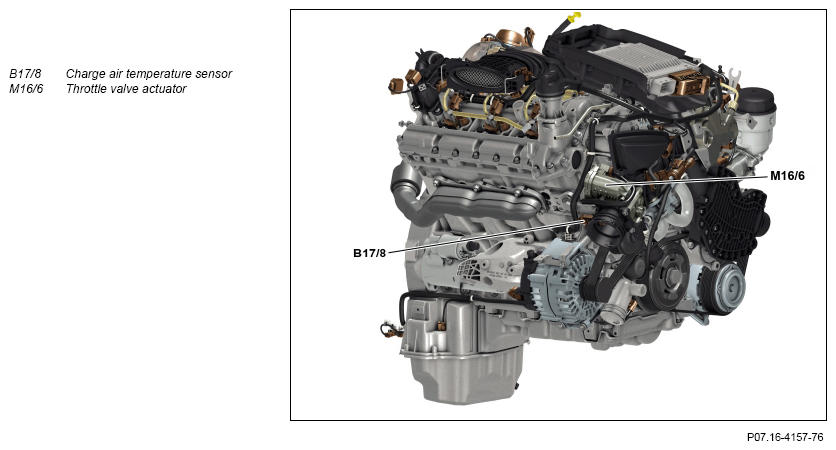

Engine front view

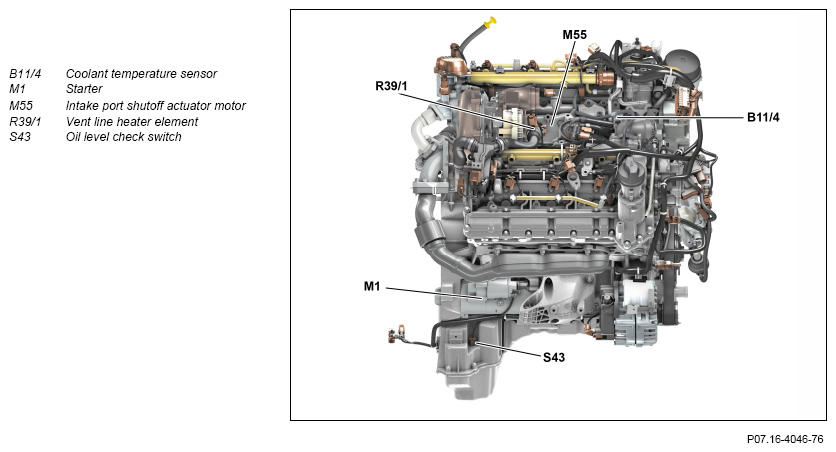

View of engine from upper left

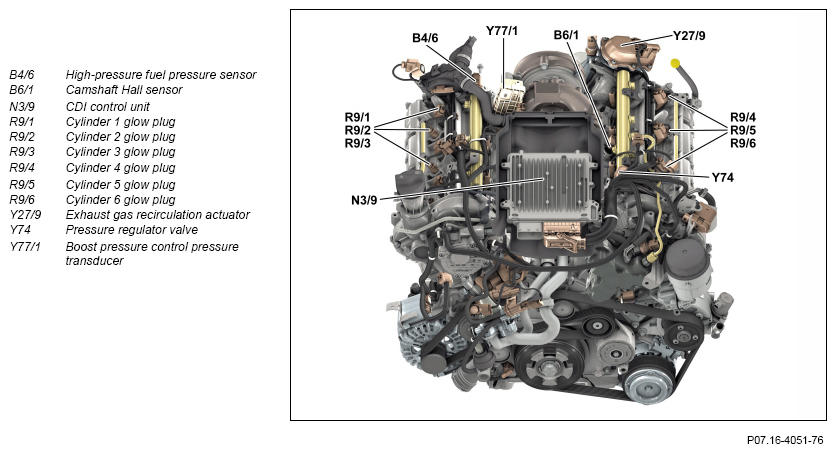

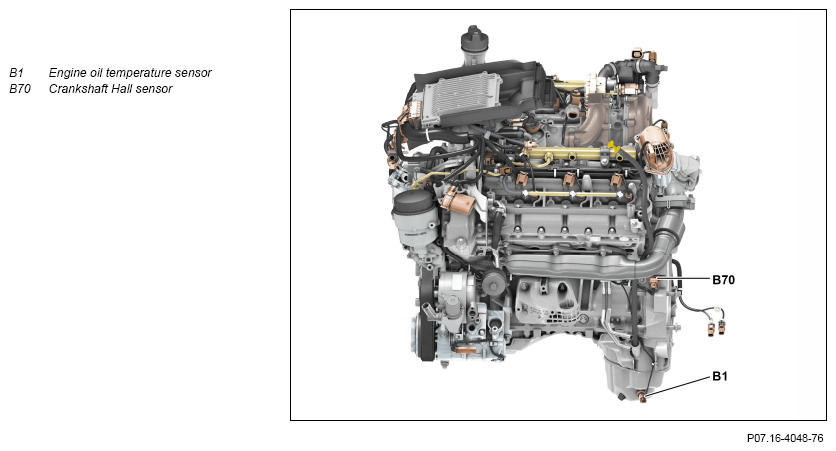

Top view of the engine
View of engine from front right
View of engine from the rear right

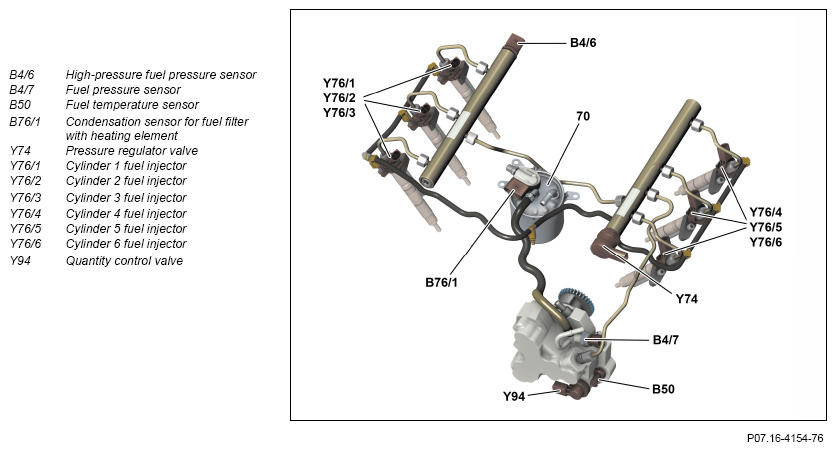

Partial view of fuel system

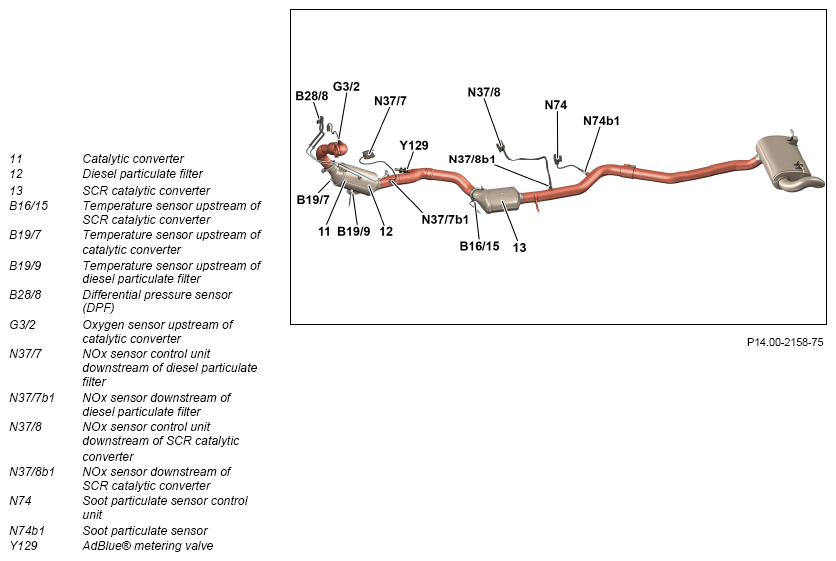

Exhaust system for model 166 (with code U77 (BlueTEC (SCR) diesel exhaust gas cleaning) and code 460 (Canada version) or code 494 (USA version) or as of model year 2018 with code 927 (Emissions standard EU6) or code 935 (SULEV technology exhaust gas cleaning))

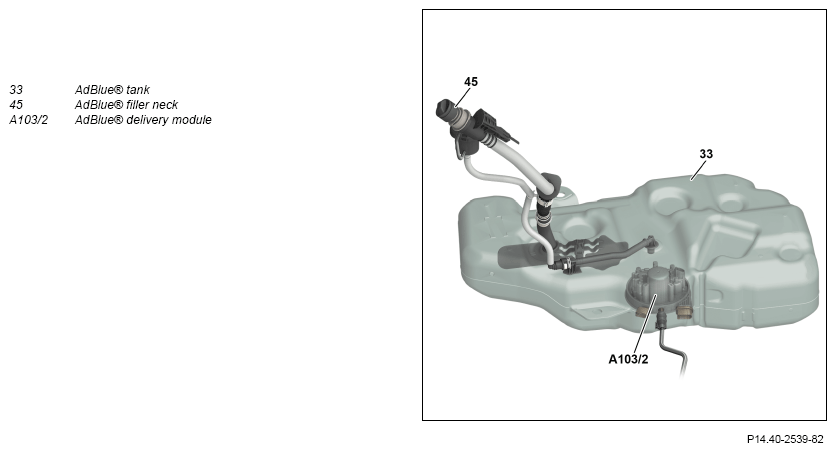

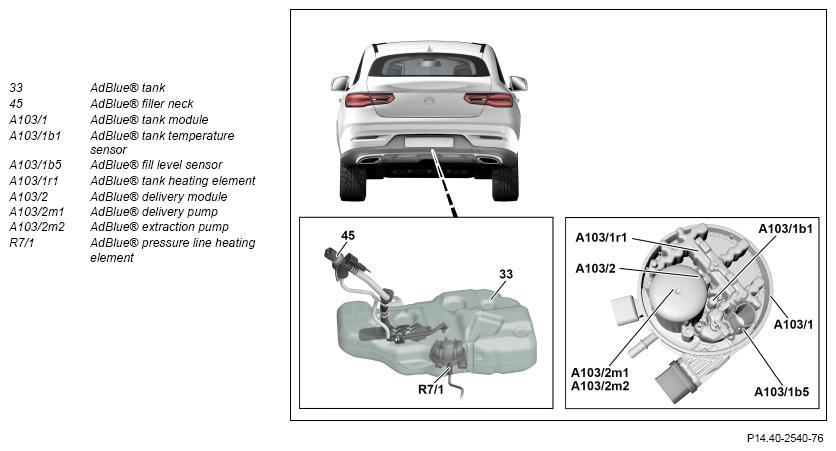

Phantom view of AdBlue® container (with CODE U77 (BlueTEC (SCR) diesel exhaust treatment))

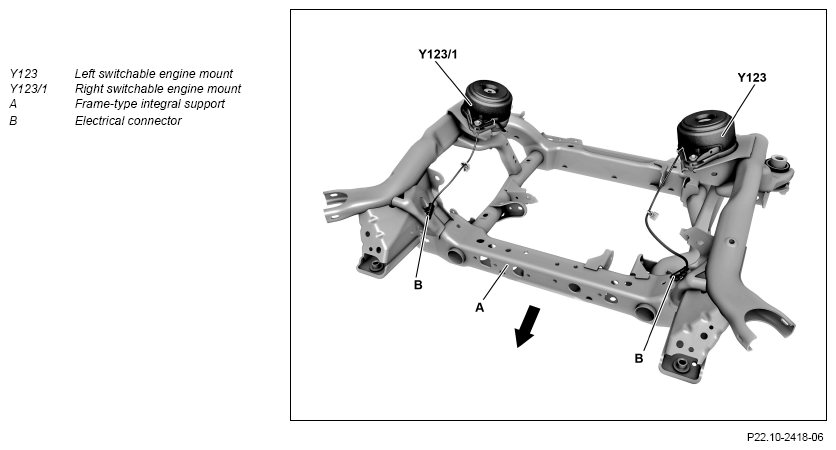

View of integral carrier from the front
Shown on model 292.3 with code U77 (BlueTEC (SCR) diesel exhaust gas cleaning)

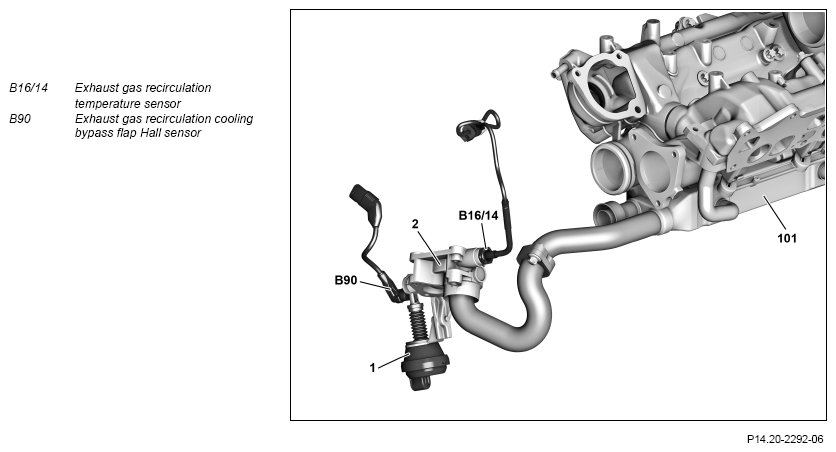

Partial view of exhaust gas recirculation tract (with code 494 (USA version))
Top view of the engine

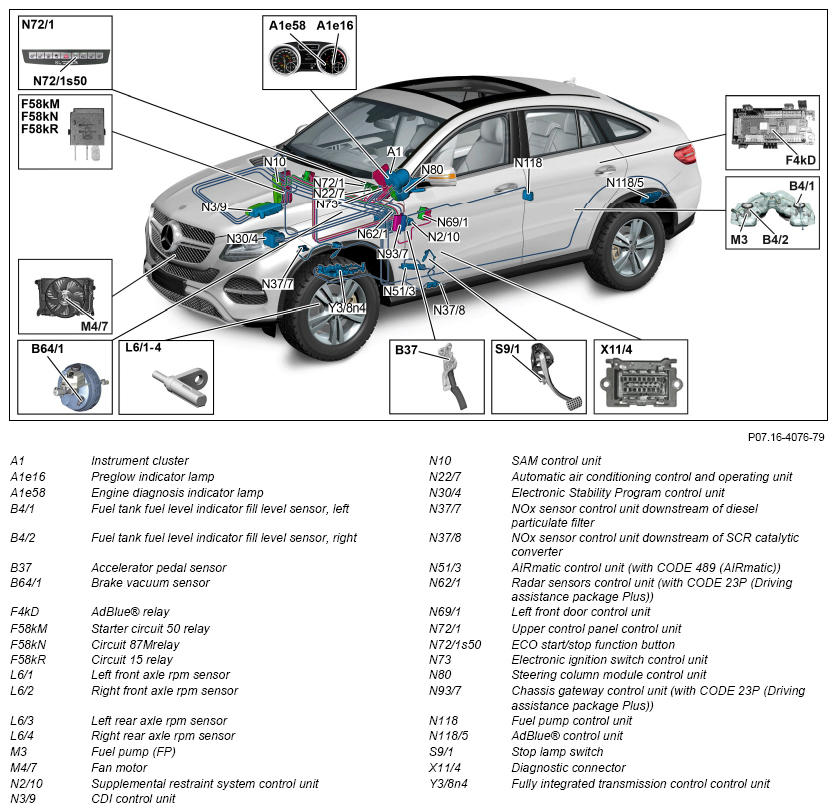

| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | N3/9 | GF07.16-P-6000OGF | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for Electronic Stability Program control unit | Model 166 (except 166.063) with engine 642.8 as of model year 2016 Model 292 with engine 642.8 N30/4 |
GF42.45-P-5119GN | |
| Component description for NOx sensor control unit | N37/7, N37/8 | GF14.40-P-3024OGF | |
| AIRMATIC control unit, component description | Model 166 with engine 642.8 as of model year 2016 with code 489 (AIRMATIC) Model 292 with engine 642.8 with code 489 (AIRMATIC) N51/3 |
GF32.22-P-5110GN | |
| Component description for radar sensors control unit | Model 166 with engine 642.8 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with engine 642.8 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Soot particulate sensor control unit, component description | Engine 642.8 in model 166 as of model year 2016 with code 460 (Canada version) with code U77 (Diesel Emission control BLUETEC (SCR)) Engine 642.8 in model 166 as of model year 2016 with code 494 (US version) with code U77 (Diesel Emission control BLUETEC (SCR)) Engine 642.8 in model 166 as of model year 2018 with code 927 (EU6 emissions standard) Engine 642.8 in model 292 as of model year 2018 with code 927 (EU6 emissions standard) Engine 642.8 in model 292 with code 460 (Canada version) with code U77 (Diesel Emission control BLUETEC (SCR)) Engine 642.8 in model 292 with code 494 (US version) with code U77 (Diesel Emission control BLUETEC (SCR)) N74 |
GF14.40-P-2020OGF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for chassis gateway control unit | Engine 642.8 in model 166 as of model year 2016 with code 23P (Driving Assistance package) Engine 642.8 in model 292 with code 23P (Driving Assistance package) N93/7 |
GF54.21-P-1010GN | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001OGF | |
| Component description for exhaust aftertreatment control unit | N118/5 | GF14.40-P-3030OGF | |
| Component description for fully integrated transmission control unit | Transmission 725.0 in model 166 with engine 642.8 as of model year 2016 Y38n4 |
GF27.60-P-5165ANF | |
| Component description for fully integrated transmission control unit | Transmission 725.0 in model 292 with engine 642.8 Y38n4 |
GF27.60-P-5165ANJ | |
| Table of contents for function description of common rail diesel injection (CDI) | GF07.16-P-0999OGF |
