Overview Of System Components For Common Rail Diesel Injection (CDI) - GF07.16-P-9997OLL
ENGINE 651.9 as of 3/1/13 in MODEL 166 up to model year 2016
Shows model 166.0

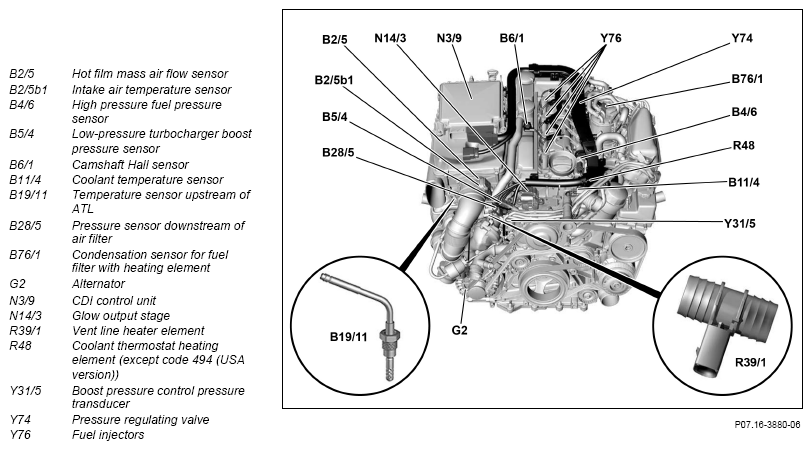

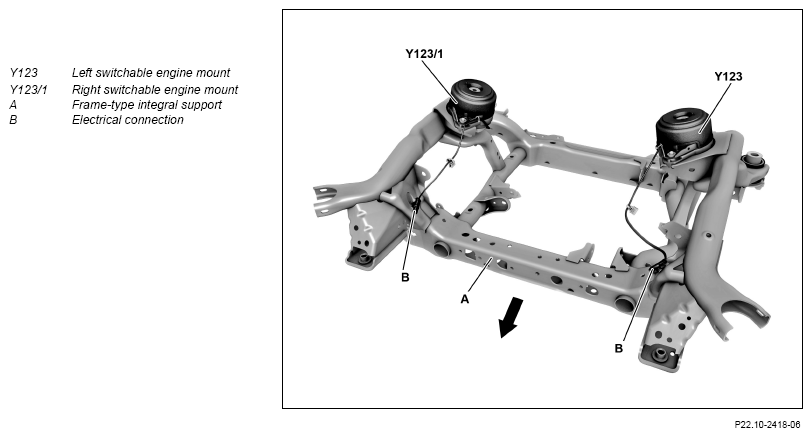

View of engine from rear left

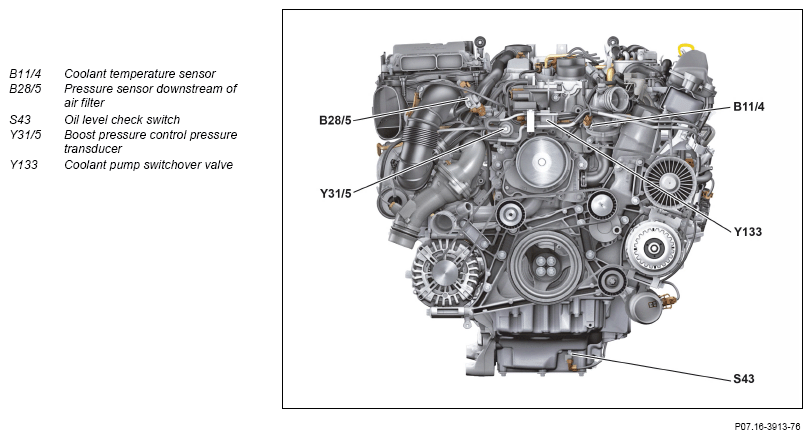

View of engine from left

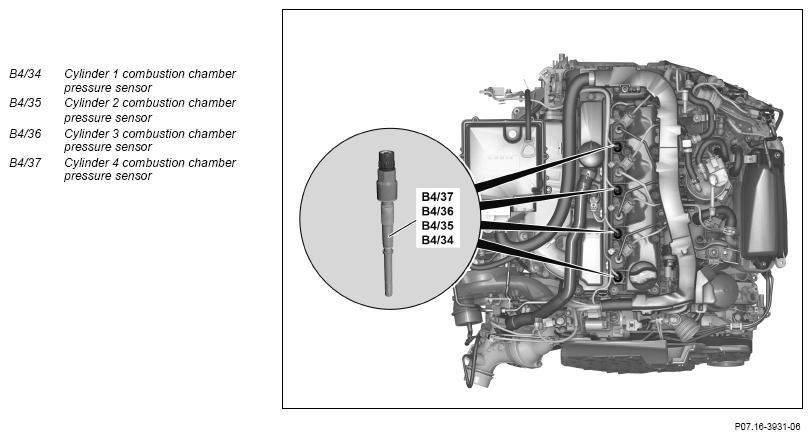

View of the engine from the front
View of the engine from the front
View of engine from rear left

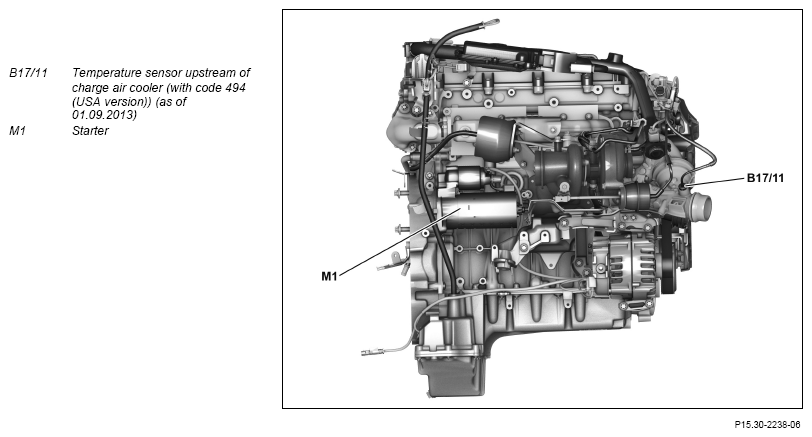

View of engine from the rear left (with code 494 (USA version)) (as of 01.09.2013)

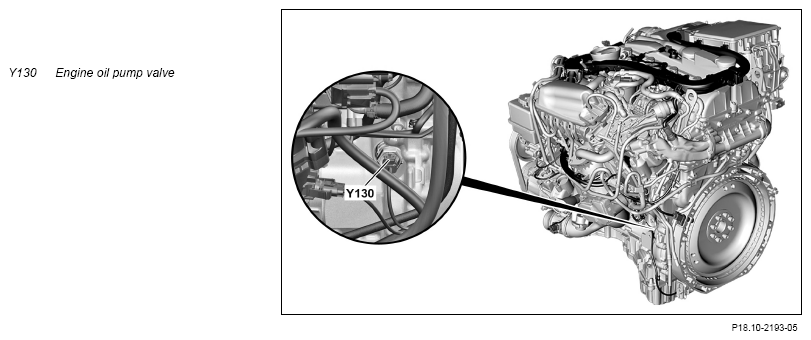

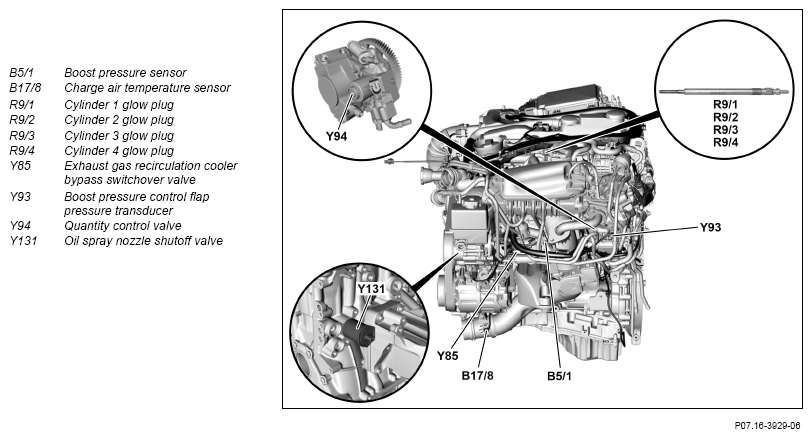

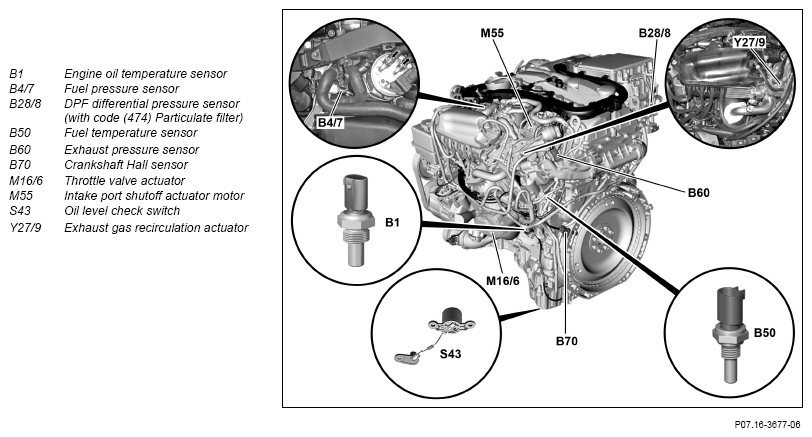

View of engine from right
View of the engine from above

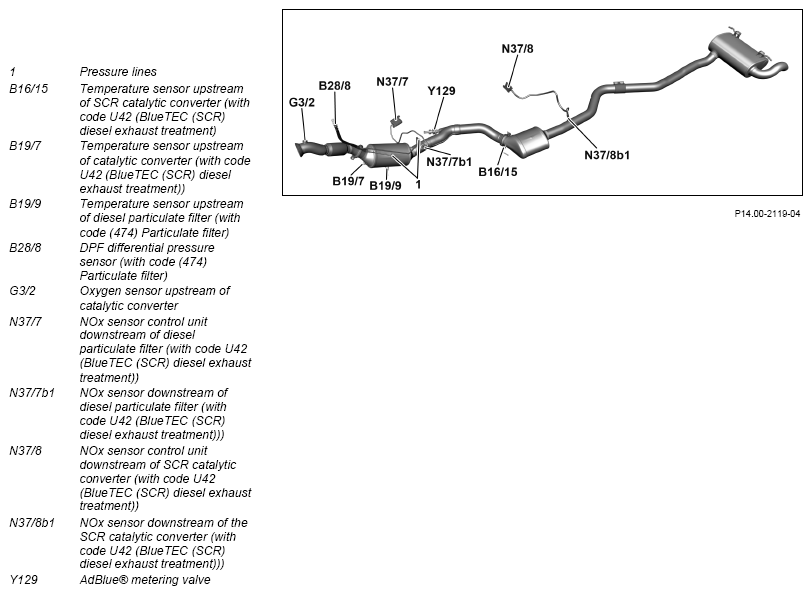

View of exhaust system

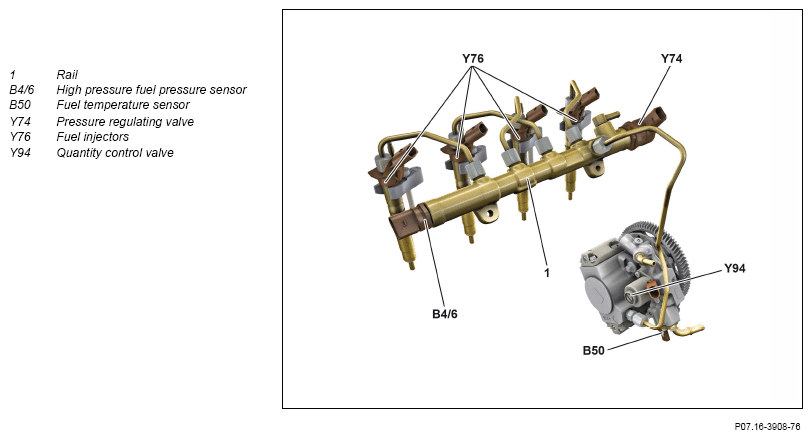

View of fuel high-pressure circuit
View of integral carrier from the front left

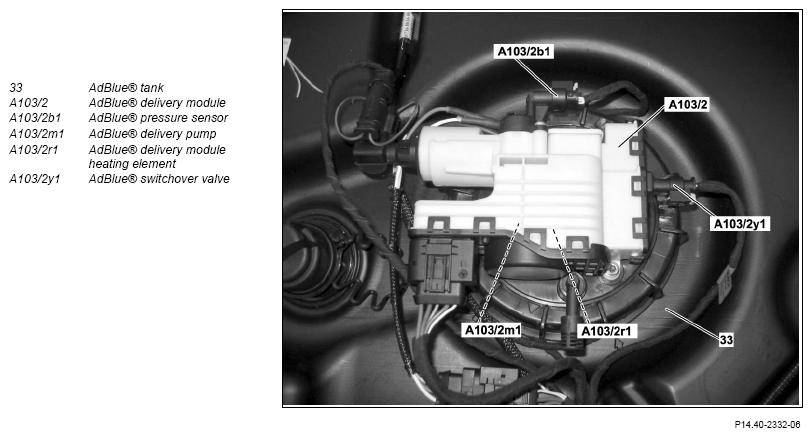

View of AdBlue® container (with code U42 (BlueTEC (SCR) diesel exhaust treatment))

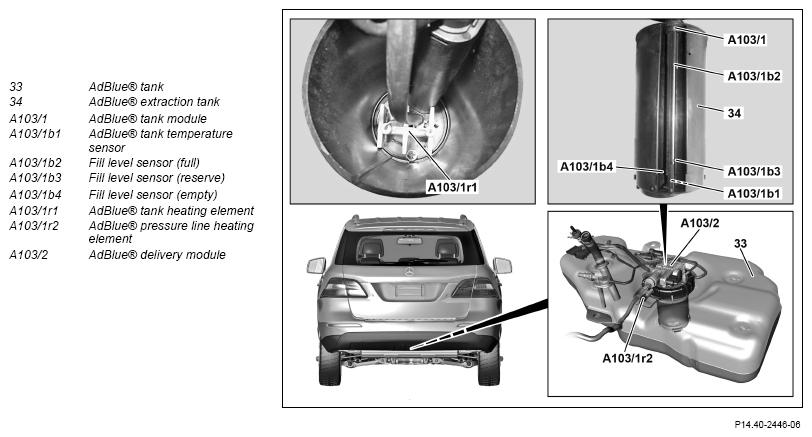

View of AdBlue® container (with code U42 (BlueTEC (SCR) diesel exhaust treatment))

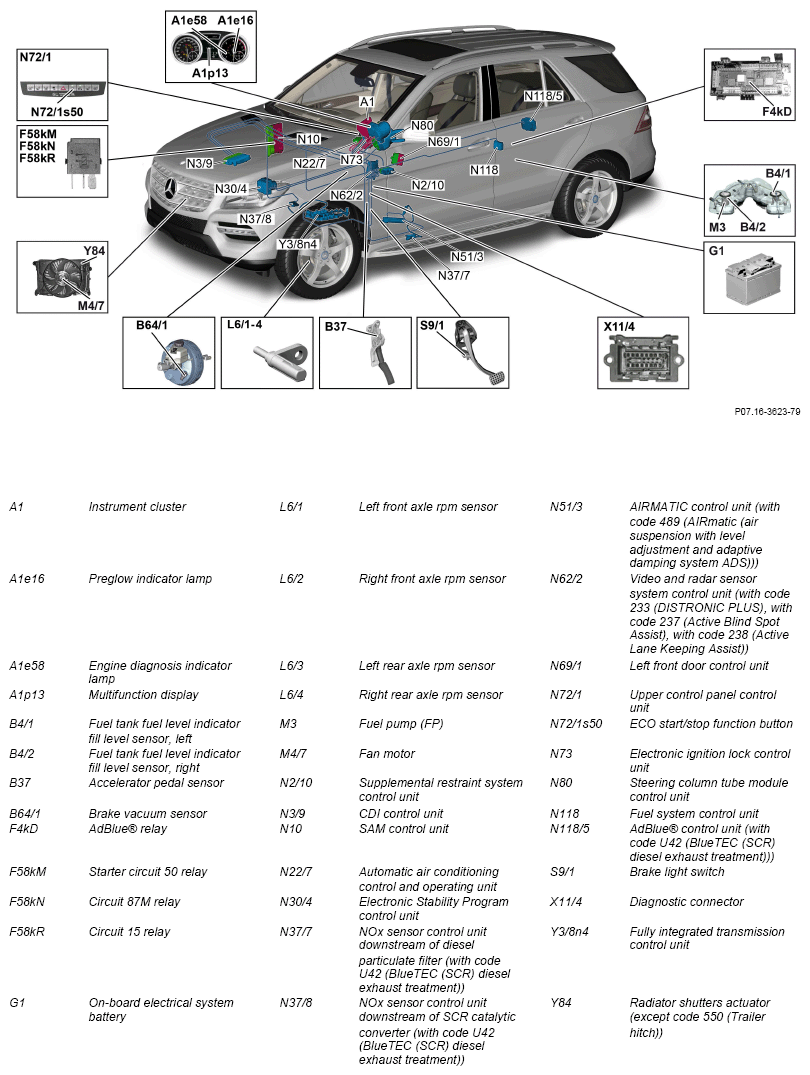

| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Component description for CDI control unit | N3/9 | GF07.16-P-6000OLL | |
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Component description for NOx sensor control unit | ENGINE 651.960 in MODEL 166 up to model year 2016 with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) N37/7, N37/8 |
GF14.40-P-3024OLG | |
| AIRmatic control unit, component description | MODEL 166 with ENGINE 651.9 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 |
GF32.22-P-5109GR | |
| Component description for video and radar sensor system control unit | MODEL 166 with ENGINE 651.9 up to model year 2016 with CODE 233 (DISTRONIC PLUS) MODEL 166 with ENGINE 651.9 up to model year 2016 with CODE 237 (Active Blind Spot Assist) MODEL 166 with ENGINE 651.9 up to model year 2016 with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Upper control panel control unit, component description | N72/1, N72/1s50 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001OLG | |
| Component description for exhaust aftertreatment control unit | ENGINE 651.960 in MODEL 166 up to model year 2016 with CODE U42 (BlueTEC diesel exhaust treatment (SCR)) N118/5 |
GF14.40-P-3030OLG | |
| Component description for fully integrated transmission control unit | MODEL 166 with ENGINE 651.9 with TRANSMISSION 722.9 up to model year 2016 Y38n4 |
GF27.60-P-5165AHA | |
| Table of contents for function description of common rail diesel injection (CDI) | GF07.16-P-0999OLL |
