Remove/Install Pedestrian Protection Sensor - AR91.60-P-0950GQC

MODEL 166 as of model year 2016

with CODE U60 (Active Bonnet (Pedestrian protection))

MODEL 292

with CODE U60 (Active Bonnet (Pedestrian protection))

	General information on the impact absorber		AH88.20-P-1000-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on pedestrian protection sensor		AH91.60-P-0001-01A
	Remove/install
1	Remove front bumper	Model 292 with code U60 (Active Bonnet (Pedestrian protection))	AR88.20-P-2000GQC
		Model 166 as of model year 2016 with code U60 (Active Bonnet (Pedestrian protection))	AR88.20-P-2000GQ
2	Place down front bumper on appropriate base

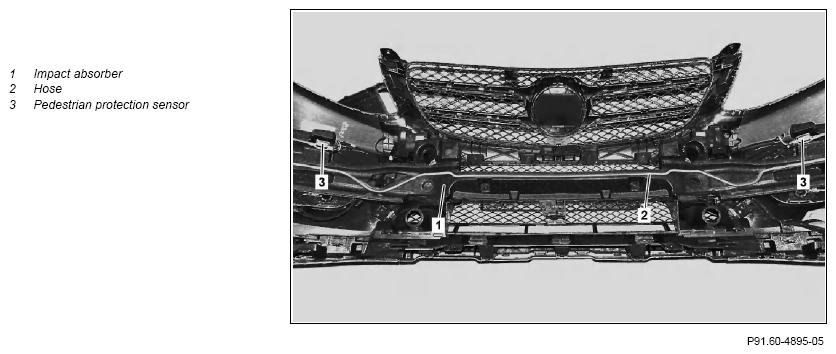

3	Remove hose (2) from groove in impact absorber (1)	Ensure that hose (2) is seated correctly in impact absorber (1). The hose (2) must be routed without any tension or kinks. Malfunctions can occur otherwise. The hose (2) must be seated as deeply as possible within the groove of the impact absorber (1) and have the same protrusion length at left and right.
4	Disconnect electrical connectors from pedestrian protection sensors (3)
5	Remove pedestrian protection sensors (3) together with hose (2) from bumper	The pedestrian protection sensors (3) may not be separated from the hose (2). Malfunctions can occur otherwise.
6	Install in the reverse order
