Overview Of System Components Of Electric Power Steering (ES) - GF46.35-P-9997GR
MODEL 166 up to model year 2016

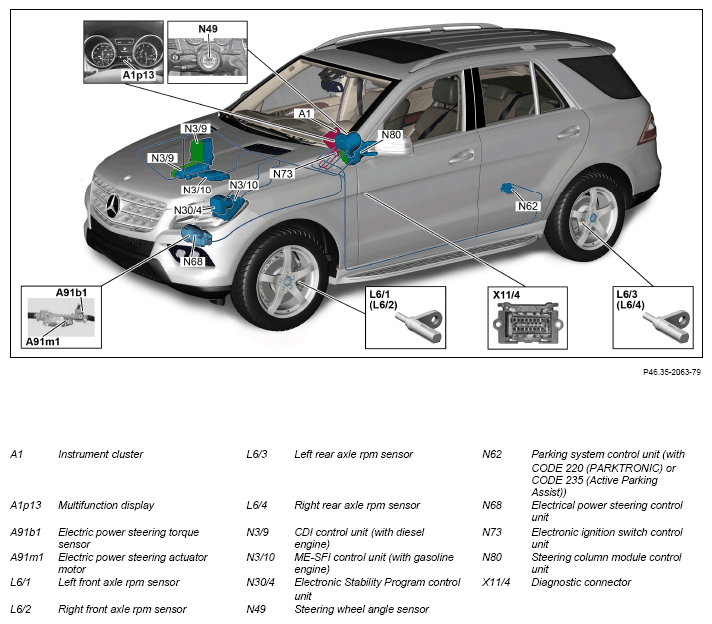

Shown on model 166.0
Depending on the engine involved, the CDI control unit has the following installation location:
- Engine 642, in the right front wheel arch behind the wheel
- Engine 651, on the air filter housing
Depending on the engine involved, the ME-SFI [ME] control unit has the following installation location:
- Engine 276, on left of engine
- Engine 278 and 157, on center of engine
| Component description for instrument cluster | A1, A1p13 | GF54.30-P-6000GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2016 | GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 | GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 |
GF07.61-P-6000MMU | |
| MODEL 166 with ENGINE 276.9 up to model year 2016 | GF07.61-P-6000MMG | ||
| MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 | GF07.61-P-6000MMR | ||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Parking system control unit component description | MODEL 166 up to model year 2016 with CODE 220 (PARKTRONIC) MODEL 166 up to model year 2016 with CODE 235 (Active Park Assist) N62 |
GF54.65-P-5002GR | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Contents, function description of electric power steering (ES) | GF46.35-P-0999GR |
