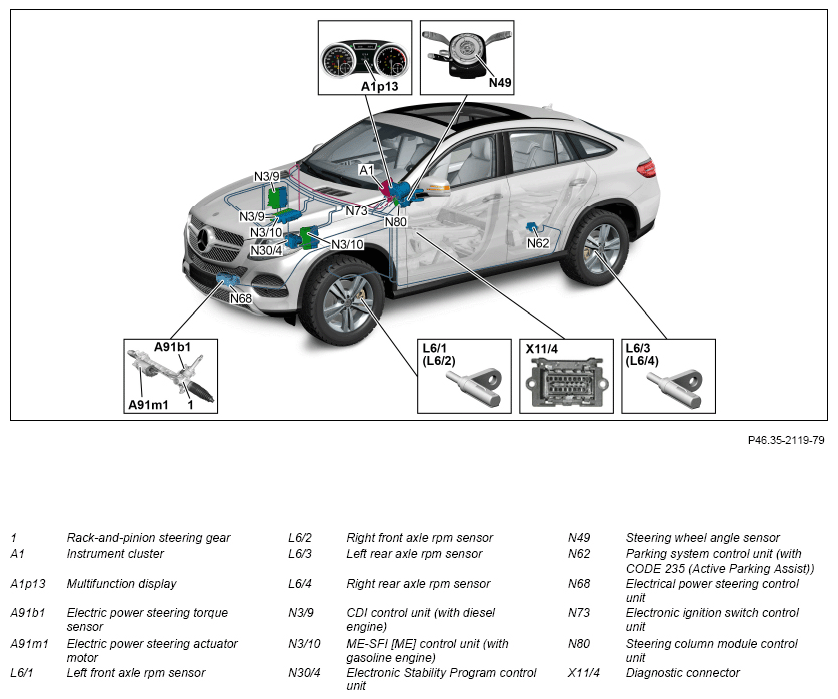

Overview Of System Components Of Electric Power Steering (ES) - GF46.35-P-9997GN
MODEL 166 as of model year 2016
MODEL 292
Shown on Model 292
| Component description for instrument cluster | A1, A1p13 | GF54.30-P-6000GN | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 as of model year 2016 MODEL 292 with ENGINE 642 N3/9 |
GF07.16-P-6000OGF | |
| MODEL 166 with ENGINE 651.9 as of 6/1/15 as of model year 2016 | GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | MODEL 166.063 with ENGINE 276.8 as of model year 2016 N3/10 | GF07.61-P-6000MMM | |
| MODEL 166 (except 166.063) with ENGINE 276.8 as of model year 2016 | GF07.61-P-6000MMX | ||
| MODEL 292 with ENGINE 276.8 MODEL 166 with ENGINE 157.9, 278.9 as of model year 2016 |
GF07.61-P-6000MMY | ||
| MODEL 292 with ENGINE 157.9, 278.9 MODEL 166 with ENGINE 276.9 as of model year 2016 |
GF07.61-P-6000MNG | ||
| Component description for Electronic Stability Program control unit | MODEL 166 (except 166.063) as of model year 2016 MODEL 292 N30/4 | GF42.45-P-5119GN | |
| MODEL 166.063 as of model year 2016 | GF42.45-P-5119GRH | ||
| Parking system control unit component description | MODEL 166 as of model year 2016 with CODE 235 (Active Parking Assist) MODEL 292 with CODE 235 (Active Parking Assist) N62 |
GF54.65-P-5004GN | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Contents, function description of electric power steering (ES) | GF46.35-P-0999GN |
