Power Flow In 5th Gear, Function - GF27.10-P-3015AHA

TRANSMISSION 722.9 in MODEL 166 up to model year 2016

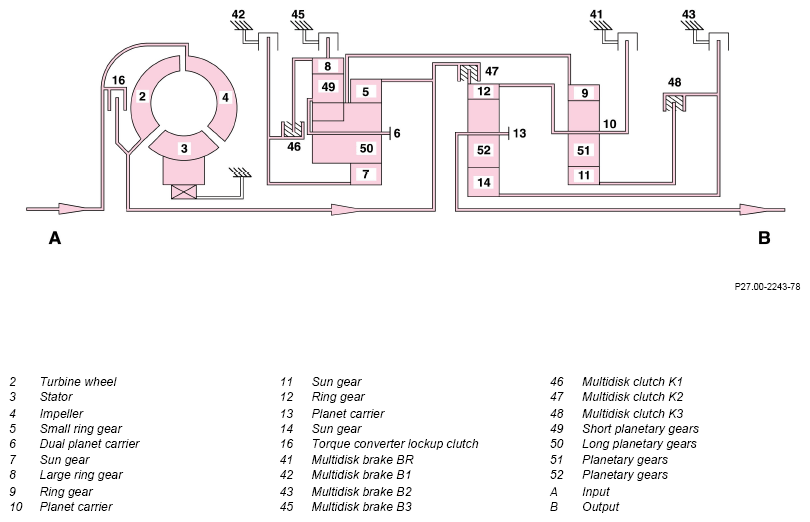

5th gear power flow

Function requirements for power flow in 5th gear, general

• Circuit 87 (connected circuit 15) ON
• Engine running

Power flow in 5th gear, general

The following multidisk clutches are engaged:

• Multidisk clutch K1 (46)
• Multidisk clutch K2 (47)
• Multidisk clutch K3 (48)

In 5th gear, power flows from the transmission input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the main shaft. This rotates at the input speed in the direction of engine rotation.
