Power Flow In 5th Gear, Function - GF27.10-P-3015GRH

TRANSMISSION 724.204 in MODEL 166

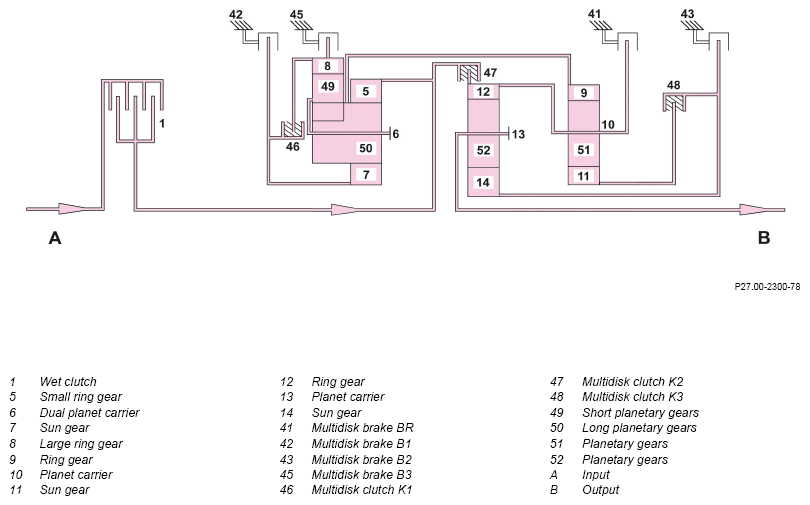

Shown is power flow in 5th gear

General function requirements for power flow in 5th gear

• Circuit 15 ON
• Combustion engine ON and/or electrical machine (A79/1) ON

General power flow in 5th gear

The following multidisk clutches are engaged:

• Multidisk clutch K1 (46)
• Multidisk clutch K2 (47)
• Multidisk clutch K3 (48)

In 5th gear, power flows from the input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the main shaft. This rotates at the input speed in the direction of engine rotation.
