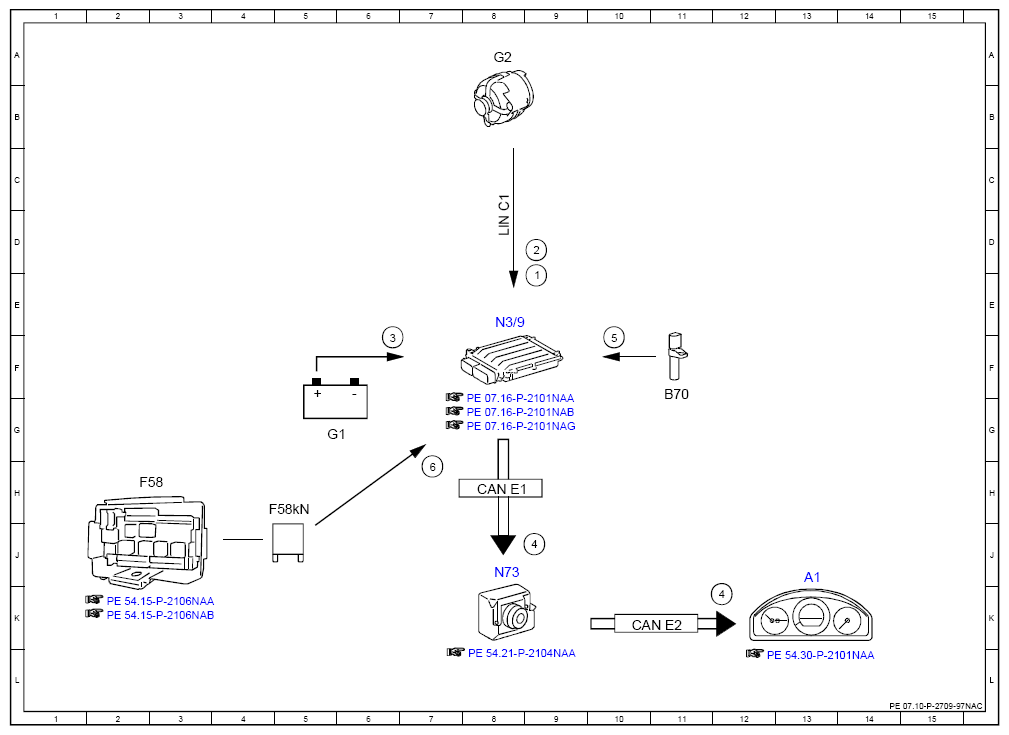

Electrical Function Schematic, Alternator Interface - PE07.10-P-2709-97NAC
ENGINE 642.8 in MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, status | 9E |
| 2 | Circuit 61, status | 9D |
| 3 | Circuit 30, status | 6F |
| 4 | Instrument cluster, message | 9J |
| 4 | Instrument cluster, message | 12K |
| 5 | Engine speed, signal | 10F |
| 6 | Circuit 87, status | 7H |
| A1 | Instrument cluster | 13J |
| B70 | Crankshaft Hall sensor | 11G |
| CAN E1 | Chassis CAN 1 | 8H |
| CAN E2 | Chassis CAN 2 | 10K |
| F58 | Engine compartment fuse and relay module | 2H |
| F58kN | Circuit 87M relay | 5H |
| G1 | On-board electrical system battery | 5G |
| G2 | Alternator | 8A |
| LIN C1 | Drive train LIN | 8D |
| N3/9 | CDI control unit | 8E |
| N73 | Electronic ignition switch control unit | 8J |
