Overhead Control Panel Control Unit, Basic Function - GF82.20-P-9890A

MODEL ALL (CAR)

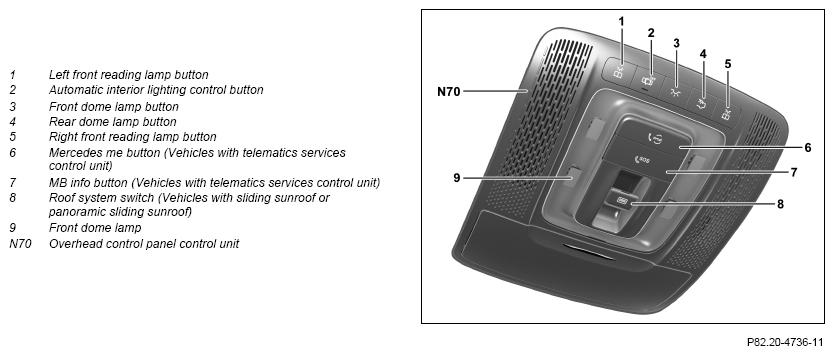

Shown on model 177

General

The overhead control panel control unit reads in the operation signals for the interior lighting, the sliding sunroof and the emergency call. On vehicles with interior protection, the overhead control panel control unit also monitors the vehicle interior and detects modifications in vehicle inclination. For protection against misuse of the garage door opener, a security code is stored in the overhead control panel control unit.

Location

The overhead control panel control unit is located in the front section of the headliner.

Function requirements

• Circuit 30t ON

Structure

The overhead control panel control unit contains the following components depending on the equipment:

• Interior temperature sensor
• Interior protection receiver and transmitter (Vehicles with interior protection and tow-away protection)
