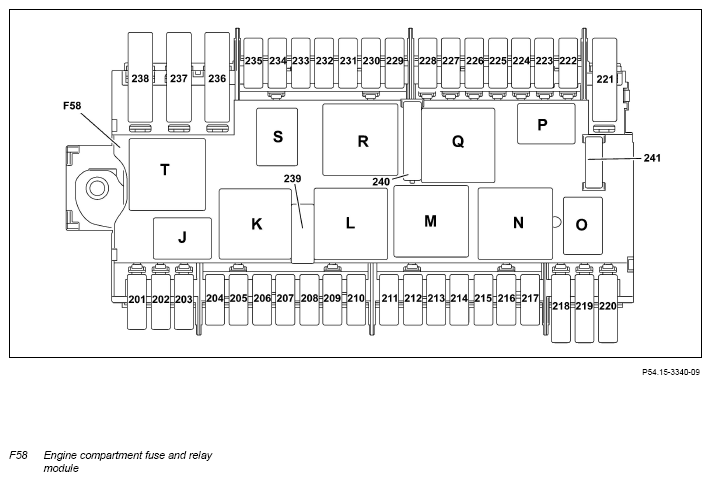

Assignment Of Engine Compartment Fuse And Relay Module - GF54.15-P-1256-36GR
MODEL 166 up to model year 2016
When "ATO" and "MAXI" fuses are changed, they must always be replaced with fuses that comply with the Mercedes-Benz standard: MBN10153-2.
| Slot | Fuse Identification | Circuit | Line ID (line fused) | Fused component | Rating in amperes (A) |
|---|---|---|---|---|---|
| 201 | Fuse 201 (F58f201) | 30 | - | Spare | - |
| 202 | Fuse 202 (F58f202) | 30 | 2.5 RD | Valid with CODE 228 (Stationary heater): Stationary heater unit (A6) | 20 |
| 203 | Fuse 203 (F58f203) | 30 | 0.35 RD | Valid with CODE 551 (Anti-theft alarm system (ATA [EDW])): Alarm siren (H3/1) | 5 |
| 204 | Fuse 204 (F58f204) | 30 | 2.5 RDWH | Electronic Stability Program control unit (N30/4) | 25 |
| 205 | Fuse 205 (F58f205) | 15 | 1.5 BUWH | Switched via the horns relay (F58k): Left fanfare horn (H2) Right fanfare horn (H2/1) | 15 |
| 206 - 212 | Fuse 206 (F58f206) - Fuse 212 (F58f212) | 30 | - | Spare | - |
| 213 | Fuse 213 (F58f213) | 30z | 0.5 RDWH | Valid for engine 642, 651: CDI control unit (N3/9) | 7.5 |
| 30z | 0.5 RDWH | Valid for engine 157, 276, 278: ME-SFI control unit (N3/10) | 7.5 | ||
| 214 | Fuse 214 (F58f214) | 87 | 1.5 PKYE | Valid for engine 157, 276, 278: ME-SFI control unit (N3/10) | 15 |
| 87 | 1.0 PKBK | Valid with engine 651: CDI control unit (N3/9) | 15 | ||
| 87 | 1.0 PKYE | Valid with CODE U42 (BlueTEC (SCR) diesel exhaust treatment)): NOx sensor control unit downstream of diesel particulate filter (N37/7) NOx sensor control unit downstream of SCR catalytic converter (N37/8) | 15 | ||
| 215 | Fuse 215 (F58f215) | 87 | 1.5 PKBK | Valid for engine 157, 278: Engine/engine compartment electrical connector (X26/31) (pin 7) | 15 |
| 87 | 1.5 PKBK | Valid with engine 276: Interior and engine wiring harness electrical connector (X26) (pin 7) | 15 | ||
| 87 | 1.5 PKBK | Valid with engine 642: Engine/engine compartment electrical connector (X26/31) (pin 7) via circuit 87 D3 connector sleeve (Z7/75) Radiator shutters actuator (Y84) | 15 | ||
| 87 | 1.5 PKBK | Valid with engine 651: Engine/engine compartment electrical connector (X26/31) (pin 7) Radiator shutters actuator (Y84) | 15 | ||
| 216 | Fuse 216 (F58f216) | 87 | 1.5 PKBU | Valid for engine 157, 276, 278: Connector sleeve for circuit 87D2 (Z7/48) | 15 |
| 87 | 1.5 PKBU | Valid with engine 642: CDI control unit (N3/9) Engine/engine compartment electrical connector (X26/31) (pin 6) Left switchable engine mount (Y123) Right switchable engine mount (Y123/1) | 15 | ||
| 87 | 1.5 PKBU | Valid with engine 651: Fan motor (M4/7) CDI control unit (N3/9) Engine/engine compartment electrical connector (X26/31) (pin 6) Left switchable engine mount (Y123) Right switchable engine mount (Y123/1) | 15 | ||
| 217 | Fuse 217 (F58f217) | 87 | 1.5 PK | Valid for engine 157, 276, 278: Engine/engine compartment electrical connector (X26/31) (pin 5) | 20 |
| 87 | 2.5 PK | Valid for engine 642, 651: CDI control unit (N3/9) Engine/engine compartment electrical connector (X26/31) (pin 5) | 20 | ||
| 218 | Fuse 218 (F58f218) | 87 | - | Spare | - |
| 219 | Fuse 219 (F58f219) | 87 | 0.75 RDBU | Valid for engine 278, 157: Charge air cooler circulation pump (M44) | 10 |
| 220 - 223 | Fuse 220 (F58f220) - Fuse 223 (F58f223) | 30 | - | Spare | - |
| 224 - 228 | Fuse 224 (F58f224) - Fuse 228 (F58f228) | 15 | - | Spare | - |
| 229 | Fuse 229 (F58f229) | 15 | 1.0 BK | Left front lamp unit (E1) | 7.5 |
| 230 | Fuse 230 (F58f230) | 15 | 0.5 PKWH | Electronic Stability Program control unit (N30/4) | 5 |
| 231 | Fuse 231 (F58f231) | 15 | 0.5 BKBU | Right front lamp unit (E2) | 7.5 |
| 232 | Fuse 232 (F58f232) | 15 | 1.0 PK | Fully integrated transmission control unit (Y3/8n4) | 15 |
| 15 | 1.0 PK | Valid with CODE B03 (ECO start/stop function): Automatic transmission fluid auxiliary pump control unit (N89) | 15 | ||
| 233 | Fuse 233 (F58f233) | 15 | 1.0 PKWH | Valid with CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) or CODE 621 (Intelligent light system (left-hand traffic)) or CODE 622 (Intelligent light system (right-hand traffic)): Headlamp control unit (N71/1) | 15 |
| 234 | Fuse 234 (F58f234) | 15 | 0.35 BKBU | Valid with CODE 233 (DISTRONIC PLUS) or CODE 237 (Active Blind Spot Assist): DISTRONIC electric controller unit (A89) | 5 |
| 235 | Fuse 235 (F58f235) | 15 | 1.5 GY | Wiper park position heater (R2/10) | 20 |
| 236 | Fuse 236 (F58f236) | 30 | - | Spare | - |
| 237 | Fuse 237 (F58f237) | 30 | 2.5 RDWH | Valid for transmission 722.9: Intelligent servo module for DIRECT SELECT (A80) | 15 |
| 238 | Fuse 238 (F58f238) | 87 | 4.0 GYWH | Valid with CODE 489 (AIRmatic (air suspension with level adjustment and adaptive damping system ADS)): Switched via the AIRmatic relay (F58kT): AIRmatic compressor (A9/1) | 40 |
| 239 | Fuse 239 (F58f239) | 30 | 2.5 GYWH | Switched via the windshield wiper ON/OFF relay (F58kL) and the 1/2 wiper speed relay (F58kK): Wiper motor (M6/1) | 30 |
| 240a | Electrical fuse 240a (F58f240a) | 30 | 2.5 VTWH | Valid except CODE B03 (ECO start/stop function): Starter (M1) | 30 |
| 240b | Electrical fuse 240b (F58f240b) | 15 | 2.5 VTWH | Valid with CODE B03 (ECO start/stop function): Engine compartment prefuse box (F32/3) | 30 |
| 241 | Electrical fuse 241 (F58f241) | 30 | - | Spare | - |
| Relay Slot Identification | Designation |
|---|---|
| J | Fanfare horn relay (F58kJ) |
| K | Wiper speed 1/2 relay (F58kK) |
| L | Windshield wiper ON/OFF relay (F58kL) |
| M | Starter circuit 50 relay (F58kM) |
| N | Circuit relay 87M (F58kN) |
| O | Valid for turbocharger: Turbocharger relay (F58kO) |
| P | Backup relay (F58kP) |
| Q | Circuit 15 relay (not latched) (F58kQ) |
| R | Circuit 15 relay (F58kR) |
| S | Wiper park position heater relay (F58kS) |
| T | Valid with CODE 489 (AIRmatic (air suspension with level adjustment and adaptive damping system ADS)): AIRmatic relay (F58kT) |
