Remove/Install Radar Sensor - AR30.30-P-1210GQ
MODEL 166.0 up to model year 2016 with CODE 233 (DISTRONIC PLUS incl. BAS Plus and PRE-SAFE® Brake)
MODEL 166.8 (except 166.874) up to model year 2016 with CODE 233 (DISTRONIC PLUS incl. BAS Plus and PRE-SAFE® Brake)
MODEL 166.874 with CODE 233 (DISTRONIC PLUS)
Shown on MODEL 166.024
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Switch off ignition and store transmitter key outside of transmission range (at least 2 m) | |||

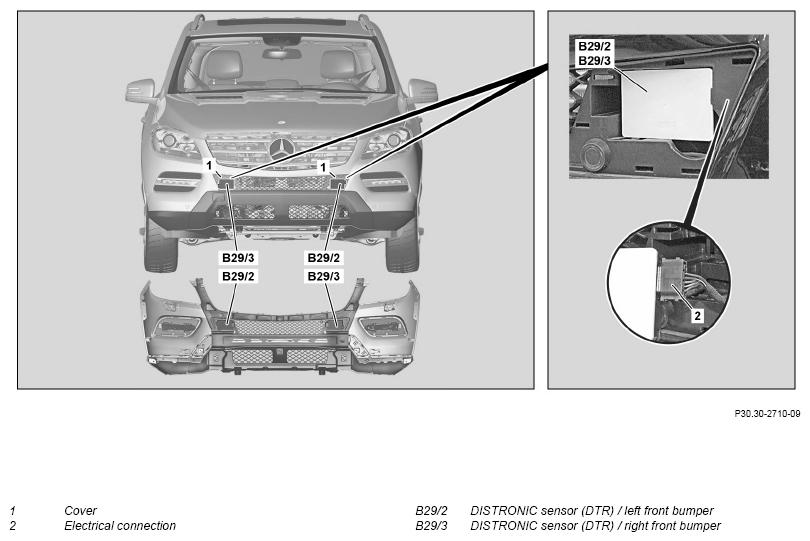

| 2 | Remove left or right cover (1) | Fig 1 | |
| 3 | Remove DISTRONIC (DTR) sensor on the bumper at the front left (B292) or DISTRONIC (DTR) sensor on the bumper at the front right (B293) from the bumper | ||
| 4 | Release and disconnect electrical connection (2) | ||
| 5 | Install in the reverse order | ||
| Initial startup | |||
| 6 | Perform commissioning using the diagnostic system | Only when replacing the DISTRONIC (DTR) sensor on the bumper at the front left (B29/2) or DISTRONIC (DTR) sensor on the bumper at the front right (B29/3). | AD00.00-P-2000-04A |
