Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996GN
MODEL 166 as of model year 2016
MODEL 292

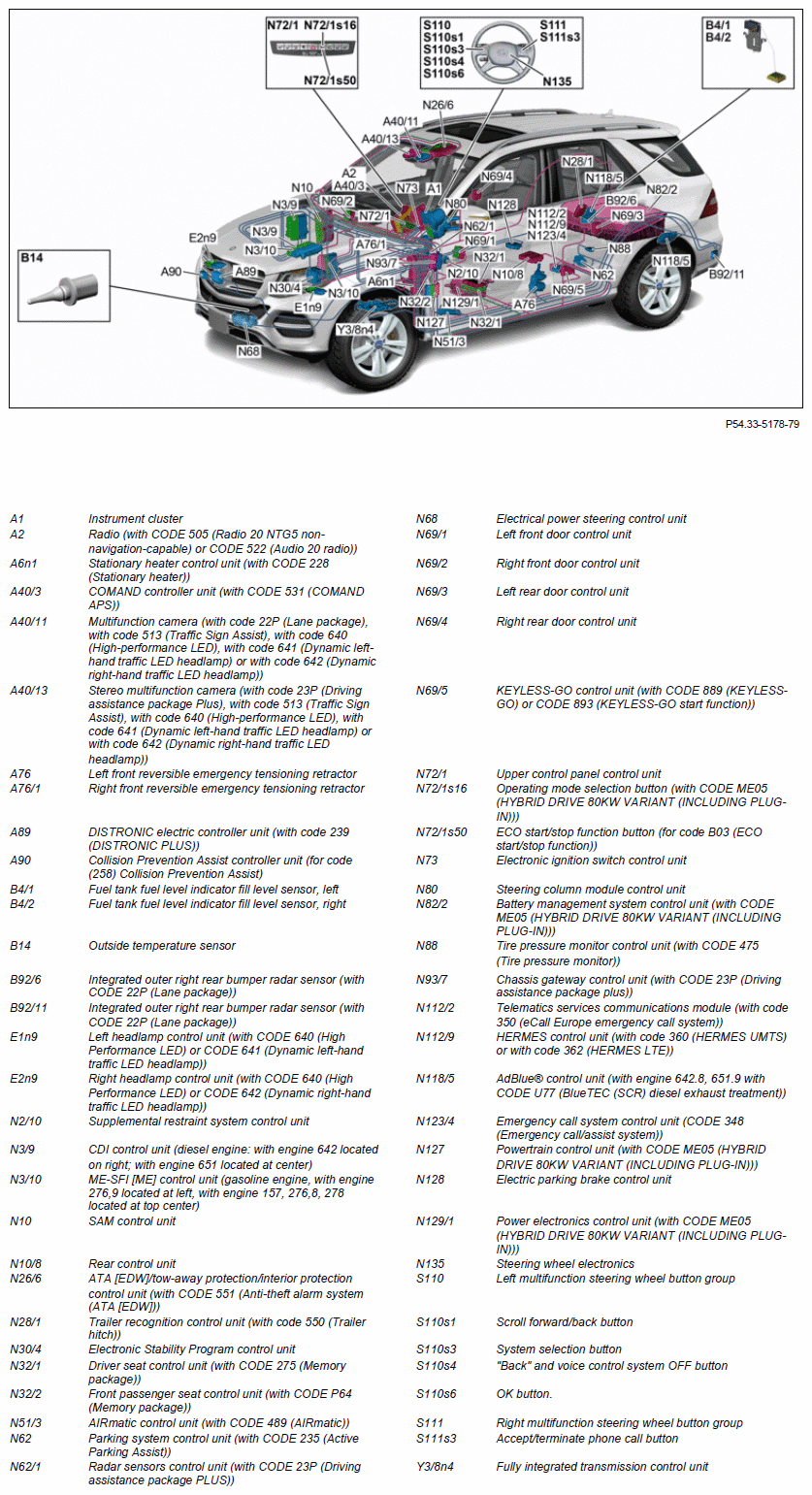

Shows model 166.0

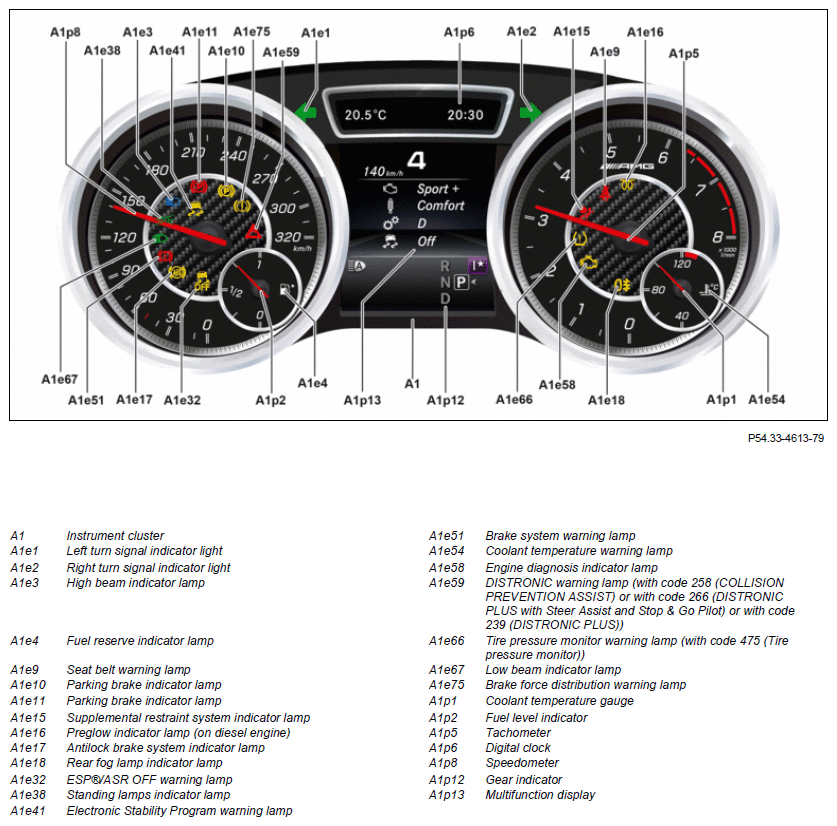

Shown except code ME05 (HYBRID DRIVE 80KW-VARIANT (INCLUDING PLUGIN)) and except model 166.064/074/075/874 and except model 292.374/375

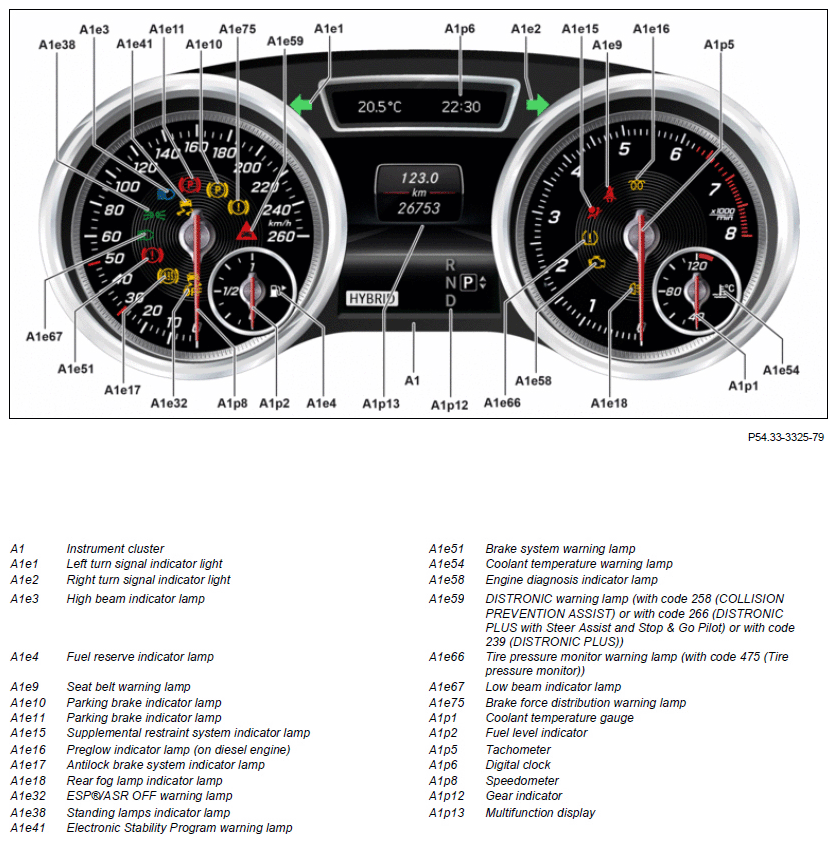

Shown with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN))

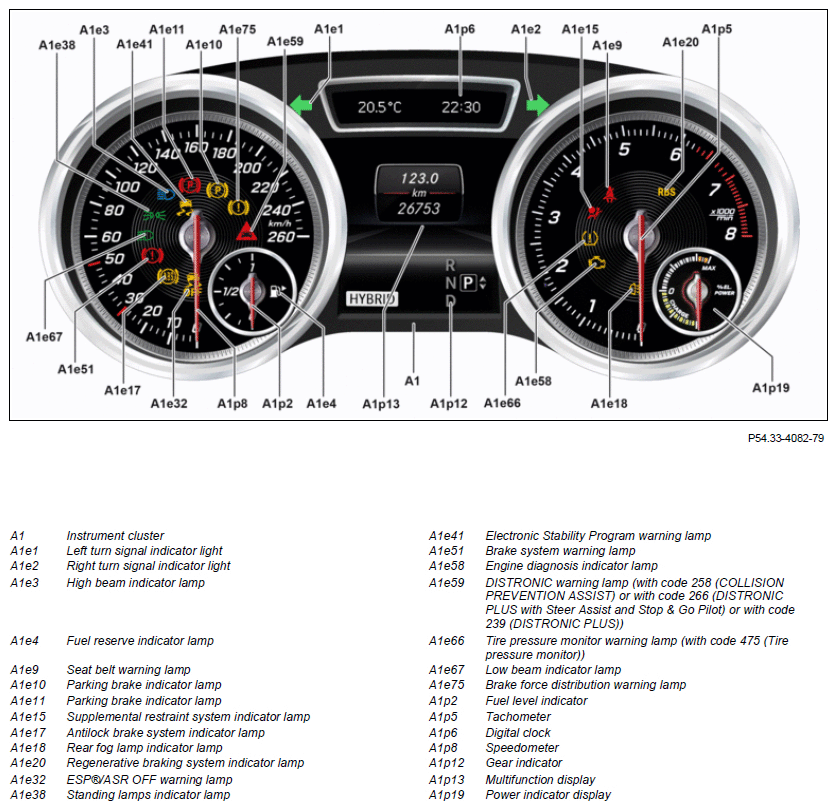

Shown on model 166.074/874 and model 292.374
Shown on model 166.064/075 and model 292.375
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Component description for the radio | Model 166 as of model year 2016 with code 505 (Radio 20 NTG5, not navigation-enabled) |
GF82.60-P-3122GN | |
| Model 166 as of model year 2016 with code 522 (Audio 20 radio) |
|||
| Model 292 with code 505 (Radio 20 NTG5, not navigation-enabled) |
|||
| Model 292 with code 522 (Audio 20 radio) A2 |
|||
| Stationary heater control unit, component description | Model 166 as of model year 2016 with code 228 (Auxiliary heater) |
GF83.70-P-4066GN | |
| Model 292 with code 228 (Auxiliary heater) A6n1 |
|||
| Component description for COMAND controller unit | Model 166 as of model year 2016 with code 531 (COMAND APS) |
GF82.85-P-3136GN | |
| Model 292 with code 531 (COMAND APS) A40/3 |
|||
| Component description for multifunction camera | Model 166 as of model year 2016 with code 22P (Lane tracking package) |
GF54.21-P-3300GN | |
| Model 166 as of model year 2016 with code 23P (Driving Assistance package) |
|||
| Model 166 as of model year 2016 with code 513 (Traffic Sign Assist) |
|||
| Model 166 as of model year 2016 with code 640 (High-performance LED) |
|||
| Model 166 as of model year 2016 with code 641 (Dynamic LED headlamps, left-hand traffic) |
|||
| Model 166 as of model year 2016 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| Model 292 with code 22P (Lane tracking package) |
|||
| Model 292 with code 23P (Driving Assistance package) |
|||
| Model 292 with code 513 (Traffic Sign Assist) |
|||
| Model 292 with code 640 (High-performance LED) |
|||
| Model 292 with code 641 (Dynamic LED headlamps, left-hand traffic) |
|||
| Model 292 with code 642 (Dynamic LED headlamps, right-hand traffic) A40/11, A40/13 |
|||
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020GN | |
| Component description for DISTRONIC electric controller unit | Model 166 as of model year 2016 with code 239 (DISTRONIC PLUS) |
GF30.30-P-3213GN | |
| Model 292 as of model year 2016 with code 239 (DISTRONIC PLUS) A89 |
|||
| COLLISION PREVENTION ASSIST controller unit, component description | Model 166 as of model year 2016 with code 258 (COLLISION PREVENTION ASSIST) |
GF30.30-P-3214GN | |
| Model 292 with code 258 (COLLISION PREVENTION ASSIST) A90 |
|||
| Component description for bumper radar sensors | Model 166 as of model year 2016 with code 22P (Lane tracking package) |
GF30.30-P-3302GN | |
| Model 166 as of model year 2016 with code 23P (Driving Assistance package) |
|||
| Model 292 with code 22P (Lane tracking package) |
|||
| Model 292 with code 23P (Driving Assistance package) B92/6, B92/11 |
|||
| Headlamp control unit, component description | Model 166 as of model year 2016 with code 640 (High-performance LED) |
GF82.10-P-2020GN | |
| Model 166 as of model year 2016 with code 641 (Dynamic LED headlamps, left-hand traffic) |
|||
| Model 166 as of model year 2016 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| Model 292 with code 640 (High-performance LED) |
|||
| Model 292 with code 641 (Dynamic LED headlamps, left-hand traffic) |
|||
| Model 292 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9, E2n9 |
|||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | Model 166 with engine 642.8 as of model year 2016 |
GF07.16-P-6000OGF | |
| Model 292 with engine 642.8 N3/9 |
|||
| Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 N3/9 |
GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | Model 166 (except 166.063) with engine 276.8 as of model year 2016 | GF07.61-P-6000MMX | |
| Model 292 with engine 276.8 N3/10 |
|||
| Model 166.063 with engine 276.8 as of model year 2016 N3/10 |
GF07.61-P-6000MMM | ||
| Model 166 with engine 276.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNG | ||
| Model 166 with engine 157.9, 278.9 as of model year 2016 |
GF07.61-P-6000MMY | ||
| Model 292 with engine 157.9, 278.9 N3/10 |
|||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| ATA/tow-away protection/interior protection control unit, component description | Model 166 as of model year 2016 with code 551 (Anti-theft warning system) |
GF80.50-P-4131GN | |
| Model 292 with code 551 (Anti-theft warning system) N26/6 |
|||
| Component description for trailer recognition control unit | Model 166 as of model year 2016 with code 550 (Trailer coupling) |
GF31.19-P-4050GN | |
| Model 292 with code 550 (Trailer coupling) N28/1 |
|||
| Component description for Electronic Stability Program control unit | Model 166 (except 166.063) as of model year 2016 |
GF42.45-P-5119GN | |
| Model 292 N30/4 |
|||
| Component description for driver seat control unit | Model 166 as of model year 2016 with code 275 (Memory package) |
GF91.29-P-5231GN | |
| Model 292 with code 275 (Memory package) N32/1 |
|||
| Model 166 as of model year 2016 except code 275 (Memory package) |
GF91.29-P-5231GNA | ||
| Model 292 except code 275 (Memory package) N32/1 |
|||
| Component description for front passenger seat control unit | Model 166 as of model year 2016 with code P64 (Memory package) |
GF91.29-P-5241GN | |
| Model 292 with code P64 (Memory package) N32/2 |
|||
| Model 166 as of model year 2016 except code P64 (Memory package) |
GF91.29-P-5241GNA | ||
| Model 292 except code P64 (Memory package) N32/2 |
|||
| AIRMATIC control unit, component description | Model 166 as of model year 2016 with code 489 (AIRMATIC) |
GF32.22-P-5110GN | |
| Model 292 with code 489 (AIRMATIC) N51/3 |
|||
| Parking system control unit, component description | Model 166 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) |
GF54.65-P-5004GN | |
| Model 292 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
|||
| Component description for radar sensors control unit | Model 166 as of model year 2016 with code 23P (Driving Assistance package) |
GF30.30-P-3301GN | |
| Model 292 with code 23P (Driving Assistance package) N62/1 |
|||
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for rear door control unit | N693, N694 | GF72.29-P-6021GN | |
| Component description for KEYLESS-GO control unit | Model 166 as of model year 2016 with code 889 (KEYLESS-GO) |
GF80.61-P-4204GN | |
| Model 166 as of model year 2016 with code 893 (KEYLESS-GO) |
|||
| Model 292 with code 889 (KEYLESS-GO) |
|||
| Model 292 with code 893 (KEYLESS-GO) N69/5 |
|||
| Upper control panel control unit, component description | N72/1, N72/s16, N72/1s50 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for battery management system control unit | Model 166.063 as of model year 2016 N82/2 |
GF54.10-P-3012GRH | |
| Component description for tire pressure monitor control unit | Model 166 as of model year 2016 with code 475 (Tire pressure monitoring system) |
GF40.15-P-5124GN | |
| Model 292 with code 475 (Tire pressure monitoring system) N88 |
|||
| Component description for chassis gateway control unit | Model 166 as of model year 2016 with code 23P (Driving Assistance package) |
GF54.21-P-1010GN | |
| Model 292 with code 23P (Driving Assistance package) N93/7 |
|||
| Telematics services communications module, component description | Model 166 as of model year 2016 up to model year 2017 with code 350 (Ecall emergency call system, Europe) |
GF82.85-P-0220GN | |
| Model 292 up to model year 2017 with code 350 (Ecall emergency call system, Europe) N112/2 |
|||
| HERMES control unit, component description | Model 166 as of model year 2016 with code 360 (HERMES UMTS) |
GF82.85-P-0221GN | |
| Model 166 as of model year 2016 with code 362 (HERMES LTE) |
|||
| Model 292 with code 360 (HERMES UMTS) |
|||
| Model 292 with code 362 (HERMES LTE) N112/9 |
|||
| Component description for exhaust aftertreatment control unit | Model 166 with engine 642.8 as of model year 2016 with code U77 (Diesel Emission control BLUETEC (SCR)) |
GF14.40-P-3030OGF | |
| Model 292 with engine 642.8 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 |
|||
| Model 166 with engine 651.9 as of model year 2016 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 |
GF14.40-P-3030OLF | ||
| Drivetrain control unit, component description | Model 166.063 as of model year 2016 N127 |
GF54.21-P-2141GN | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GN | |
| Component description for emergency call system control unit | Model 166 as of model year 2016 up to model year 2017 with code 348 (Emergency call/assistant system) |
GF82.95-P-3212GNU | |
| Model 292 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
|||
| Component description for power electronics control unit | Model 166.063 as of model year 2016 N129/1 |
GF08.20-P-1001GRH | |
| Component description for fully integrated transmission control unit | Model 166 with transmission 725.0 as of model year 2016 Y3/8n4 |
GF27.60-P-5165ANF | |
| Model 292 with transmission 725.0 Y3/8n4 |
GF27.60-P-5165ANJ | ||
| Model 166 with transmission 724.204 as of model year 2016 Y3/8n4 |
GF27.60-P-5165GRH | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997GN |
