Component Description For Media Interface Control Unit - GF82.60-P-5000GR
MODEL 166.0
up to model year 2013
with CODE 518 (Media interface)
Location

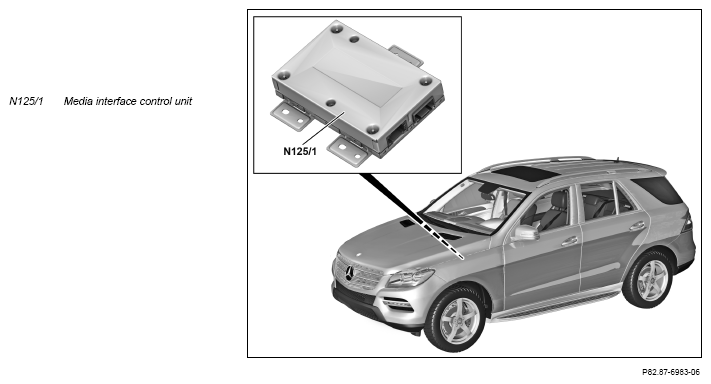

The media interface control unit is located in the front to the left of center between the instrument panel and engine compartment.
Tasks
- Receive signals
- Transmitting signals
Receive signals
- Direct lines
- Media Oriented System Transport (MOST)
Direct lines
- Power supply via circuit 31 and circuit 30g
- Audio signals and data via the Media Interface electrical connector (X18/70) and "Mitsumi CAM62" connector
- Electronic wake-up for MOST
MOST
- Control and operating signals from the audio equipment
Transmitting signals
- Direct lines
- MOST
Direct lines
- General power supply to Media Interface electrical connector via the "Mitsumi CAM62" connector
- Control signals to media interface electrical connector via the "Mitsumi CAM62" connector
MOST
- Audio signals and data to the audio equipment
| Technical data Designation | Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| Media interface control unit | ||||
| Voltage supply | V | 12 | On-board electrical system voltage (UB ) | |
| Voltage limits | V | >9 | Minimum (UBmin ) | |
| V | < 16 | Maximum (UBmax ) | ||
| Power consumption | mA | 300 | Standby (IB ) | |
| mA | 300 | Action, typical (IAction ) | ||
| A | 1.5 | Maximum (IAction ) | ||
| mA | 0.1 | No-load current | ||
| Reverse polarity protection | Yes, in range -9 V to -16 V | |||
| Flash capability/coding capability | No/DC-compatible |
| Wiring diagram for media interface control unit | N125/1 | PE82.60-P-2105-97NAA |
