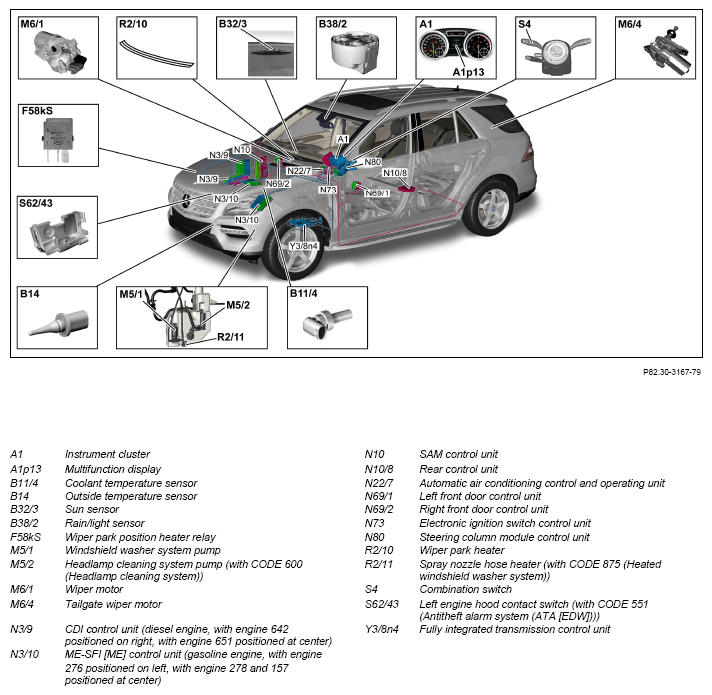

Overview Of System Components For Windshield Wiper System - GF82.30-P-9996GR

MODEL 166 up to model year 2016

Shows model 166.0

	Component description for instrument cluster	A1	GF54.30-P-6000GR
	Component description for CDI control unit	MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 N3/9	GF07.16-P-6000OLG
		MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 N3/9	GF07.16-P-6000OLL
		MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9	GF07.16-P-6000OGR
	Component description for ME-SFI (ME) control unit	MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10	GF07.61-P-6000MMU
		MODEL 166 with ENGINE 276.9 up to model year 2016 N3/10	GF07.61-P-6000MMG
		MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 N3/10	GF07.61-P-6000MMR
	SAM control unit, component description	N10	GF54.21-P-4157GR
	Rear control unit, component description	N10/8	GF54.21-P-4134GR
	Component description for automatic air conditioning control and operating unit	N22/7	GF83.40-P-3000GR
	Component description for left front door control unit	N69/1	GF72.29-P-6001GR
	Component description for right front door control unit	N69/2	GF72.29-P-6009GR
	Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001GR
	Component description for steering column tube module control unit	N80	GF54.21-P-6051GR
	Component description for fully integrated transmission control unit	MODEL 166 with TRANSMISSION 722.9 up to model year 2016 Y3/8n4	GF27.60-P-5165AHA
	Table of contents for function description of windshield wiper system		GF82.30-P-0997GR
