Component Description For Panoramic Sliding Roof Control Module - GF77.20-P-4106GN
MODEL 166 as of model year 2016 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
Shown: Model 292
Location

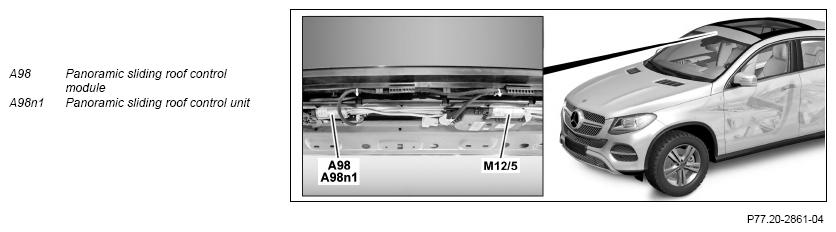

The panoramic sliding roof control unit is located at the front left on the frame of the panoramic sliding roof.
Task
The panoramic sliding sunroof control unit is responsible for the following tasks:
- Reading in of sensors and signals
- Evaluation of input factors
- Actuation of components
Reading in of sensors and signals
The input factors are read in via the following connections:
- Direct line
- Interior CAN (CAN B)
Direct line
The signals from the following components are read via direct lines:
- Hall sensor 1, panoramic sliding sunroof (A98b1)
- Hall sensor 2, panoramic sliding sunroof (A98b2)
- Hall sensor 1, panoramic sliding sunroof roller sun blind (M12/5b1)
- Hall sensor 2, panoramic sliding sunroof roller sun blind (M12/5b2)
- Sliding roof switch (N70s1)
Interior CAN
The signals are read in by the panoramic sliding roof control unit via the interior CAN. The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The following components are actuated via direct lines:
- Panoramic sliding roof motor (A98m1)
- Panoramic sliding sunroof roller sun blind motor (M12/5m1)
Body
The panoramic sliding sunroof control module contains the following components:
- Hall sensor 1, panoramic sliding roof
- Hall sensor 2, panoramic sliding roof
- Panoramic sliding roof motor
- Panoramic sliding roof control unit
| Electric wiring diagram for panoramic sliding sunroof | PE77.20-P-2200-97NBA |
