Component Description For Sliding Roof Control Module - GF77.20-P-4108GN

MODEL 166 as of model year 2016 with CODE 414 (Sliding sunroof)

Shows model 166.0

Location

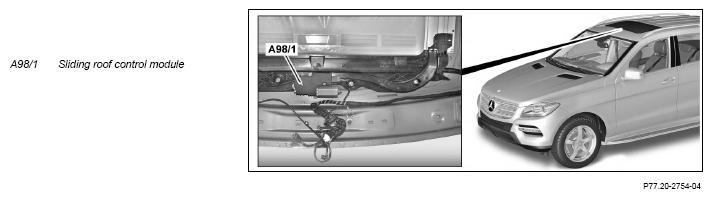

The sliding roof control module is located at the front left on the frame of the sliding roof.

Task

The sliding roof control module has the following tasks:

• Reading in of sensors and signals
• Evaluation of input factors
• Actuation of components

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line (internal)
• Interior CAN (CAN B)

Direct line (internal)

The sliding roof control module reads in the signals from the following sensors over direct lines:

• Hall sensor 1, sliding roof (A98/1b1)
• Hall sensor 2, sliding roof (A98/1b2)

Interior CAN

The signals are read in by the sliding roof control module via the interior CAN. The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The sliding roof control module actuates the sliding roof motor (A98/1m1) via a direct line.
