Remove/Install Door Module - AR72.10-P-0900GQ
MODEL 166 except CODE Z04 (Light armoring) except CODE Z05 (B5 armoring on special protection version)
MODEL 292

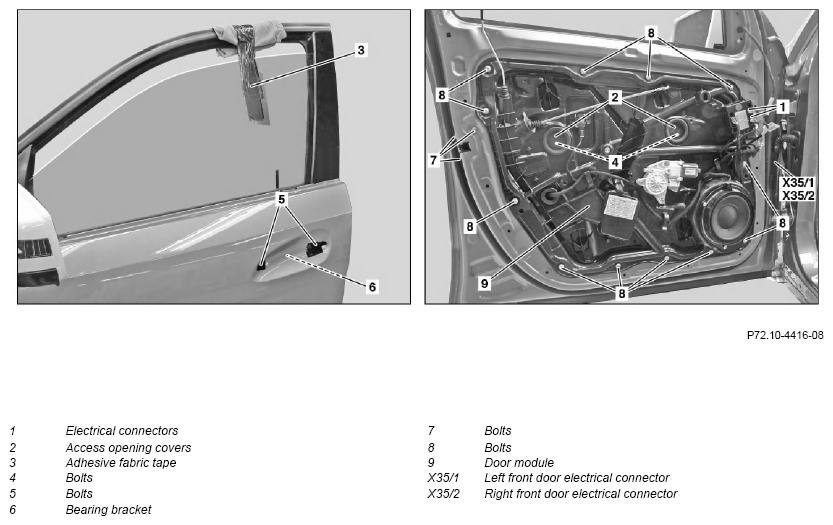

Shown on model 166.004
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from contusions to hands if window glass is not secured | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove front door lining | Model 166 with code 221 (Central locking) with code 583 (Front power windows (2 doors) with convenience feature) except code Z04 (Light armoring) except code Z05 (B5 armoring on special protection version) Model 292 |
AR72.10-P-1000GQ |
| 3 | Separate electrical connections (1) | ||
| 4 | Remove outside door handle on front door | AR72.10-P-2400GZ | |
| 5 | Open covers in assembly opening (2) | ||
| 6 | Slacken bolts (4, 5) | Bolts (4) in assembly openings must be accessible. | |
| 7 | Close side window and secure with textile adhesive tape (3) | Otherwise the side window can fall down and be damaged. |
|
| 8 | Push bearing bracket (6) toward front and unhook | ||
| 9 | Remove bolts (7, 8) | ||
| 10 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 11 | Disconnect left front door electrical connector (X35/1) or right front door electrical connector (X35/2) | ||
| 12 | Unclip electrical connector for left front door electrical connector (X35/1) or right front door electrical connector (X35/2) from door | ||
| 13 | Remove door module (9) from door until electrical wiring harness on front door is accessible | ||
| 14 | Remove front door electrical wiring harness | ||
| 15 | Remove door module (9) | ||
| 16 | Install in the reverse order |
