Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MMM
ENGINE 276.8 in MODEL 166.063 as of model year 2016

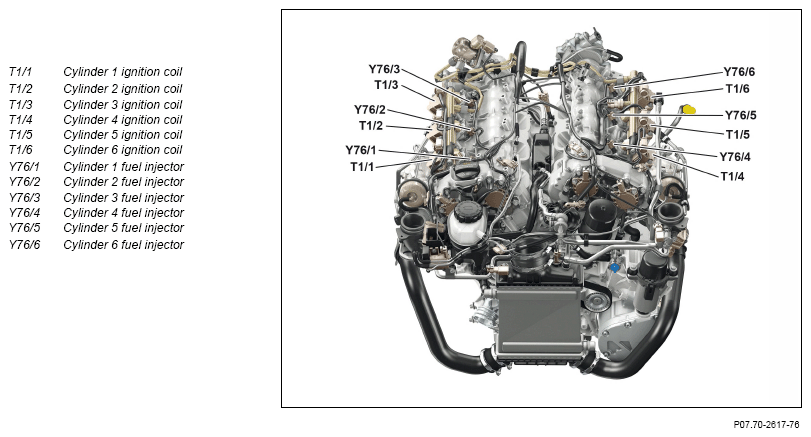

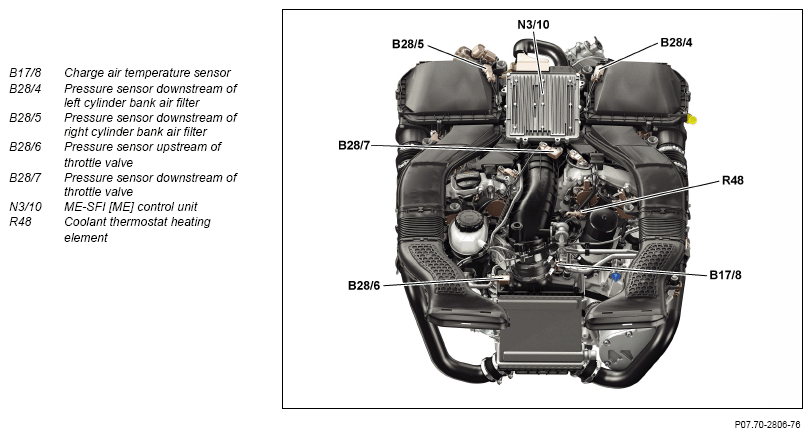

Shown: engine from the top front

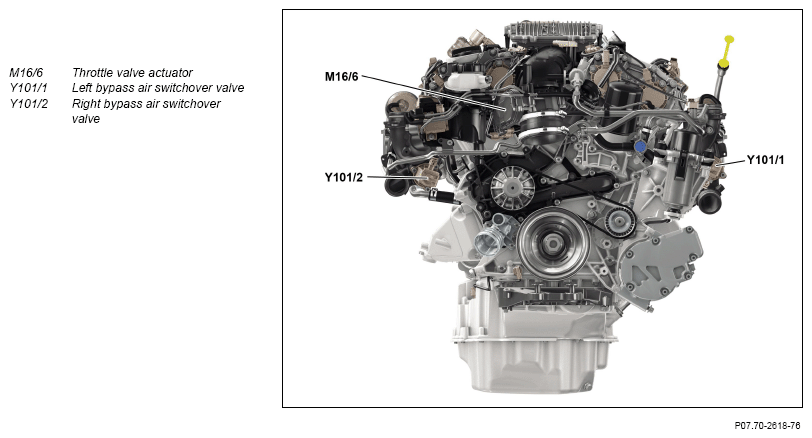

Shown: engine from the front

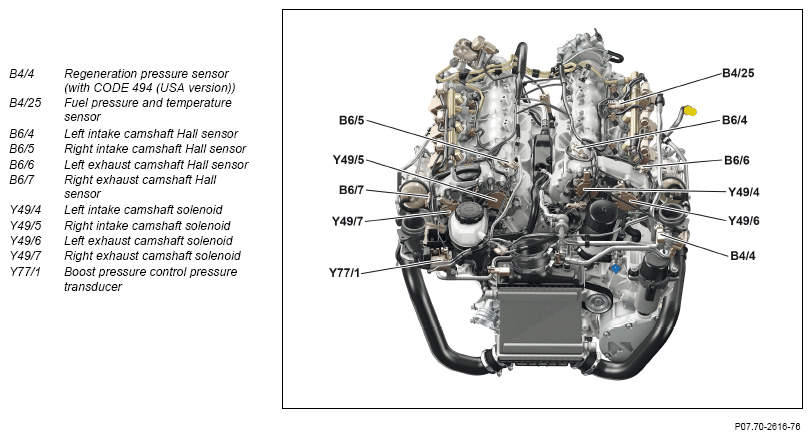

Shown: engine from the top front
Shown: engine from the front

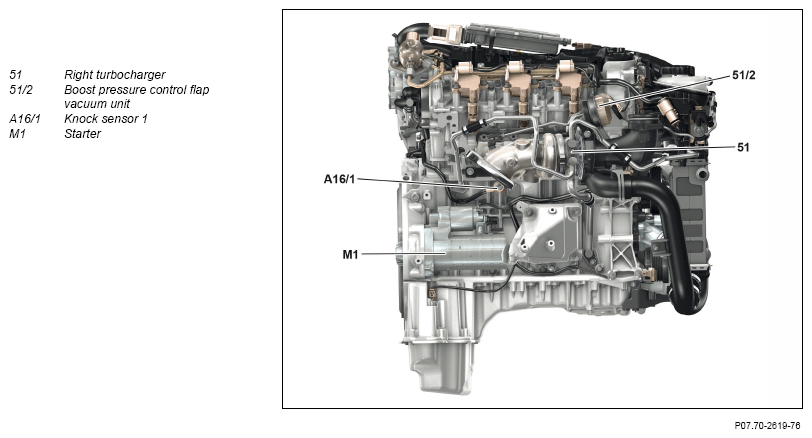

Shown: engine from the right

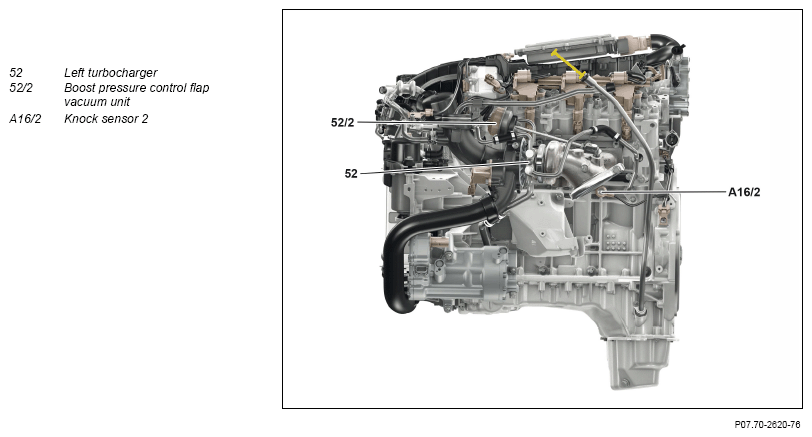

Shown: engine from the left

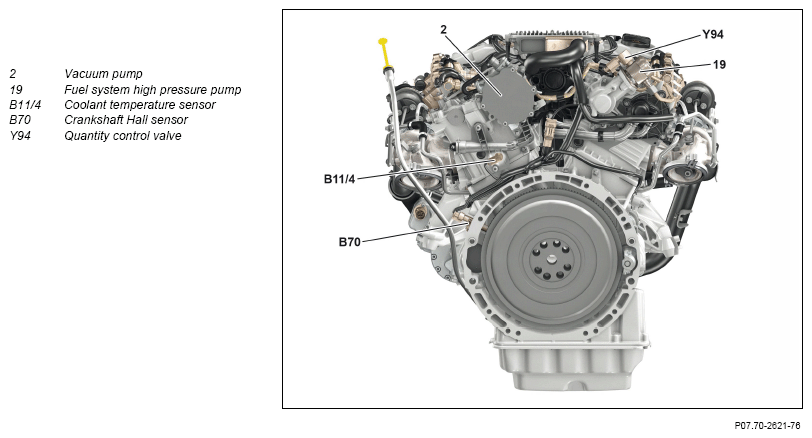

Shown in engine from rear

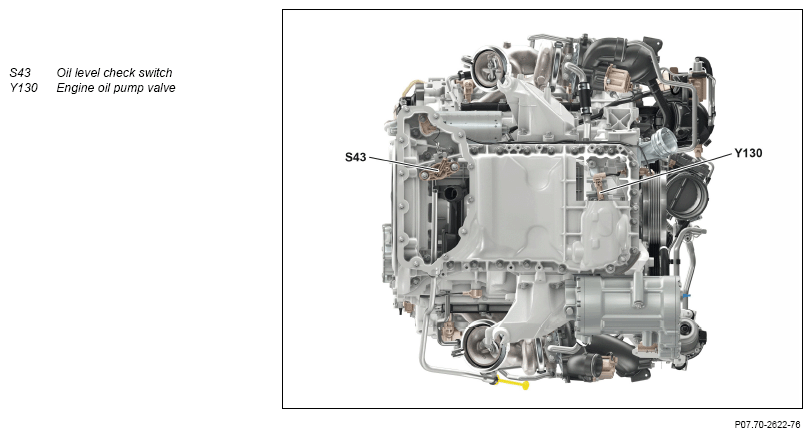

Shown: engine from below

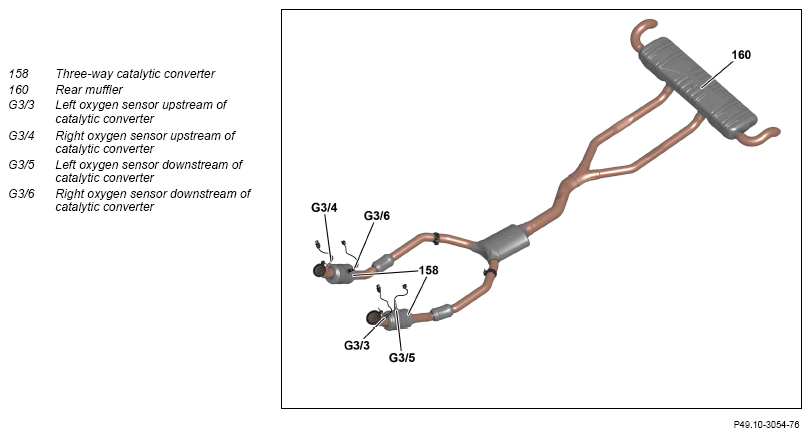

Shown: the exhaust system

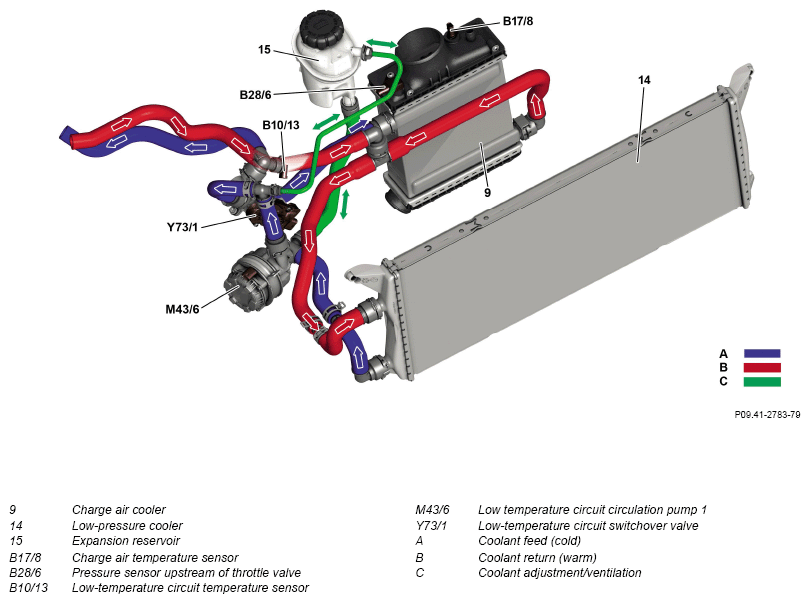

Shown: low-temperature circuit

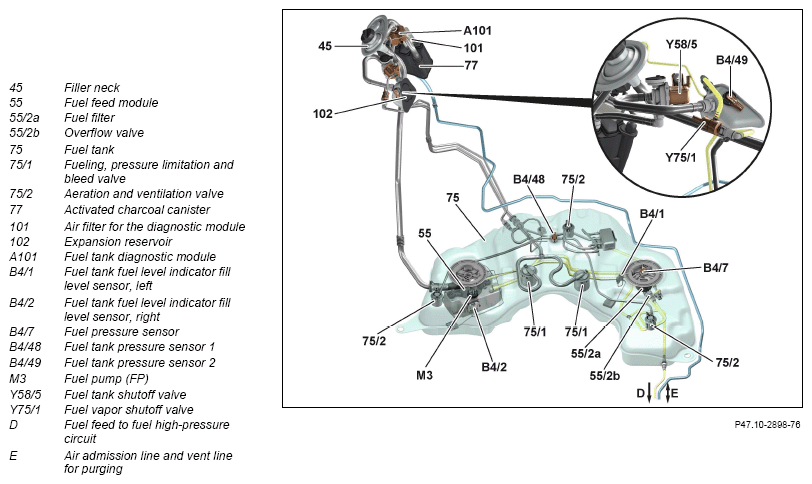

Phantom view of fuel tank (with CODE 494 (USA version))

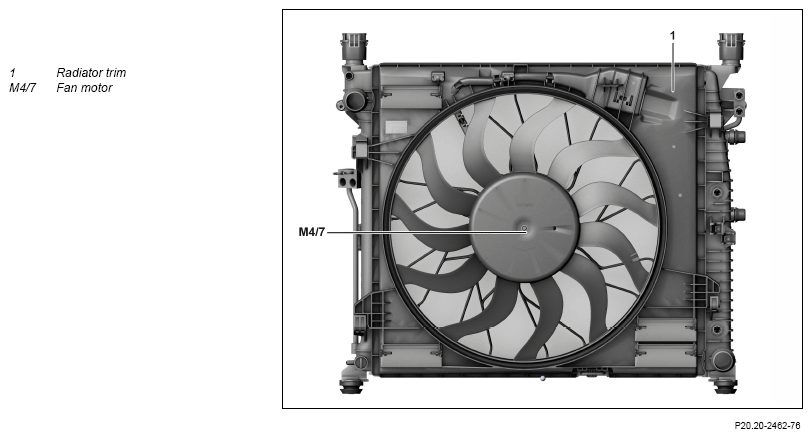

Shown: cooler from the rear

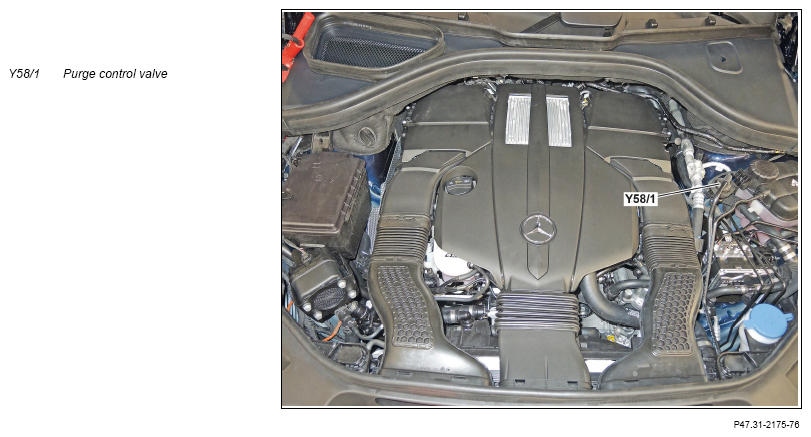

Shown: engine compartment

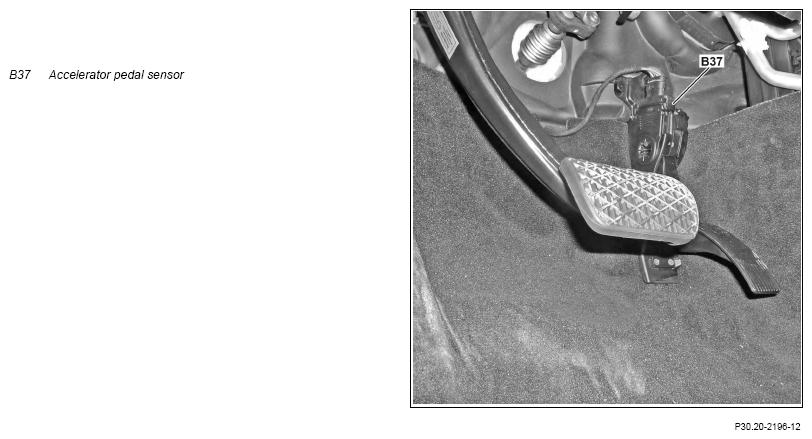

Shown on driver-side footwell

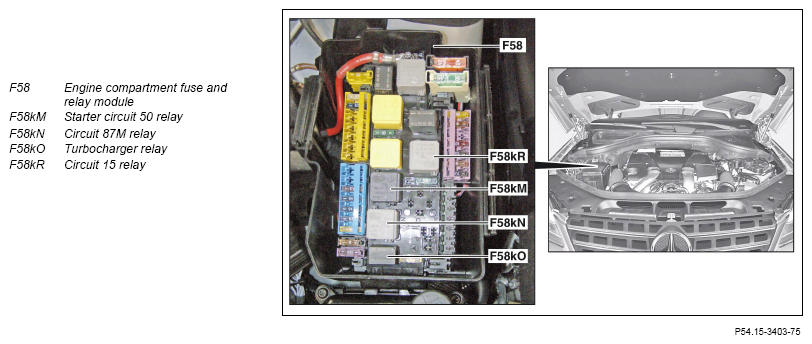

Illustration of engine compartment fuse and relay module

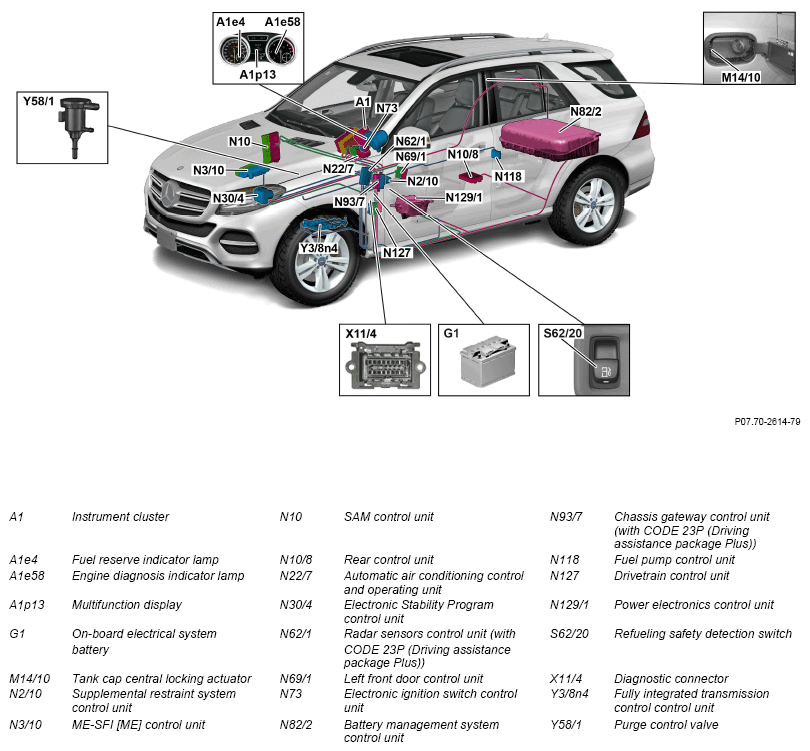

| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MMM | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| Component description for climate control and operating unit | N22/7 | GF83.40-P-3002GN | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GRH | |
| Component description for radar sensors control unit | Model 166.063 with engine 276.8 as of model year 2016 with code 23P (Driving Assistance package) N62/1 | GF30.30-P-3301GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012GRH | |
| Component description for chassis gateway control unit | Engine 276.8 in model 166.063 as of model year 2016 with code 23P (Driving Assistance package) N93/7 | GF54.21-P-1010GN | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MNG | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141GN | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001GRH | |
| Component description for fully integrated transmission control unit | Transmission 724.204 in model 166.063 with engine 276.8 as of model year 2016 Y38n4 | GF27.60-P-5165GRH | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MMM |
