Remove/Install Control And Operating Unit - AR83.40-P-6350GQA
MODEL 166 with CODE (581) Comfort automatic air conditioning Rear control and operating unit
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||

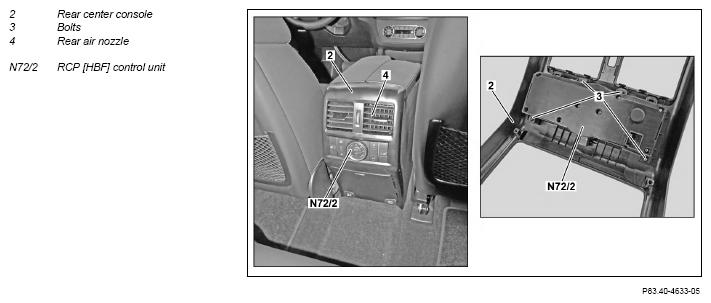

| 2 | Remove rear air nozzle (4) | AR83.10-P-4800GQ | |
| 3 | Remove bolt (3) | ||
| 4 | Unclip RCP control unit (N72/2) on rear center console (2) and remove | ||
| 5 | Install in the reverse order |
