Component Description For Front Passenger Seat Control Unit - GF91.29-P-5241GN

MODEL 166 as of model year 2016

with CODE P64 (Memory package)

MODEL 292

with CODE P64 (Memory package)

Shows model 166.0

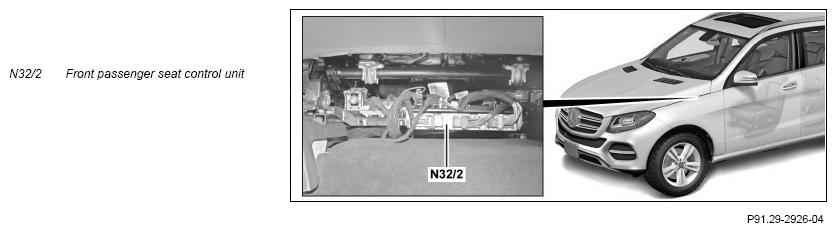

Fig 1: Front Passenger Seat Control Unit Component Location - Model 166 As Of MY 2016 With/Without Code P64

Courtesy of MERCEDES-BENZ USA

Location

The front passenger seat control unit is located at the bottom of the front passenger seat frame.

Task

The front passenger seat control unit is responsible for the following tasks:

Reading in of sensors and signals
Evaluation of input factors
Controlling functions
Actuation of components
Transmitting signals

Reading in of sensors and signals

The input factors are read in via the following connections:

Direct line
Interior CAN (CAN B)

Direct line

The signals from the following sensors are read via direct lines:

Seat fore/aft adjustment Hall sensor, front passenger seat (M28/1b1)
Height adjustment Hall sensor, front passenger seat (M28/2b1)
Hall sensor inclination adjustment, front passenger seat (M28/3b1)
Head restraint adjustment Hall sensor, front passenger seat (M28/4b1)
Backrest inclination Hall sensor, front passenger seat (M28/5b1)

Interior CAN

The signals are read in by the front passenger seat control unit over the interior CAN. The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Controlling functions

The front passenger seat control unit controls the following functions:

Front passenger seat adjustment
Storing the front passenger seat memory settings
Control of collision avoidance feature with rear bench seat
Actuating the PRE-SAFE® positioning function for the front passenger seat

Actuation of components

The following components are actuated via direct lines:

Front passenger seat fore/aft adjustment motor (M28/1)
Front passenger seat height adjustment motor (M28/2)
Front passenger seat inclination adjustment motor (M28/3)
Front passenger seat head restraint adjustment motor (M28/4)
Front passenger seat backrest inclination adjustment motor (M28/5)
Right front seat cushion seat ventilation motors (M18/11) (with CODE 401 (Seat climate control for driver and front passenger))
Right front backrest seat ventilation motors (M18/12) (with CODE 401 (Seat climate control for driver and front passenger))
Right front seat cushion heater pad (R13/3) (with CODE 873 (Seat heater for driver and front passenger))
Right front backrest heater pad (R13/4) (with CODE 873 (Seat heater for driver and front passenger))
Right rear footwell lamp (E17/18) (with CODE 876 (Interior lights package))

MODEL 166

as of model year 2016

with CODE P64 (Memory package)

without CODE 399 (Multicontour front seats with massage function)

MODEL 292

with CODE P64 (Memory package)

without CODE 399 (Multicontour front seats with massage function)

The front passenger seat control unit supplies the front passenger seat lumbar support adjustment control unit (N32/24) with power.

Transmitting signals

The signals are transmitted by the front passenger seat control unit via the interior CAN. The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).

Variants

There are no variants for the hardware of the front passenger seat control unit. The country or left-hand drive vehicle/right hand drive vehicle allocation is software coded.

Wiring diagram of front passenger-side seat control unit

PE91.29-P-2105-97NBA
