Component Description For Weight Sensing System (WSS) Control Unit - GF91.60-P-4069GN

MODEL 166 as of model year 2016

with CODE U10 (Automatic seat occupancy recognition and child seat recognition)

MODEL 292

with CODE U10 (Automatic seat occupancy recognition and child seat recognition)

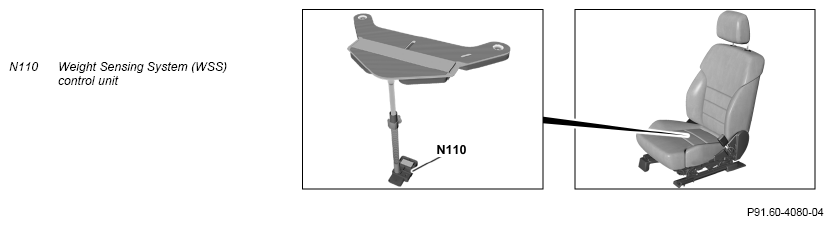

Fig 1: Weight Sensing System (WSS) Control Unit Component Location - Model 166 With Code U10

Courtesy of MERCEDES-BENZ USA

Location

The WSS control unit is located beneath the seat cushion at the front passenger seat cushion frame.

Task

The WSS control unit determines the weight applied to the front passenger seat by means of a pressure measurement in a seat mat filled with silicone. The WSS control unit sends information on the occupancy status of the front passenger seat over the seat occupancy LIN (LIN E2) to the supplemental restraint system control unit (N2/10).
