Component Description For Weight Sensing System (WSS) Control Unit - GF91.60-P-4069GRU

MODEL 166 up to model year 2016 with CODE U10 (Front passenger seat with weight sensor)

Location

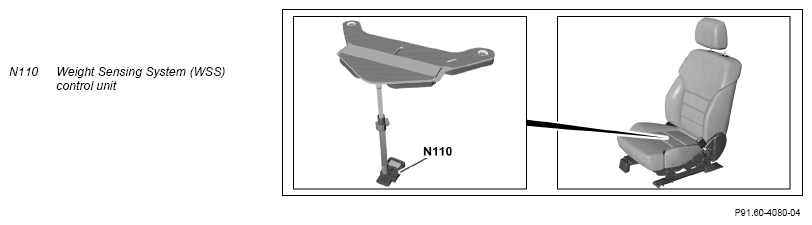

The weight sensing system (WSS) control unit is installed under the seat cushion at the seat cushion frame of the front passenger seat.

Task

The weight sensing system (WSS) control unit determines the weight on the front passenger seat via a pressure measurement in a silicone-filled seat mat.

The signals of the weight sensing system (WSS) control unit are transmitted via the seat occupancy LIN (LIN E2) to the supplemental restraint system control unit (N2/10).
