Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996GR
MODEL 166 up to model year 2016

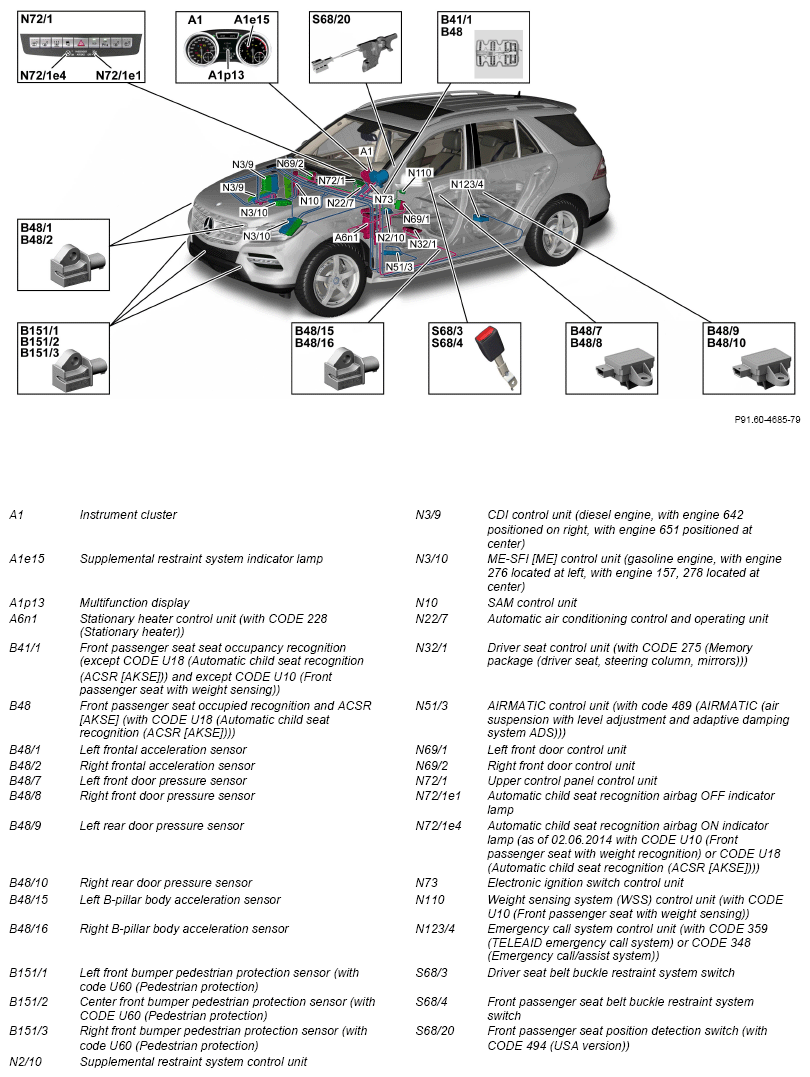

Shows model 166.0

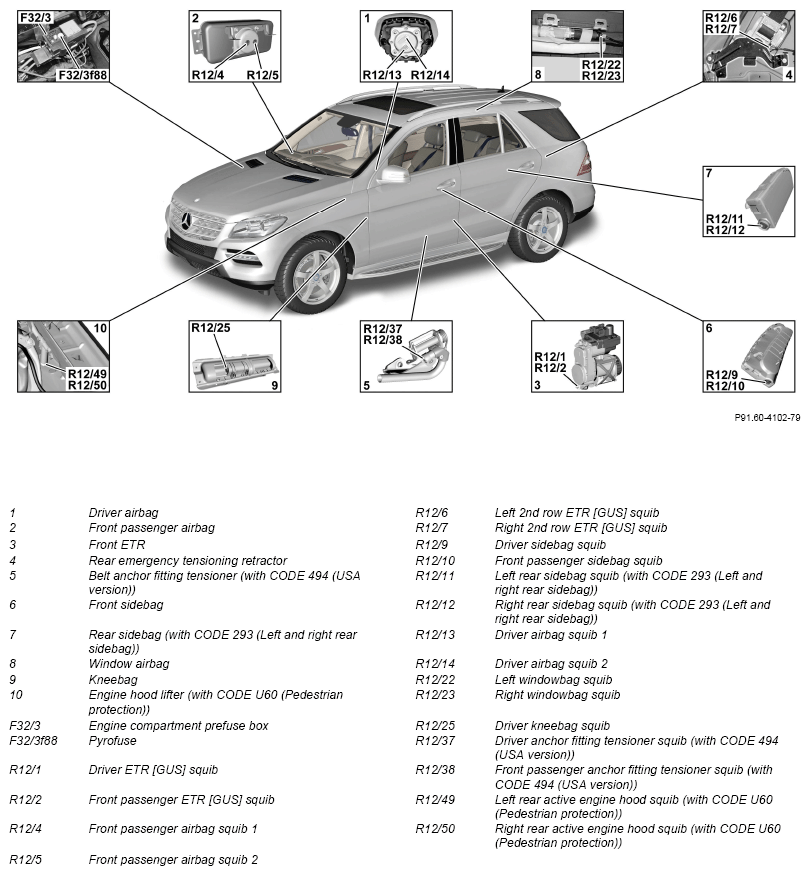

Shows model 166.0
On model 166.0 with CODE 847 (3rd seat row) or model 166.8, the following components are also installed:
- Left 3rd seat row emergency tensioning retractor squib (R12/35)
- Right 3rd seat row emergency tensioning retractor squib (R12/36)
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Stationary heater control unit, component description | MODEL 166 up to model year 2016 with CODE 228 (Auxiliary heater) A6n1 |
GF83.70-P-4066GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 N3/9 |
GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 N3/9 |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMR | |
| MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 |
GF07.61-P-6000MMU | ||
| MODEL 166 with ENGINE 276.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description for automatic air conditioning control and operating unit | N22/7 | GF83.40-P-3000GR | |
| Component description for driver seat control unit | MODEL 166 up to model year 2016 with CODE 275 (Memory package (driver seat, steering column, mirrors)) N32/1 |
GF91.29-P-5231GR | |
| AIRmatic control unit, component description | MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 |
GF32.22-P-5109GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for Weight Sensing System (WSS) control unit | MODEL 166 up to model year 2016 with CODE U10 (Front passenger seat with weight sensor) N110 |
GF91.60-P-4069GRU | |
| Component description for emergency call system control unit | MODEL 166 up to model year 2016 with CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212GRV | |
| MODEL 166 up to model year 2016 with CODE 359 (TELE AID emergency call system) without CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212GRU | ||
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996GR |
