Remove/Install Pedestrian Protection Sensor - AR91.60-P-0950GQ
MODEL 166 (except 166.874) up to model year 2016
with CODE U60 (Active Bonnet (Pedestrian protection))

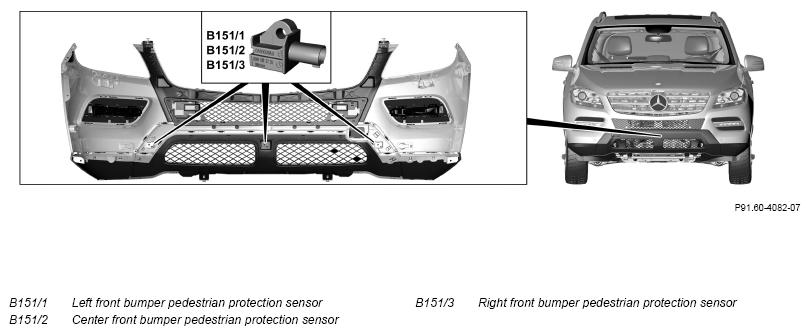

Illustrated on model 166.0

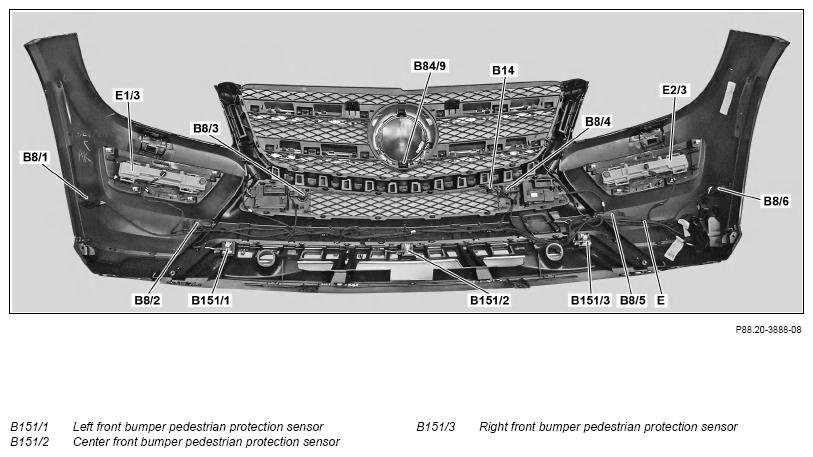

Shown on MODEL 166.8
| Notes on pedestrian protection sensor | AH91.60-P-0001-01A | ||
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 2 | Secure vehicle on the lifting platform and raise | AR00.60-P-0100GZ | |
| 3 | Remove bumper | When removing the left front bumper pedestrian protection sensor (B151/1) or the right front bumper pedestrian protection sensor (B151/3). | AR88.20-P-2000GQ |
| 4 | Remove left impact absorber | When removing left front bumper pedestrian protection sensor (B151/1). | |
| 5 | Remove right impact absorber | When removing right front bumper pedestrian protection sensor (B151/3). | |
| 6 | Release and disconnect electrical connector at respective front bumper pedestrian protection sensor (B151/1, B151/2, B151/3) | ||
| 7 | Remove screw/bolt at respective front bumper pedestrian protection sensor (B151/1, B151/2, B151/3) | *BA91.60-P-1023-01H | |
| 8 | Detach respective front bumper pedestrian protection sensor (B151/1, B151/2, B151/3) from bumper | ||
| 9 | Install in the reverse order |
AIRBAG
| Number | Designation | Model 166 | |
|---|---|---|---|
| BA91.60-P-1023-01H | Screw/bolt, frontal acceleration sensor to bumper | Nm | 4 |
