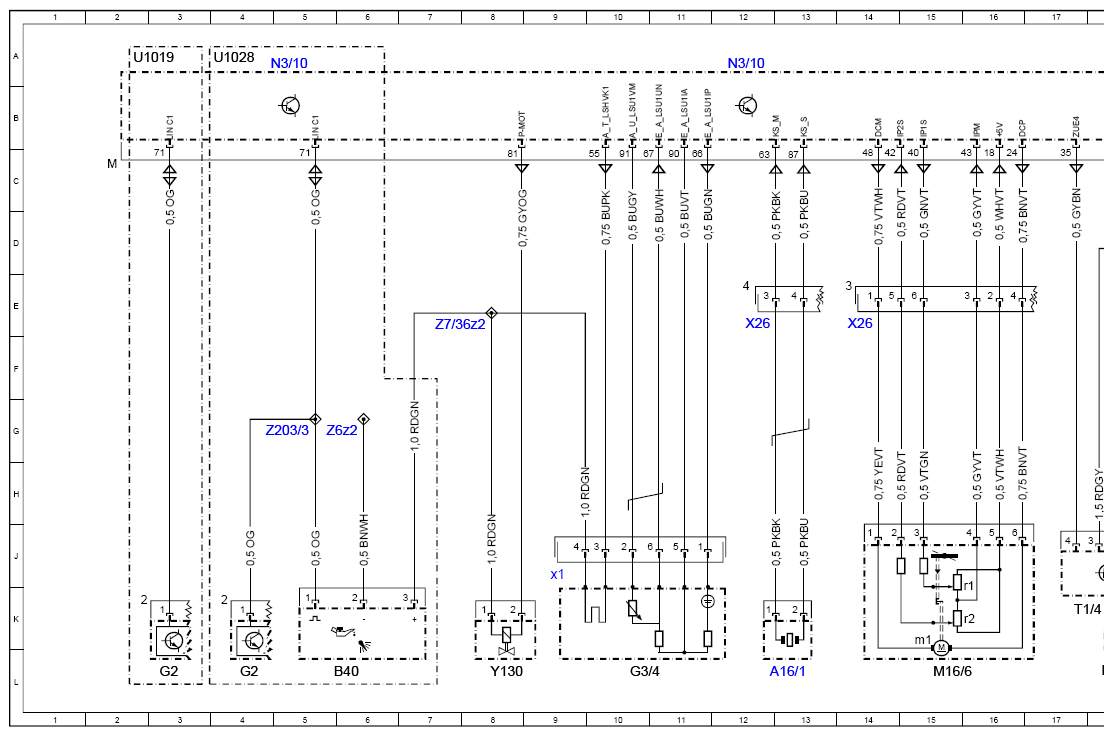

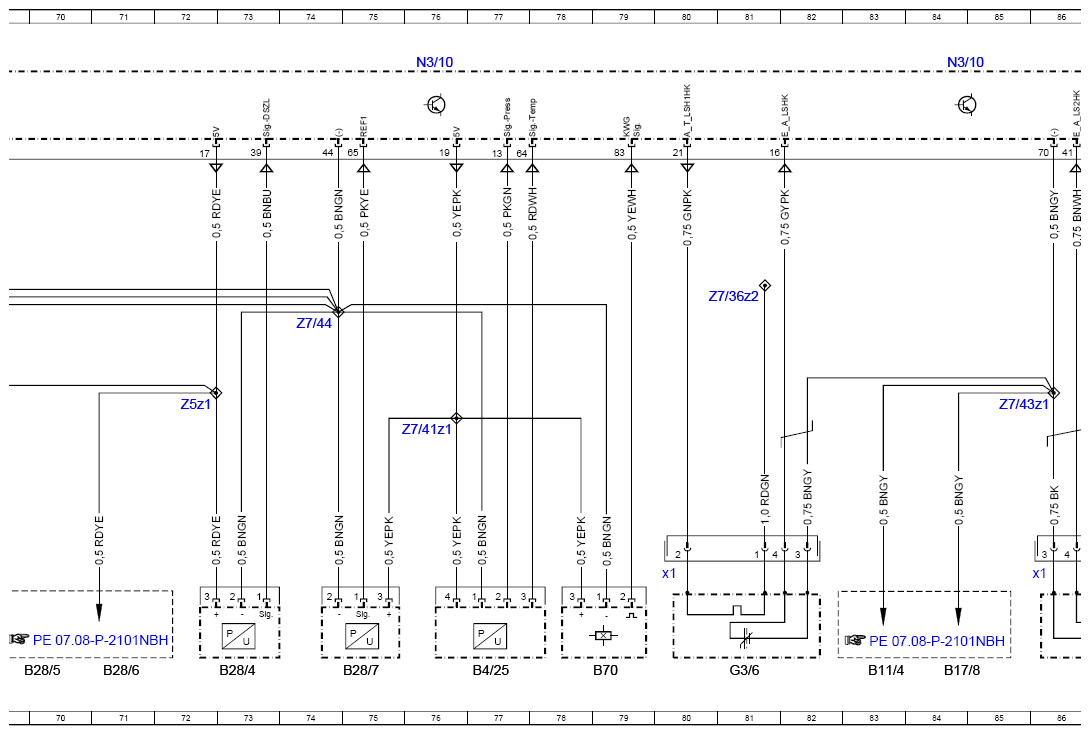

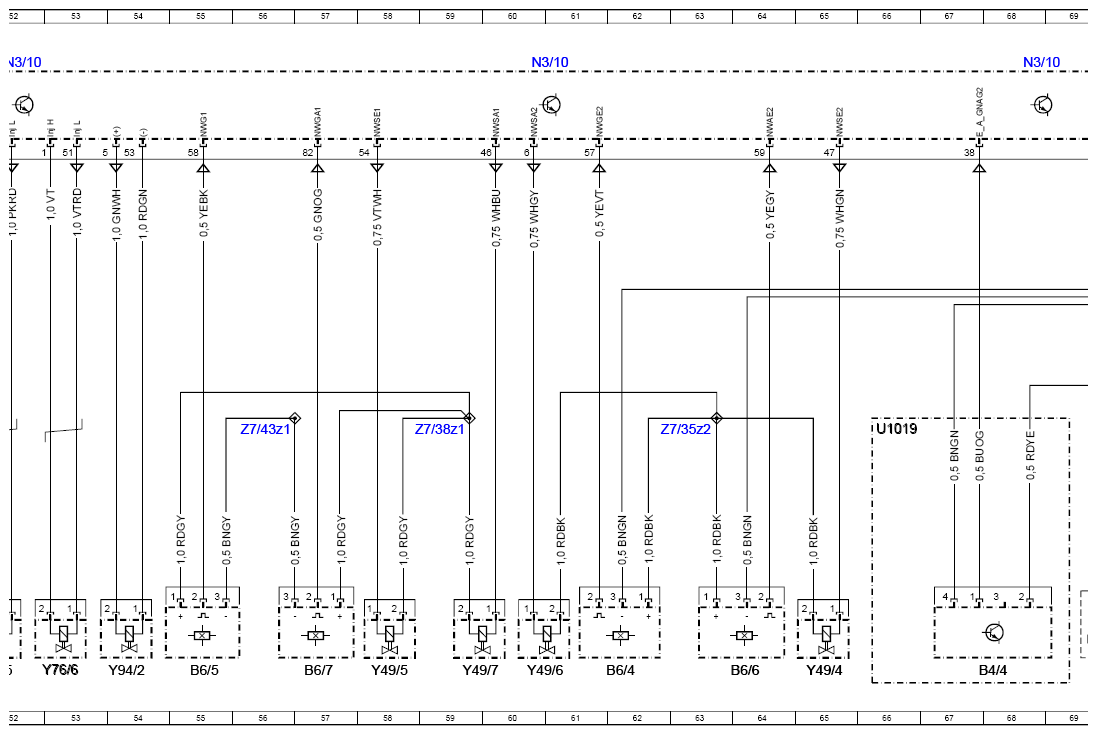

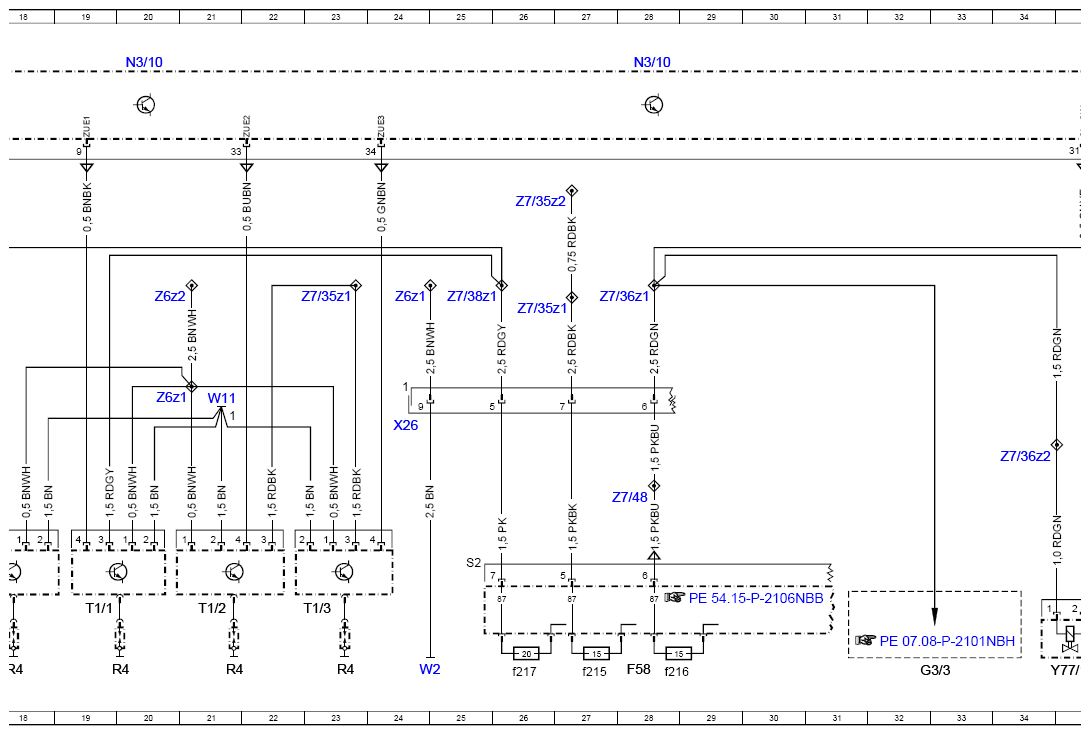

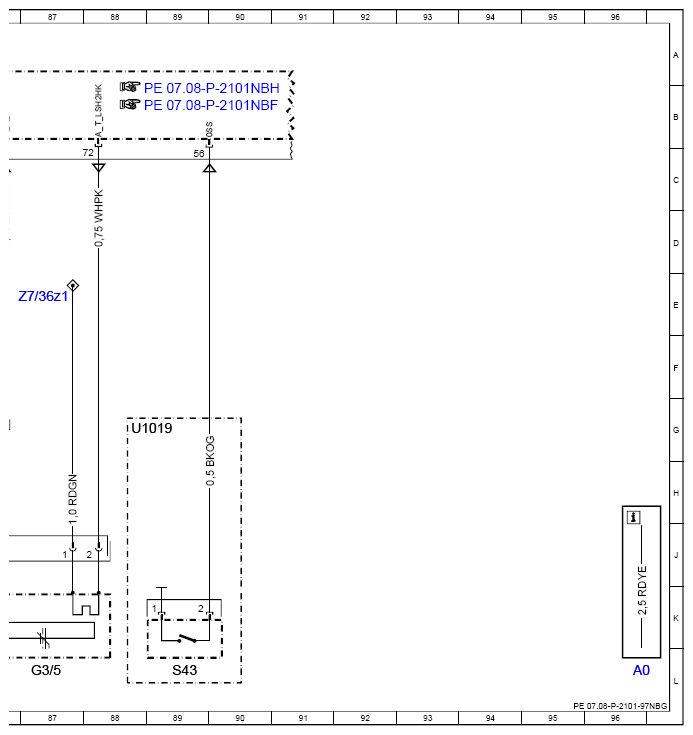

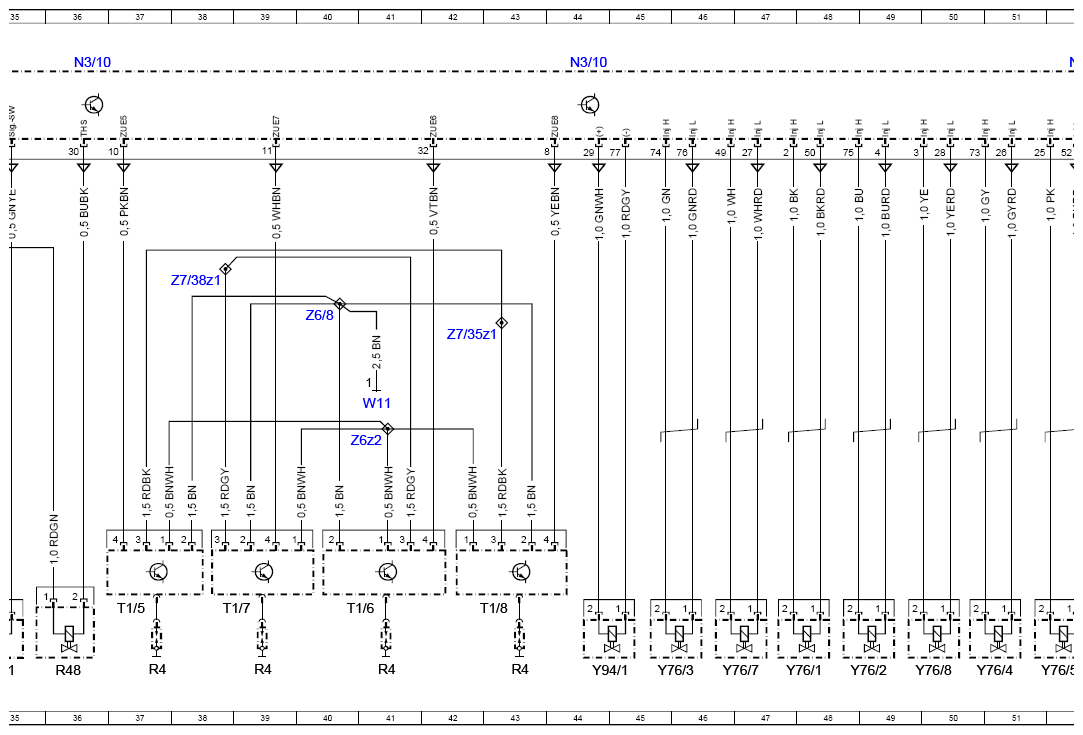

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NBG
ENGINE 157.9, 278.9 in model 166 as of model year 2016 Control unit N3/10, vehicle connector, ENGINE side, sheet 1
ENGINE 157.9, 278.9 in model 292 Control unit N3/10, vehicle connector, ENGINE side, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| A16/1 | Knock sensor 1 | 13L |
| B11/4 | Coolant temperature sensor | 83L |
| B17/8 | Charge air temperature sensor | 84L |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 73L |
| B28/5 | Pressure sensor downstream of right cylinder bank air filter | 70L |
| B28/6 | Pressure sensor upstream of throttle valve | 71L |
| B28/7 | Pressure sensor downstream of throttle valve | 75L |
| B4/25 | Fuel pressure and temperature sensor | 77L |
| B4/4 | Purging pressure sensor | 68L |
| B40 | Oil sensor (oil level, temperature and quality) | 6L |
| B6/4 | Left intake camshaft Hall sensor | 62L |
| B6/5 | Right intake camshaft Hall sensor | 55L |
| B6/6 | Left exhaust camshaft Hall sensor | 64L |
| B6/7 | Right exhaust camshaft Hall sensor | 57L |
| B70 | Crankshaft Hall sensor | 79L |
| F58 | ENGINE compartment fuse and relay module | 28L |
| F58f215 | Fuse 215 | 27L |
| F58f216 | Fuse 216 | 28L |
| F58f217 | Fuse 217 | 26L |
| G2 | Alternator | 3L |
| G2 | Alternator | 4L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 32L |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 10L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 9J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 87L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 86J |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 81L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 80J |
| M16/6 | Throttle valve actuator | 15L |
| M16/6m1 | Actuator motor | 15K |
| M16/6r1 | Actual value potentiometer 1 | 16K |
| M16/6r2 | Actual value potentiometer 2 | 16K |
| N3/10 | ME-SFI [ME] control unit | 5A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| R4 | Spark plugs | 18L |
| R4 | Spark plugs | 20L |
| R4 | Spark plugs | 21L |
| R4 | Spark plugs | 23L |
| R4 | Spark plugs | 37L |
| R4 | Spark plugs | 39L |
| R4 | Spark plugs | 41L |
| R4 | Spark plugs | 43L |
| R48 | Coolant thermostat heating element | 36L |
| S43 | Oil level check switch | 89L |
| T1/1 | Cylinder 1 ignition coil | 19K |
| T1/2 | Cylinder 2 ignition coil | 21K |
| T1/3 | Cylinder 3 ignition coil | 23K |
| T1/4 | Cylinder 4 ignition coil | 17K |
| T1/5 | Cylinder 5 ignition coil | 37K |
| T1/6 | Cylinder 6 ignition coil | 40K |
| T1/7 | Cylinder 7 ignition coil | 38K |
| T1/8 | Cylinder 8 ignition coil | 43K |
| U1019 | Valid for gasoline ENGINE 278 | 2A |
| U1019 | Valid for gasoline ENGINE 278 | 88G |
| U1019 | Valid for gasoline ENGINE 278 | 66G |
| U1028 | Valid for ENGINE 157 | 4A |
| W11 | Combustion ENGINE ground point | 21G |
| W11 | Combustion ENGINE ground point | 41G |
| W2 | Right front ground point at lamp unit | 24L |
| X26 | Interior and ENGINE wiring harness electrical connector | 14E |
| X26 | Interior and ENGINE wiring harness electrical connector | 24G |
| X26 | Interior and ENGINE wiring harness electrical connector | 12E |
| Y130 | ENGINE oil pump valve | 8L |
| Y49/4 | Left intake camshaft solenoid | 65L |
| Y49/5 | Right intake camshaft solenoid | 58L |
| Y49/6 | Left exhaust camshaft solenoid | 60L |
| Y49/7 | Right exhaust camshaft solenoid | 59L |
| Y76/1 | Cylinder 1 fuel injector | 47L |
| Y76/2 | Cylinder 2 fuel injector | 49L |
| Y76/3 | Cylinder 3 fuel injector | 45L |
| Y76/4 | Cylinder 4 fuel injector | 51L |
| Y76/5 | Cylinder 5 fuel injector | 52L |
| Y76/6 | Cylinder 6 fuel injector | 53L |
| Y76/7 | Cylinder 7 fuel injector | 46L |
| Y76/8 | Cylinder 8 fuel injector | 50L |
| Y77/1 | Boost pressure control pressure transducer | 35L |
| Y94/1 | Left quantity control valve | 44L |
| Y94/2 | Right quantity control valve | 54L |
| Z203/3 | Alternator LIN signal connector sleeve | 5G |
| Z5z1 | Sensor voltage supply connector sleeve | 72G |
| Z6/8 | Ground connection connector sleeve | 40E |
| Z6z1 | Circuit 31 connector sleeve | 20G |
| Z6z1 | Circuit 31 connector sleeve | 24E |
| Z6z2 | Circuit 31 connector sleeve | 6G |
| Z6z2 | Circuit 31 connector sleeve | 20E |
| Z6z2 | Circuit 31 connector sleeve | 41G |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 23E |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 26E |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 42F |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 63G |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 26C |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 28E |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 87E |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 7E |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 34G |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 81E |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 38E |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 25E |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 59G |
| Z7/41z1 | Sensor power supply connector sleeve | 76G |
| Z7/43z1 | Sensor ground line connector sleeve | 56G |
| Z7/43z1 | Sensor ground line connector sleeve | 85G |
| Z7/44 | Ground connection connector sleeve | 74E |
| Z7/48 | Circuit 87D2 connector sleeve | 28H |
