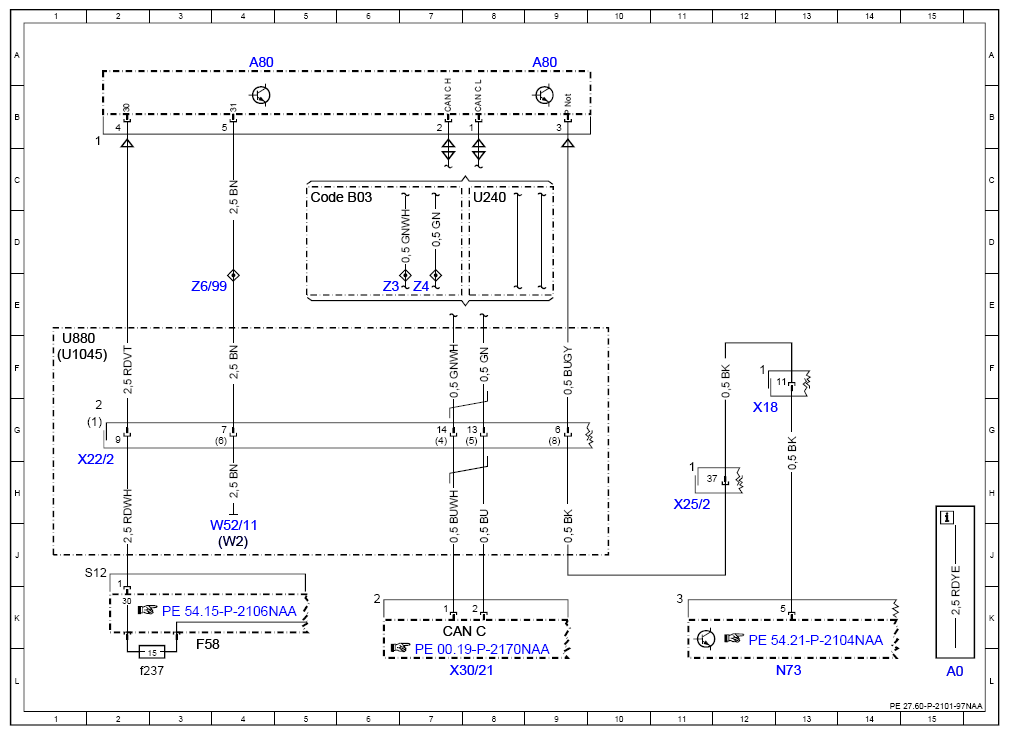

(Wiring Diagram For Intelligent Servo Module (ISM) Control Unit - PE27.60-P-2101-97NAA)
Transmission 722.9 in model 166 up to model year 2016 Control unit A80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A80 | Intelligent servo module for DIRECT SELECT | 4A |
| A80 | Intelligent servo module for DIRECT SELECT | 9A |
| CAN C | Drive train CAN | 7K |
| Code B03 | EC0 start/stop function | 5C |
| F58 | Engine compartment fuse and relay module | 3L |
| F58f237 | Fuse 237 | 3L |
| N73 | Electronic ignition switch control unit | 13L |
| U1045 | Not valid for diesel engine 642 | 1F |
| U240 | Valid for all except EC0 start/stop function | 8C |
| U880 | Valid for engine 642 | 1F |
| W2 | Right front ground point at lamp unit | 4J |
| W52/11 | Upper right front longitudinal member ground point | 4J |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 12G |
| X22/2 | Automatic transmission/intelligent servo module electrical connector | 2H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 11H |
| X30/21 | Drive train CAN voltage distributor electrical connector | 7L |
| Z3 | Tml. 15 connector sleeve | 6E |
| Z4 | Circuit 15/30 connector sleeve | 7E |
| Z6/99 | Transmission circuit 31 connector sleeve | 3E |
