(Component Description For Audio/COMAND® Control Panel - GF54.21-P-4501GR)
Model 166
up to Model year 2016
Shown on Model 166.0

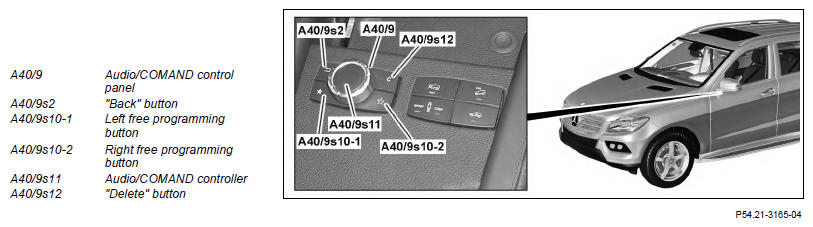

Location
The Audio/COMAND® control panel is located on the center console between the front seats.
Task
The Audio/COMAND® control panel includes:
- Audio/COMAND® controller for navigation within the menu and selection of menu items, for operation of character bar on Audio/COMAND® display (A40/8) and for navigating on the Internet
- "Back" button, to jump back a level within a menu
- "Delete" button, to delete individual characters or complete entries
- Left free programming button and right free programming button, to jump to a user-defined menu or to be able to activate the multicontour seats (with CODE 399 (Front multicontour seats with massage function)) function
The Audio/COMAND® control panel performs the following:
- Operating unit for entertainment and communication systems integrated into vehicle
- Transmission and reception of signals
- Actuation of system components
Operating unit for entertainment and communication systems integrated into vehicle
The audio equipment provides the user with a structured and standard interface for the following system components, which can be operated using the Audio/COMAND® control panel:
Audio:
- Radio
- CD (also MP3)
- AUX electrical connection (X39/45) up to 13.12.2013, for external audio equipment (except CODE 518 (Media Interface))
- USB electrical connector (X115)
- Media interface electrical connector (X18/70) (with CODE 518 (Media interface))
Video:
- DVD audio/DVD video (with CODE 512 (COMAND® APS with DVD changer), CODE 527 (COMAND® APS with single DVD drive (with navigation)) and CODE 528 (COMAND® incl. DVD changer))
- TV (with CODE 863 (Digital/analog TV tuner) or CODE 865 (TV tuner))
- Telephone
- Internet (with CODE 527 (COMAND® APS with single DVD drive (with navigation)), with CODE 512 (COMAND® APS with DVD changer) except CODE 494 (USA version), with CODE 512 (COMAND® APS with DVD changer) with CODE 348 (Emergency call/Assist system))
- Navigation (with CODE 512 (COMAND® APS with DVD changer), with CODE 527 (COMAND® APS with single DVD drive (with navigation)))
Transmission and reception of signals
The signals are sent and received over the following connections:
- Direct lines
- Controller Area Network (data bus/CAN bus) (CAN)
Direct lines
The Audio/COMAND® control panel contains the following direct connections:
- Terminal 30g
- Circuit 31
Controller Area Network (data bus/CAN bus) (CAN)
The Audio/COMAND® control panel sends control data to the components of the telematics CAN (CAN A).
Actuation of system components
The Audio/COMAND® control panel can be used to select the audio equipment functions.

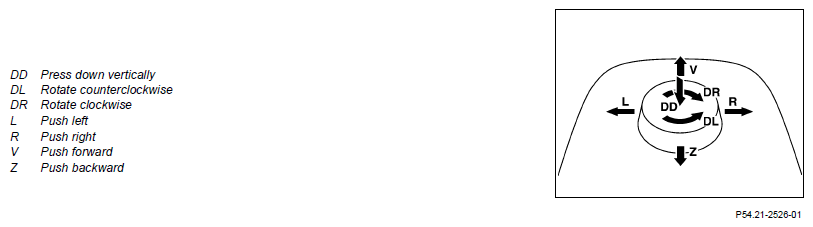

Schematic view of operating functions
The buttons are designed as push/push buttons.
The following individual operations are possible with the Audio/COMAND® control panel:
- Press: Down vertically
- Turn: To left or right
- Slide: In four quadrants (Y and X direction, and in diagonal direction)
| Technical data Designation | Unit | Values | Tolerance range | Remarks |
|---|---|---|---|---|
| Audio/COMAND® control panel (A40/9) | ||||
| Voltage supply | V | 12...15 | Battery voltage U B | |
| Voltage limits | V | 9 | Minimum U Bmin | |
| V | 16 | Maximum U Bmax | ||
| Power consumption | A | Unknown | Readiness (I B ) | |
| mA | 70 | Action (I Action ) | ||
| mA | < 0.1 | No-load current I 0 | ||
| Reverse polarity protection | Yes | |||
| Additional specific parameters | None | |||
| Special features | None | |||
| Flash capability/coding capability | YES/k. A. |
| Wiring diagram, front central operating unit | A40/9 | PE82.00-P-2060-97NAA |
