(Component Description For Weight Sensing System (WSS) Control Unit - GF91.60-P-4069GRU)

MODEL 166

up to model year 2016

with CODE U10 (Front passenger seat with weight sensor)

Courtesy of MERCEDES-BENZ USA

Location

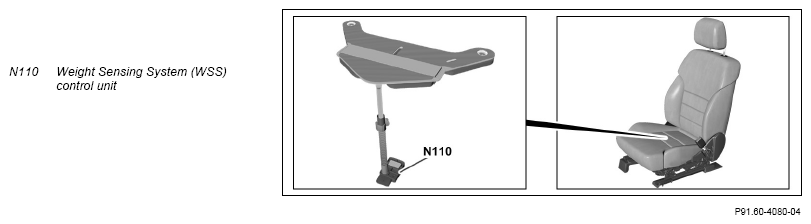

The weight sensing system (WSS) control unit is installed under the seat cushion at the seat cushion frame of the front passenger seat.

Task

The weight sensing system (WSS) control unit determines the weight on the front passenger seat via a pressure measurement in a silicone-filled seat mat.

The signals of the weight sensing system (WSS) control unit are transmitted via the seat occupancy LIN (LIN E2) to the supplemental restraint system control unit (N2/10).
