Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996GN
Model 166
as of model year 2016
Model 292

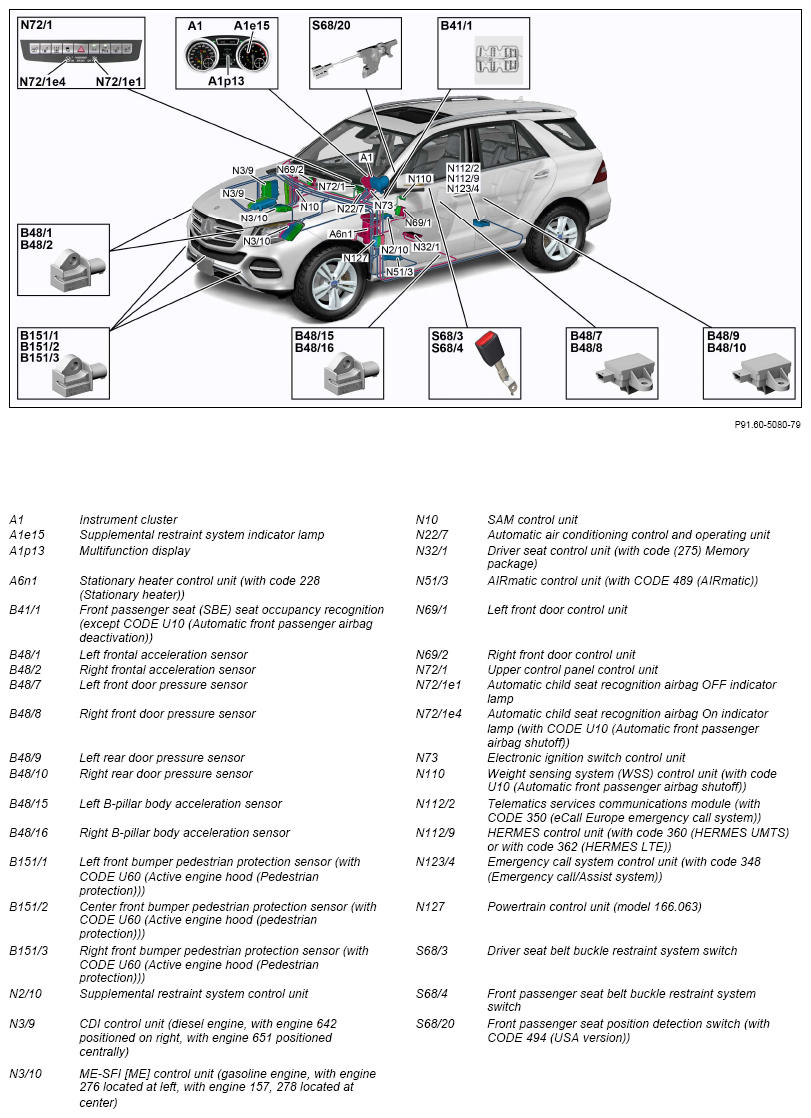

Shows model 166.0

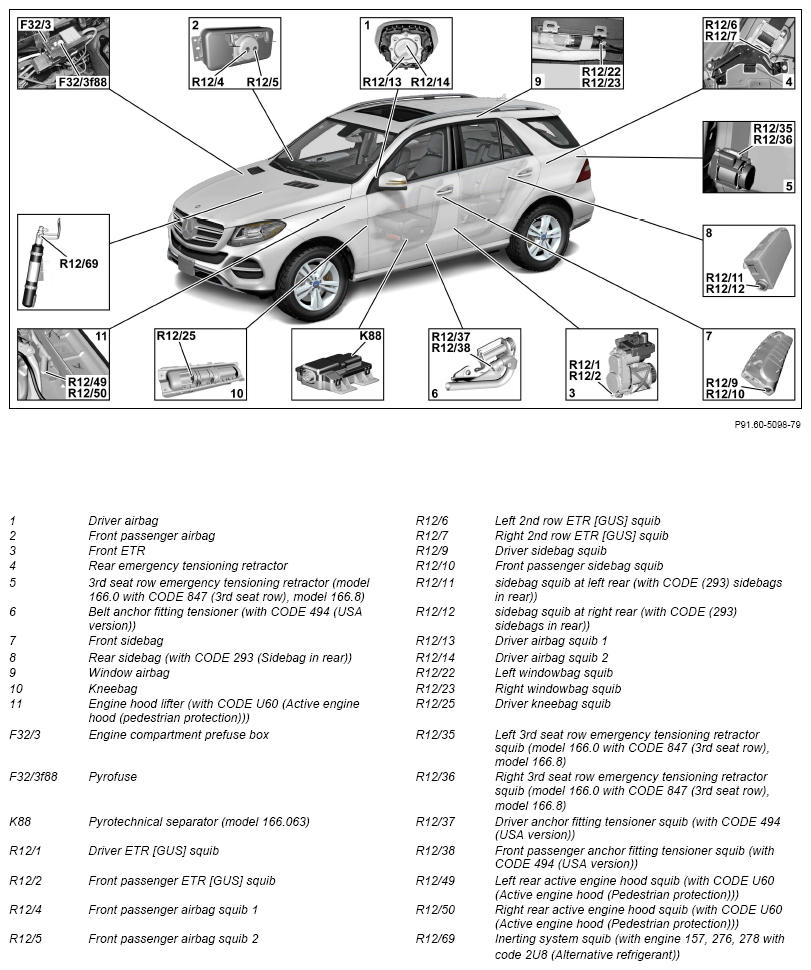

Shows model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Stationary heater control unit, component description | Model 166 as of model year 2016 with code 228 (Auxiliary heater) Model 292 with code 228 (Auxiliary heater) A6n1 | GF83.70-P-4066GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | Model 166 with engine 642.8 as of model year 2016 Model 292 with engine 642.8 N3/9 | GF07.16-P-6000OGF | |
| Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 N3/9 | GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | Model 166 with engine 157.9, 278.9 as of model year 2016 Model 292 with engine 157.9, 278.9 N3/10 | GF07.61-P-6000MMY | |
| Model 166 (except 166.063) with engine 276.8 as of model year 2016 Model 292 with engine 276.8 N3/10 | GF07.61-P-6000MMX | ||
| Model 166.063 with engine 276.8 as of model year 2016 N3/10 | GF07.61-P-6000MMM | ||
| Model 166 with engine 276.9 as of model year 2016 N3/10 | GF07.61-P-6000MNG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002GN | |
| Component description for driver seat control unit | Model 166 as of model year 2016 with code 275 (Memory package) Model 292 with code 275 (Memory package) N32/1 | GF91.29-P-5231GN | |
| AIRMATIC control unit, component description | Model 166 as of model year 2016 with code 489 (AIRMATIC) Model 292 with code 489 (AIRMATIC) N51/3 | GF32.22-P-5110GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for Weight Sensing System (WSS) control unit | Model 166 as of model year 2016 with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 292 with code U10 (Automatic seat occupancy recognition and child seat recognition) N110 | GF91.60-P-4069GN | |
| Telematics services communications module, component description | Model 166 as of model year 2016 up to model year 2017 with code 350 (Ecall emergency call system, Europe) Model 292 up to model year 2017 with code 350 (Ecall emergency call system, Europe) N112/2 | GF82.85-P-0220GN | |
| HERMES control unit, component description | Model 166 as of model year 2016 with code 360 (HERMES UMTS) Model 166 as of model year 2016 with code 362 (HERMES LTE) Model 292 with code 360 (HERMES UMTS) Model 292 with code 362 (HERMES LTE) N112/9 | GF82.85-P-0221GN | |
| Component description for emergency call system control unit | Model 166 as of model year 2016 up to model year 2017 with code 348 (Emergency call/assistant system) Model 292 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212GNU | |
| Drivetrain control unit, component description | Model 166.063 with engine 276.8 as of model year 2016 N127 | GF54.21-P-2141GN | |
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996GN |
