(Overview Of System Components, Transfer Case (VG) - GF28.10-P-9998VGC)
MODEL 166 with TRANSMISSION 722.9
up to model year 2016

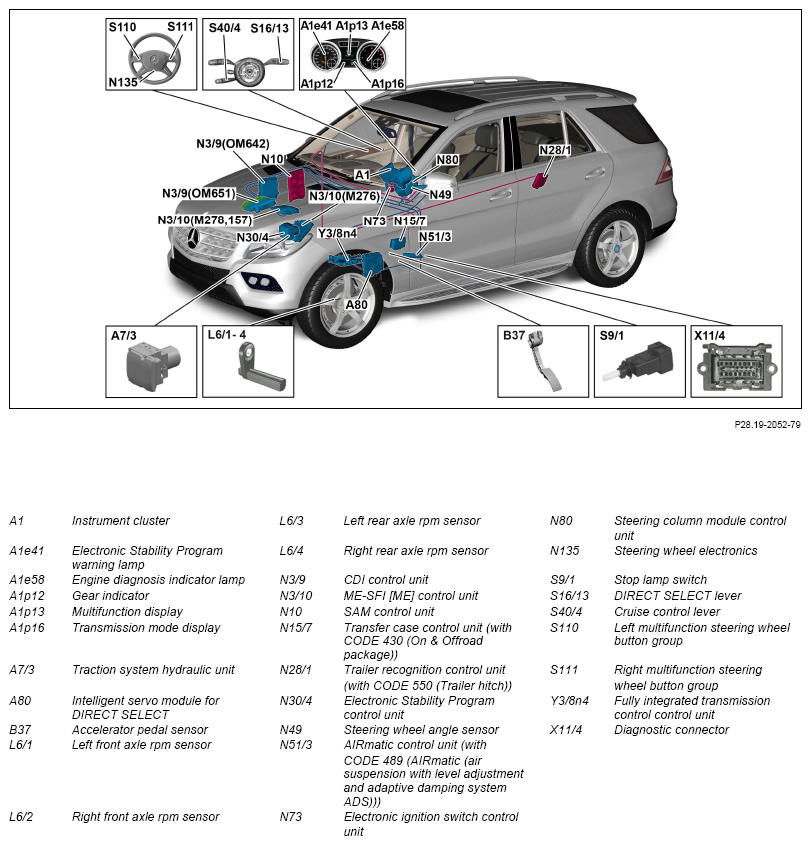

Illustrated on model 166.0

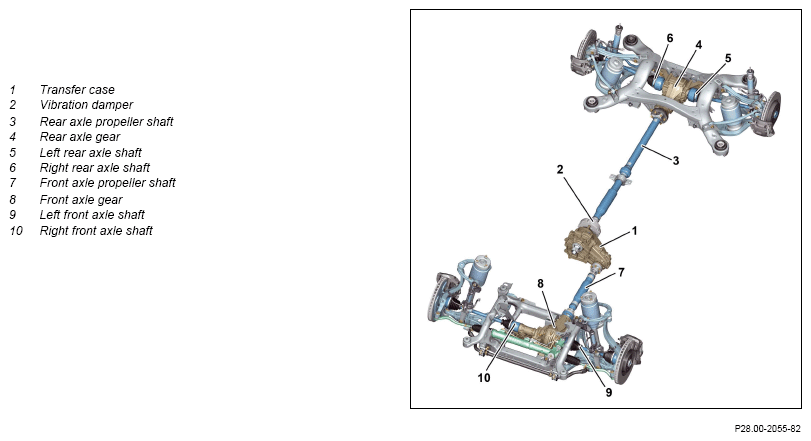

Shown on transfer case at left and right

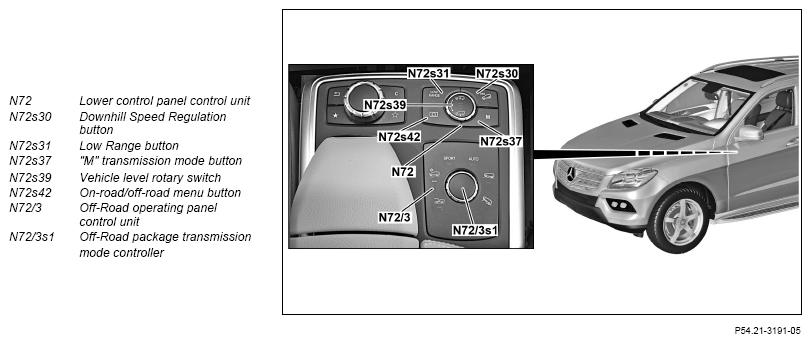

View of center console from above (with CODE 430 (On & Offroad package)), shown on model 166.0

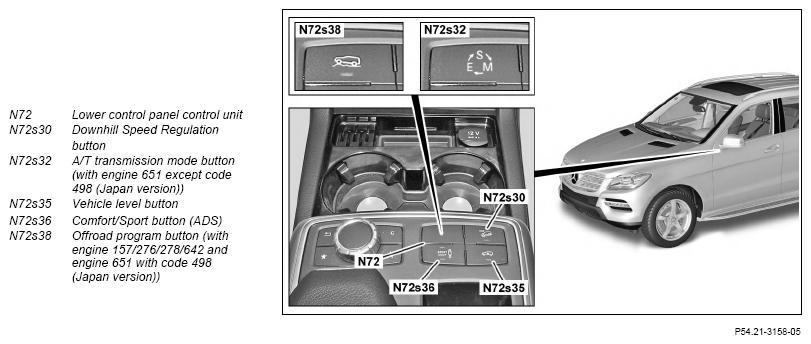

View of center console from above, (with CODE 489 (AIRmatic (air suspension with level adjustment and adaptive damping system))) shown on model 166.0

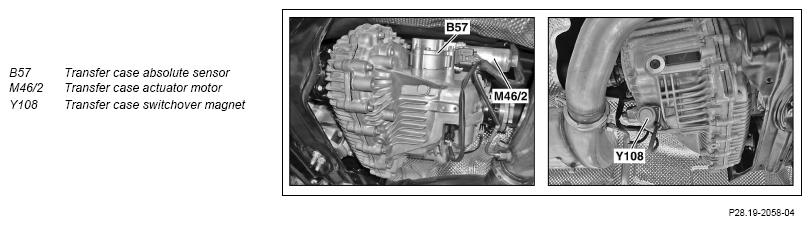

Shown on mechanical components (except CODE 430 (On & Offroad package))
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for intelligent servo module for DIRECT SELECT | A80 | GF27.19-P-4020AHA | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 with TRANSMISSION 722.9 up to model year 2016 N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 with TRANSMISSION 722.9 up to model year 2016 N3/9 |
GF07.16-P-6000OLG | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 276.9 with TRANSMISSION 722.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMG | |
| MODEL 166 with ENGINE 157.9 with TRANSMISSION 722.9 up to model year 2016 Model 166 with ENGINE 278.9 with TRANSMISSION 722.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMR | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description of transfer case control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) N15/7 |
GF28.19-P-3200VGC | |
| Component description for trailer recognition control unit | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| AIRmatic control unit, component description | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3 |
GF32.22-P-5109GR | |
| Lower control panel control unit, component description | N72 | GF54.21-P-6060GR | |
| Offroad operating panel, component description | MODEL 166 with TRANSMISSION 722.9 up to model year 2016 with CODE 430 (On & off-road package) N72/3 |
GF54.21-P-3520VGC | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GR | |
| Component description for fully integrated transmission control unit | Y3/8n4 | GF27.60-P-5165AHA | |
| Table of contents for function description of transfer case (VG) | GF28.10-P-0999VGC |
