Overview Of System Components, Transfer Case (VG) - GF28.10-P-9998VGF
MODEL 166 with TRANSMISSION 724.2
MODEL 166 with TRANSMISSION 725.0
as of model year 2016
MODEL 292 with TRANSMISSION 725.0

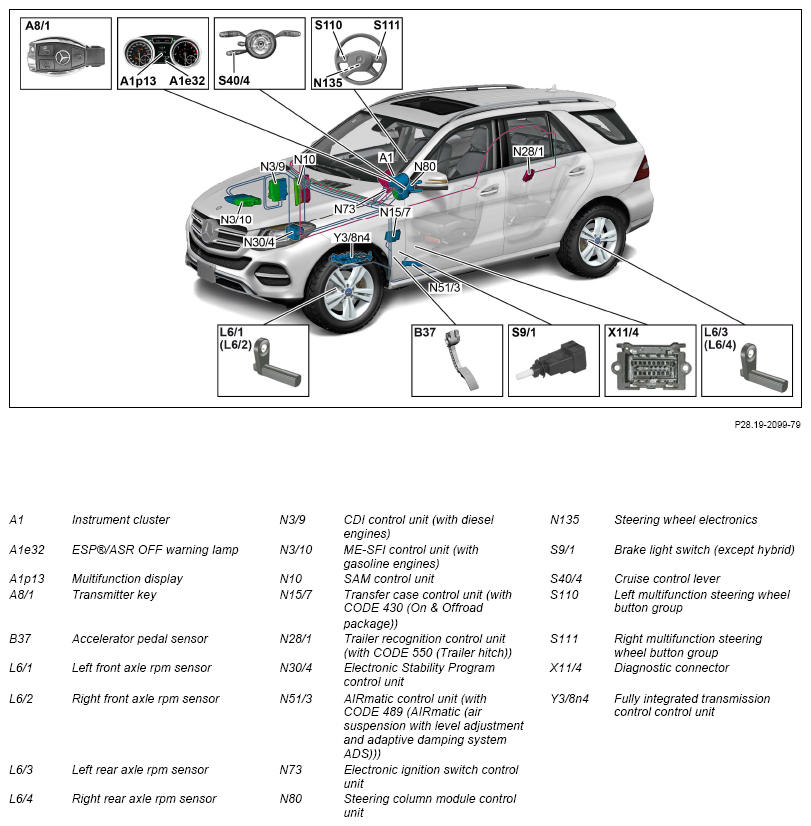

Phantom view, shown on model 166.0 as of model year 2016

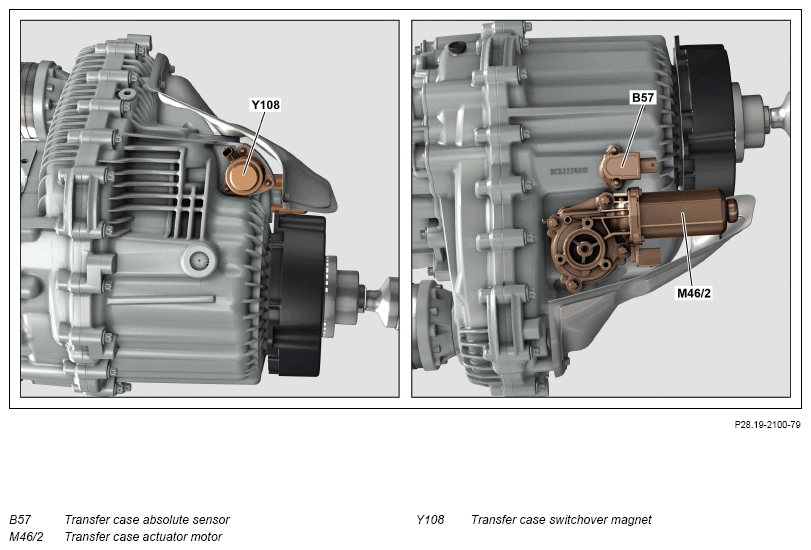

Shown on transfer case from left and below, on model 166.0 j

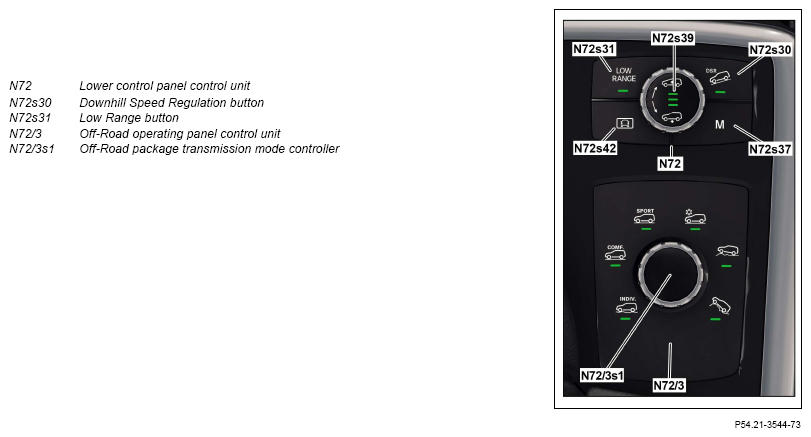

View of center console on vehicles with CODE 430 (On & Offroad package), shown on model 166.0

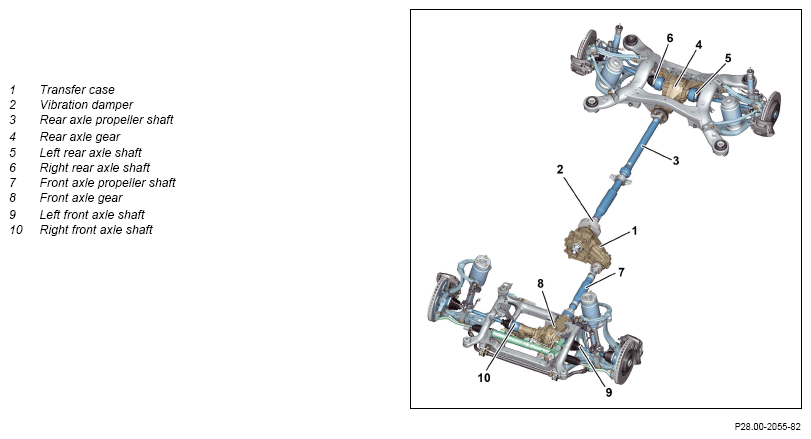

Shown on mechanical components (except CODE 430 (On & Offroad package))
| Component description for instrument cluster | MODEL 166 with TRANSMISSION 724.2 as of model year 2016 Model 166 with TRANSMISSION 725.0 as of model year 2016 Model 292 with TRANSMISSION 725.0 A1, A1e32, A1p13 |
GF54.30-P-6000GN | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 with TRANSMISSION 725.0 as of model year 2016 Model 292 with ENGINE 642.8 with TRANSMISSION 725.0 N3/9 |
GF07.16-P-6000OGF | |
| Component description for ME-SFI (ME) control unit | MODEL 166.063 with ENGINE 276.8 with TRANSMISSION 724.2 as of model year 2016 Model 166.063 with ENGINE 276.8 with TRANSMISSION 725.0 as of model year 2016 N3/10 |
GF07.61-P-6000MMM | |
| MODEL 166 with ENGINE 278.9 with TRANSMISSION 725.0 as of model year 2016 Model 292 with ENGINE 278.9 with TRANSMISSION 725.0 N3/10 |
GF07.61-P-6000MMY | ||
| SAM control unit, component description | MODEL 166 with TRANSMISSION 724.2 up to model year 2016 N10 |
GF54.21-P-4157GR | |
| MODEL 166 with TRANSMISSION 724.2 as of model year 2016 Model 166 with TRANSMISSION 725.0 as of model year 2016 Model 292 with TRANSMISSION 725.0 N10 |
GF54.21-P-4157GN | ||
| Component description of transfer case control unit | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 430 (On & off-road package) N15/7 |
GF28.19-P-3200VGF | |
| Component description for trailer recognition control unit | MODEL 166 with TRANSMISSION 724.2 as of model year 2016 with CODE 550 (Trailer coupling) Model 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 550 (Trailer coupling) Model 292 with TRANSMISSION 725.0 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GN | |
| Component description for Electronic Stability Program control unit | MODEL 166 (except 166.063) with TRANSMISSION 725.0 as of model year 2016 Model 292 with TRANSMISSION 725.0 N30/4 |
GF42.45-P-5119GN | |
| MODEL 166.063 with TRANSMISSION 725.0 as of model year 2016 N30/4 |
GF42.45-P-5119GRH | ||
| AIRMATIC control unit, component description | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 489 (AIRMATIC) Model 292 with TRANSMISSION 725.0 with CODE 489 (AIRMATIC) N51/3 |
GF32.22-P-5110GN | |
| Lower control panel control unit, component description | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 Model 292 with TRANSMISSION 725.0 N72, N72s30, N72s31 |
GF54.21-P-6060GN | |
| Offroad operating panel, component description | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 with CODE 430 (On & off-road package) N723, N72/3s1 |
GF54.21-P-3520VGF | |
| Component description for the electronic ignition lock control unit | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 Model 292 with TRANSMISSION 725.0 N73 |
GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 Model 292 with TRANSMISSION 725.0 N80 |
GF54.21-P-6051GN | |
| Component description for fully integrated transmission control unit | MODEL 166 with TRANSMISSION 725.0 as of model year 2016 Y38n4 |
GF27.60-P-5165ANF | |
| MODEL 292 with TRANSMISSION 725.0 Y38n4 |
GF27.60-P-5165ANJ | ||
| MODEL 166 with TRANSMISSION 724.204 Y38n4 |
GF27.60-P-5165GRH | ||
| Table of contents for function description of transfer case (VG) | GF28.10-P-0999VGF |
