Power Flow In 2nd Gear, Function - GF27.10-P-3012ANN
Transmission 722.905 in model 166 as of model year 2016
Transmission 722.905 in model 292

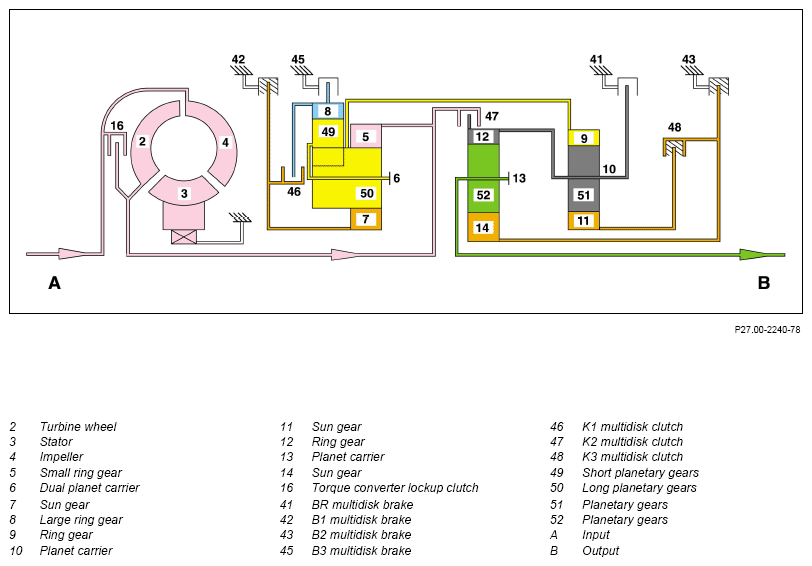

2nd gear power flow
Function requirements for power flow in 2nd gear, general
- Circuit 15 ON
- Internal combustion engine running
Power flow in 2nd gear, general
The following multidisk brakes and multidisk clutches are engaged:
- Multidisk brake B1 (42)
- Multidisk brake B2 (43)
- Multidisk clutch K3 (48)
Power flow in 2nd gear takes place via the following gear sets:
- Ravigneaux gear set
- Rear single planetary gear set
- Front single planetary gear set
Ravigneaux gear set
The small ring gear (5) is driven via the transmission input shaft. The long planetary gears (50) roll over the stalled sun gear (7) and transmit the increased torque and reduced rotational speed as a result to the dual planet carrier (6).
Rear single planetary gear set
The ring gear (9) rotates at the same speed due to the mechanical connection to the dual planet carrier (6). The planetary gears (51) roll over the stalled sun gear (11) and transmit the rotary motion to the planet carrier (10).
Front single planetary gear set
The ring gear (12) has a mechanical connection to the planet carrier (10) and rotates at the same speed. The planetary gears (52) roll on the stalled sun gear (14) and transfer the subsequently increased torque and reduced rotational speed to the main shaft via the planet carrier (13). The main shaft therefore rotates in the direction of engine rotation with reduced input speed.
