Power Flow In 5th Gear, Function - GF27.10-P-3015ANN
Transmission 722.905 in model 166 as of model year 2016
Transmission 722.905 in model 292

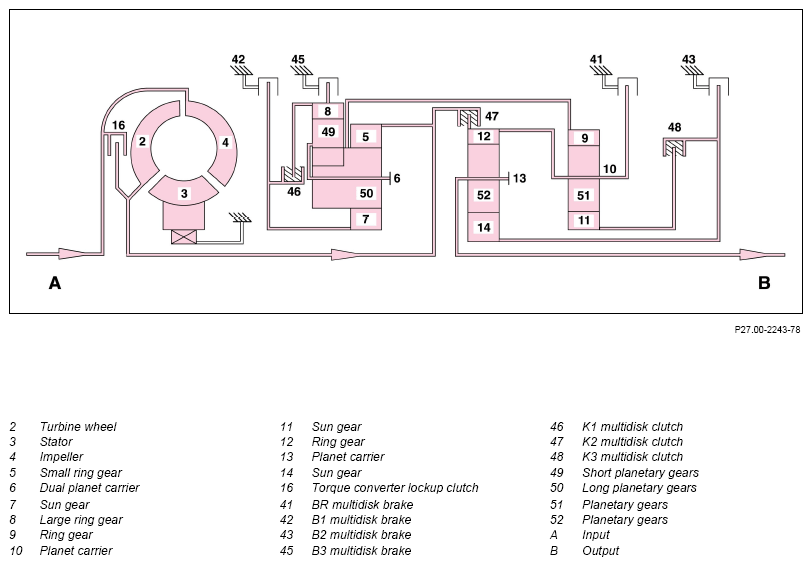

5th gear power flow
General function requirements for power flow in 5th gear
- Circuit 15 ON
- Internal combustion engine running
General power flow in 5th gear
The following multidisk clutches are engaged:
- Multidisk clutch K1 (46)
- Multidisk clutch K2 (47)
- Multidisk clutch K3 (48)
In 5th gear, power flows from the transmission input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the main shaft. This rotates at the input speed in the direction of engine rotation.
| Overview of system components for automatic transmission (AT) | GF27.10-P-9992ANN |
