Overview Of System Components For Supplemental Restraint System (SRS) - GF91.60-S-9994TRF

Model 447

With Code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

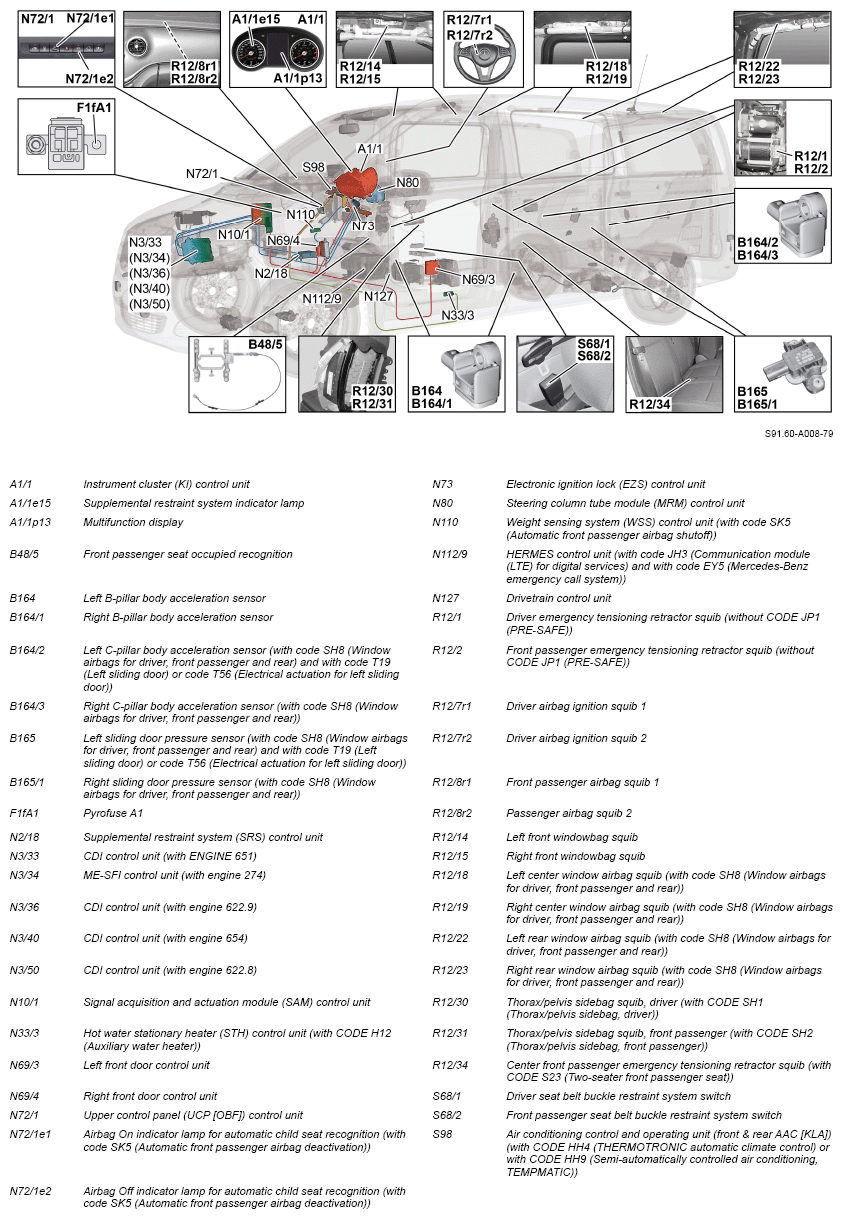

Illustration shows MODEL 447.8

Courtesy of MERCEDES-BENZ USA

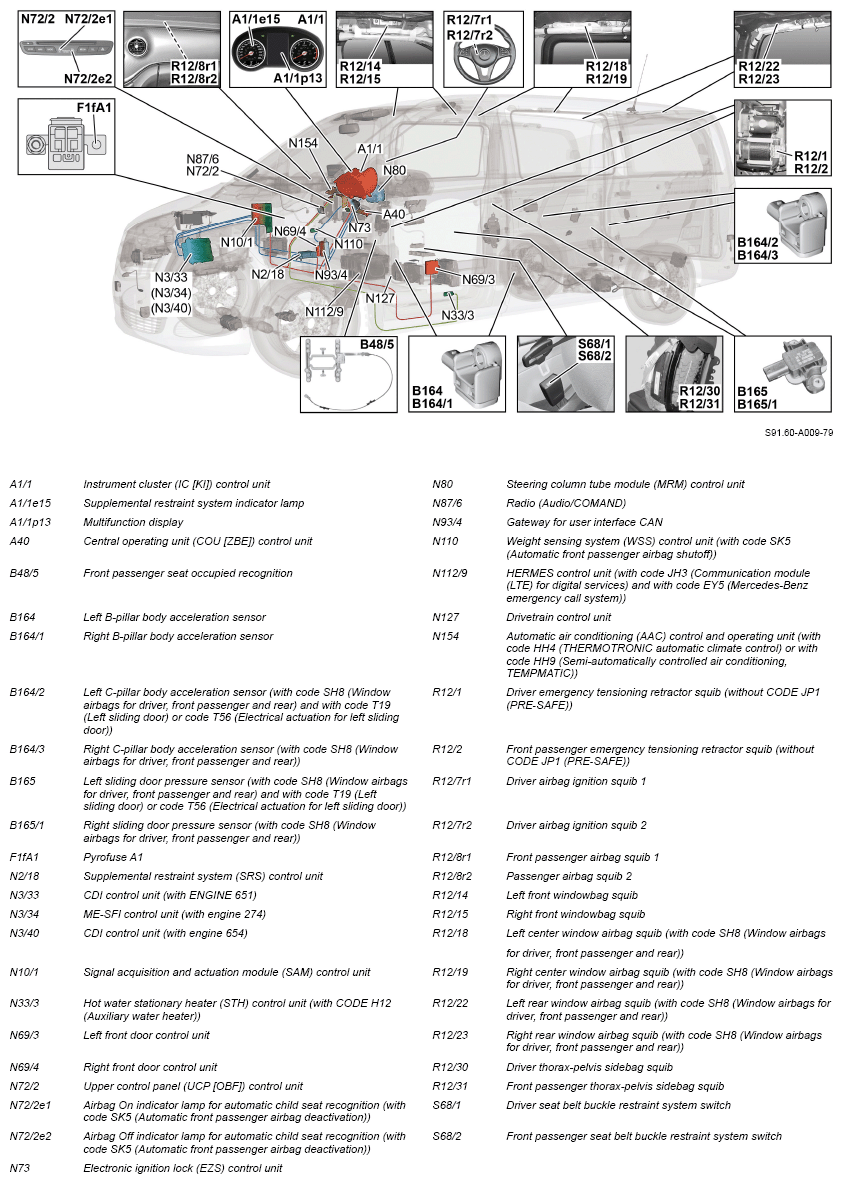

Shown is model 447.6/7

	Supplemental restraint system control unit, component description	Model 447 with code XM0 (Facelift) except code XM7 (MOPF II) N2/18	GF91.60-S-4080TRA
	Table of contents for function description of Supplemental Restraint System (SRS) function		GF91.60-S-0994TRF
