Remove/Install Regulator For Alternator - AR15.40-S-5760EG

Model 447, 448 with engine 274

Model 907 with engine 274

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove the alternator (G2).	Model 907 with engine 274	AR15.40-D-5032TSC
		Model 447, 448 with engine 274	AR15.40-S-5032EG

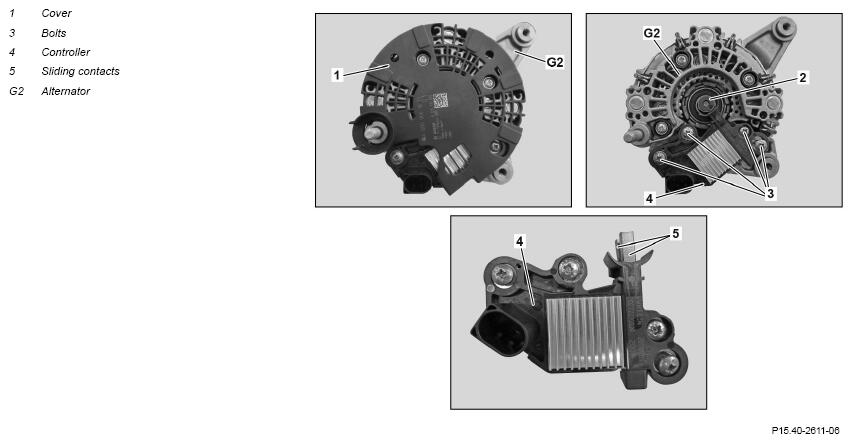

2	Remove cover (1).
3	Remove screw/bolts (3).	Bolt, regulator to alternator	*BA15.40-Z-1004-01KOX
4	Remove controller (4).	Do not damage sliding contacts (5). Malfunctions may occur otherwise.
5	Install in the reverse order.

ALTERNATOR

Number	Designation			Engine 274 in model 907	Engine 274 in model 447, 448
BA15.40-Z-1004-01KOX	Bolt, regulator to alternator	M4x13	Nm	2	2
		M4x19	Nm	3	3
