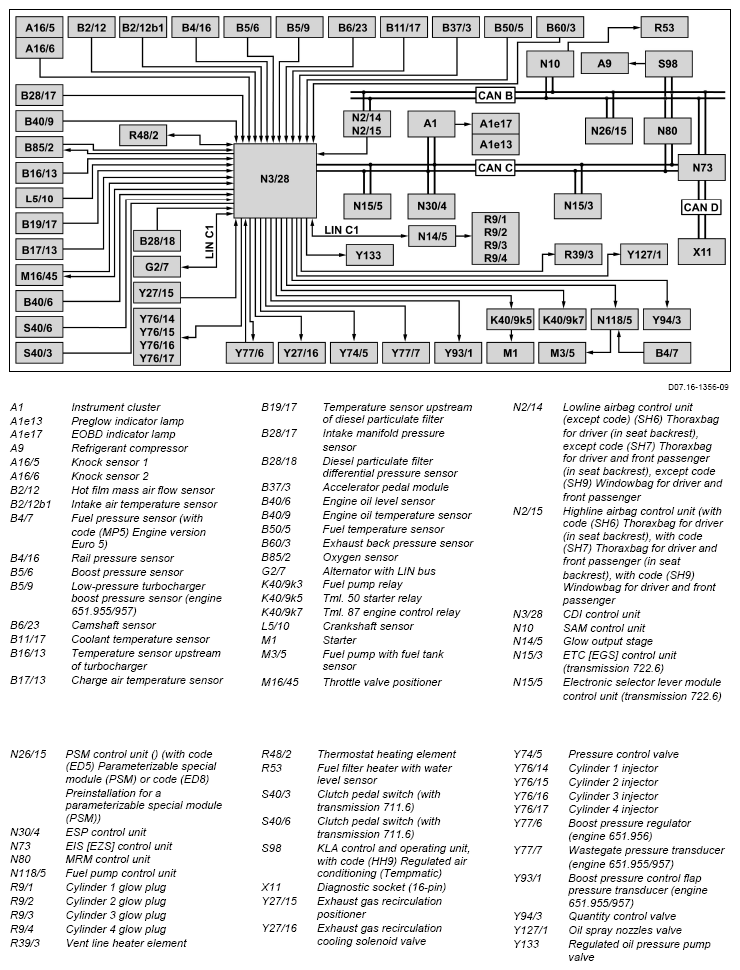

Common Rail Diesel Injection (CDI), Block Diagram - GF07.16-D-0001-08HD
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
