Remove/Install Exhaust Back Pressure Sensor - Ar07.04-D-0009WE
ENGINES 651.955/956/957 in MODEL 906
| Remove/install | |||
| 1 | Remove engine trim panel | - | AR01.10-D-2405WE |

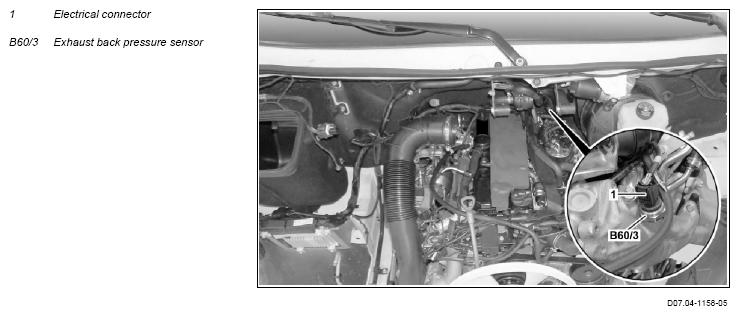

| 2 | Disconnect electrical connector (1) | - | - |
| 3 | Unscrew exhaust back pressure sensor (B60/3) | Socket wrench 12-point gotis://A_02_01.0 |
- |
| - | - | *BA14.20-N-1012-01H | |
| 4 | Install in the reverse order | ||
| - | Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 5 | Perform an engine test run and check exhaus system in the area of exhaust back pressure sensor (B60/3) for leaks | - | - |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA14.20-N-1012-01H | Exhaust gas recirculation pressure sensor | Nm | 25 |
