Remove/Install Exhaust Gas Temperature Probe - Ar07.04-D-0071WE
ENGINES 651.955/956/957 in MODEL 906

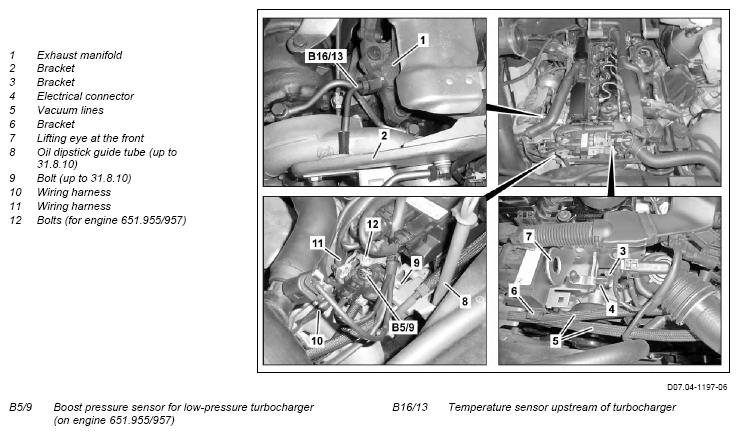

Shown on vehicle with engine 651.957 to 31.8.10
| Remove/install | |||
| 1 | Remove engine trim panel | - | AR01.10-D-2405WE |
| 2 | Remove air intake pipe | - | AR09.10-D-8131WE |
| 3 | Unclip vacuum lines (5) from bracket (6) | - | - |
| 4 | Unlock electrical connector (4) and remove from bracket (3) | - | - |
| 5 | Disconnect electrical connector (4) | - | - |
| 6 | Unscrew bolt (9) from oil dipstick tube (8) | In vehicles up to 31.8.10 | - |
| 7 | Unscrew bolt (12) from low-pressure turbocharger boost pressure sensor (B5/9) and remove low-pressure turbocharger boost pressure sensor (B5/9) from front lifting eye (7) | On engine 651.955/957 | - |
| 8 | Expose electric wiring harness (11) | - | - |
| 9 | Expose electrical wiring harness (10) from temperature sensor upstream of turbocharger (B16/13) | - | - |
| 10 | Guide electrical wiring harness (10) out below front lifting eye (7) | - | |
| 11 | Unscrew temperature sensor upstream of turbocharger (B16/13) from exhaust manifold (1) | - | |
| - | - | *BA07.04-N-1011-01B | |
| - | - | Hot lubricating paste | *BR00.45-Z-1005-06A |
| 12 | Unscrew temperature sensor upstream of turbocharger (B16/13), guide electrical wiring harness (10) out below bracket (2) | - | - |
| 13 | Install in the reverse order | ||
SENSORS
| Number | Designation | Engine 651 | |
|---|---|---|---|
| BA07.04-N-1011-01B | Exhaust temperature sensor on exhaust manifold | Nm | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
