Remove/Install Intake Manifold Pressure Sensor - Ar07.04-D-0100SD

ENGINE 651 in MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install

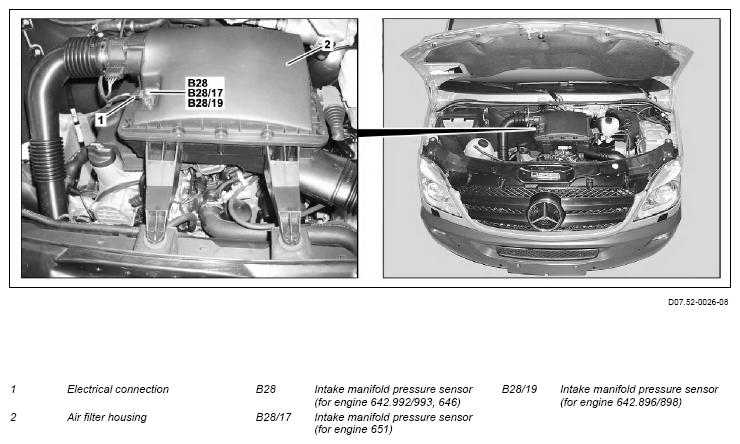

1	Disconnect electrical connection (1) at intake manifold pressure sensor (B28, B28/17 or B28/19)
2	Remove screw/bolts on intake manifold pressure sensor (B28, B28/17 or B28/19)
3	Pull the intake manifold pressure sensor (B28, B28/17 or B28/19) out of the air filter housing (2)	Check O-ring and replace if necessary.
4	Install in the reverse order
