Remove/Install Vacuum Reservoir - Ar07.09-D-0001WE

ENGINES 651.955/957 in MODEL 906

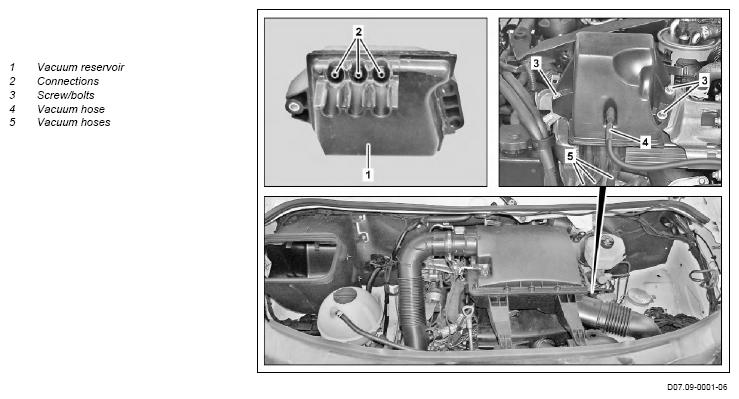

Shown on vehicle up to 31.8.10 and without code (MS3) Emissions level Euro 3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach vacuum hose (4) at vacuum reservoir (1)	Check vacuum hose (4) for damage; replace if necessary.	-
2	Mark vacuum hoses (5) relative to connectors (2)	-	-
3	Remove vacuum hoses (5) from connectors (2)	For vehicles with code (MS3) Emissions level Euro 3 a plug is installed on the center connector (2) which does not need to be removed. Check vacuum hoses (5) for damage; replace if necessary. Wet vacuum hoses (5) with lubricant. Antifriction agent	*BR00.45-Z-1010-06A
4	Remove screws/bolts (3)	For vehicles as of 1.9.10 or with code (MS3) Emissions level Euro 3 the oil dipstick guide tube is also fastened using the front screw/bolt (3).	*BA07.09-N-1001-01A
5	Remove vacuum reservoir (1)	-	-
6	Detach plug from center connector (2)	When replacing the vacuum reservoir (1) for code (MS3) Emissions level Euro 3.	-
7	Install in the reverse order
