Remove/Install Bracket For Vacuum Reservoir - Ar07.09-D-0002WE
ENGINES 651.955/957 in MODEL 906 with CODE (MS3) Emissions level Euro 3
| Remove/install | |||

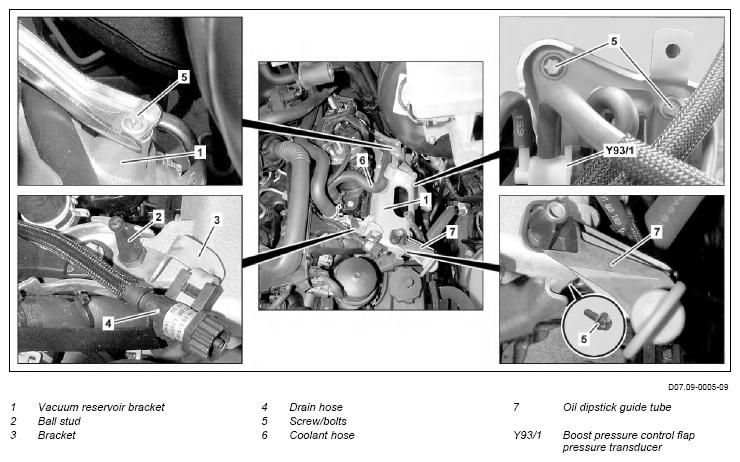

| 1 | Remove vacuum reservoir | - | AR07.09-D-0001WE |
| 2 | Disconnect electrical connector from boost pressure control flap pressure transducer (Y93/1) | - | - |
| 3 | Remove ball stud (2) and lay bracket (3) with drain hose (4) to the side | - | - |
| 4 | Remove screw/bolts (5) | *BA14.20-N-1027-01H | |
| 5 | Release coolant hose (6) from the vacuum reservoir bracket (1) | - | - |
| 6 | Remove vacuum reservoir bracket (1) | - | |
| 7 | Install in the reverse order | ||
Exhaust gas recirculation
BA14.20-N-1027-01H
| Number | Designation | Engine 651 in model 906 | |
|---|---|---|---|
| BA14.20-N-1027-01H | Screw/bolt, exhaust gas recirculation cooler/vacuum reservoir bracket to support brace | Nm | 9 |
