Rear Entertainment System Controller Unit, Component Description - GF82.90-P-4021LF

Model 222

up to model year 2018

with code 864 (Rear compartment entertainment package)

Shown on model 222.0, except code 224 (Design individual rear seat system)

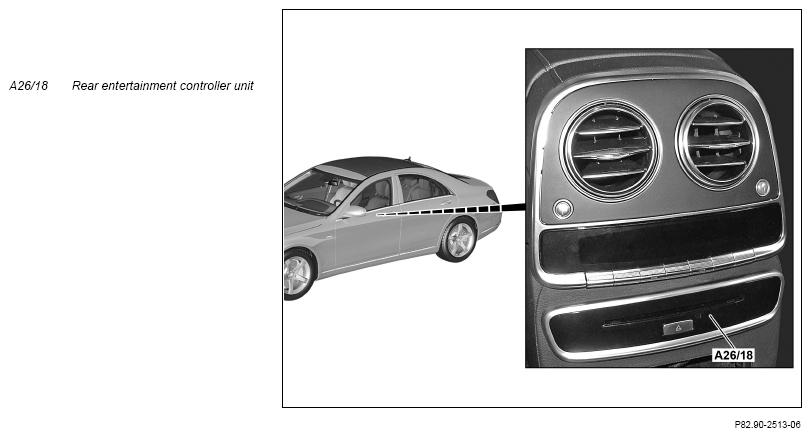

Fig 1: Rear Entertainment System Controller Unit Components Location - Model 222 Up To Model Year 2018 With Code 864 (Shown On Model 222.0, Except Code 224)

Courtesy of MERCEDES-BENZ USA

Location

In vehicles with code 224 (Design individual rear seat system), the Rear Seat Entertainment system controller unit is located under the rear shelf behind a flap.

In vehicles except code 224 (Design individual rear seat system), the Rear Seat Entertainment system controller unit is freely accessible between the seats in the front and the seats in the rear above the propeller shaft tunnel.

Tasks

The Rear Seat Entertainment System controller unit does the following:

Central control unit for Rear Seat Entertainment system
Receive signals
Processing signals
Transmitting signals

Central control unit for Rear Seat Entertainment system

The Rear Seat Entertainment system controller unit can realize the following applications:

Playback, search and management of media: integrated rear single DVD drive, rear AUX connection electrical connector (X39/1), rear USB electrical connector 1 (X115/2-1), rear USB electrical connector 2 (X115/2-2), media sources for COMAND controller unit (A40/3), Bluetooth® audio (with code 855 (Telephony in rear) or with code 856 (Business telephony in rear))
Telephony (with code 855 (Telephony in rear) or with code 856 (Business telephony in rear))
Extended navigation functions: "Drive Show" (automated picture sequence with information on current route); Mercedes-Benz online service "Google Maps" with option to forward routes directly to the navigation processor of the COMAND controller unit; access options to the Mercedes-Benz "Travelguide" (accessories)
Internet
Comfort functions for seats in rear (equipment-specific)

Receive signals

Direct lines
Media Oriented System Transport (MOST)

Direct lines

Power supply via circuit 30g and circuit 31
Electrical wake-up for MOST
Rear AUX connection electrical connector
Rear USB electrical connector 1
Rear USB electrical connector 2
Rear Bluetooth® antenna (for telephony or Bluetooth® audio, with code 855 (Telephony in rear) or with code 856 (Business telephony in rear))
Low voltage differential signal (LVDS) line from the tuner unit (A90/4) (with code (865) TV tuner)
Left rear hands-free system microphone (B25/14) (with code 855 (Telephony in rear) or with code 856 (Business telephony in rear))
Right rear hands-free system microphone (B25/15) (with code 855 (Telephony in rear) or with code 856 (Business telephony in rear))

Media Oriented System Transport (MOST)

The Rear Seat Entertainment system controller unit is a MOST subscriber. The Rear Seat Entertainment system controller unit receives from the COMAND controller unit as a gateway to the telematics CAN (CAN A) the control communication with the left rear display (A40/5) and the right rear display (A40/6) as well as, depending on the request, audio, video, Internet or telephone signals.

Processing signals

The audio and picture signals form the available media sources are processed, and, where necessary converted, and prepared for output.

Transmitting signals

Direct lines
Integrated Kleer® radio interfaces
MOST

Direct lines

Low voltage differential signaling line for digital audio and picture signals to left rear display
Low voltage differential signaling line for digital audio and picture signals to right rear display
Power supply and control signals to the rear USB electrical connector 1 and rear USB electrical connector 2
Rear Bluetooth® antenna (for telephony or Bluetooth® audio, with code 855 (Telephony in rear) or with code 856 (Business telephony in rear))
Wake-up to rear handset cradle (A34/13) (with code 855 (Telephony in rear) or with code 856 (Business telephony in rear) or to rear mobile phone contact plate (X237/2) (with code 856 (Business telephony in rear))

Integrated Kleer® radio interfaces

Audio signal to radio frequency headphones (H8/3)

MOST

The Rear Seat Entertainment system controller unit sends, e.g. the following signals over MOST to the COMAND controller unit

Audio, video, Internet and telephone signals when requested in the telematics network
Control communication for the left rear display and the right rear display (gateway to telematics CAN)
Seat adjustments (comfort functions, equipment-specific) for seats in rear (gateway to user interface CAN (CAN HMI))

Structure

The Rear Seat Entertainment system controller unit is equipped with 2 integrated Kleer® radio interfaces as well as an integrated DVD drive.

The DVD drive is a single-slot drive. In addition to DVD Video and audio media, CD audio media and MP3 files can also be played.

Furthermore, media protected by the latest copy protection systems and recorded blanks (CD R/RW; DVD-R, DVD-RW; DVD+R,

DVD+RW) can be played. The DVD drive has a "DVD Disk Auto Detect" function.

Variants

The Rear Seat Entertainment system controller unit is installed in the following 2 design variants:

With CODE 224 (Design individual rear seat system)
Except CODE 224 (Design individual rear seat system)

The Rear Seat Entertainment system controller unit is installed in the following 2 equipment variants:

With code 855 (Telephony in rear) or with code 856 (Business telephony in rear)
Except code 855 (Telephony in rear) and except code 856 (Business telephony in rear)

Rear Seat Entertainment system control unit wiring diagram

A26/18

PE82.90-P-2103-97SEA
